🚨 Industry Pain Points
In modern navigation, control, and motion sensing applications, users often encounter critical challenges:
- Signal drift and accuracy degradation under temperature variation
- Performance instability in harsh vibration or dynamic environments
- Measurement errors caused by installation misalignment
- Lack of real-time compensation for nonlinear sensor behavior
- Insufficient reliability of raw MEMS sensor output without processing
These limitations reduce system precision and affect overall control performance in UAVs, robotics, and industrial systems.
⚙ Product Advantages
This MEMS inertial sensing product is engineered to overcome these challenges through advanced hardware and algorithm integration:
- ✔ Built on high-precision MEMS gyroscope and temperature sensor integration
- ✔ Embedded digital signal processing (DSP) circuit for real-time data handling
- ✔ Flexible connection technology for improved mechanical reliability
- ✔ Built-in full-temperature compensation algorithm for stability across wide temperature ranges
- ✔ Installation misalignment angle compensation for improved accuracy
- ✔ Nonlinear error compensation to enhance measurement precision
- ✔ Maintains excellent performance in static, dynamic, and harsh environments
- ✔ Outputs high-speed, stable angular rate data via RS-422 interface
🚁 Product Applications
This IMU sensor is widely used in precision motion and navigation systems, including:
- UAV flight control systems
- Autonomous navigation and robotics
- Industrial motion control systems
- Marine and ship navigation equipment
- Stabilization platforms and gimbals
- Aerospace and defense measurement systems
⭐ Why Choose Us
- Advanced MEMS integration with industrial-grade reliability
- Multi-layer compensation algorithms for high-precision output
- Strong resistance to vibration, temperature variation, and dynamic interference
- High-speed RS-422 communication for stable data transmission
- Designed for long-term stability in demanding mission environments
- Suitable for both commercial and professional-grade navigation systems
We provide reliable inertial sensing solutions that ensure accuracy, stability, and performance in critical applications.
❓ Frequently Asked Questions (FAQ)
Q1: Does the sensor maintain accuracy in high temperature environments?
Yes, it includes full temperature compensation algorithms to ensure stable performance.
Q2: Can it be used in high-vibration environments?
Yes, it is designed to maintain accuracy under dynamic and harsh conditions.
Q3: What communication interface does it use?
It uses a high-speed RS-422 serial interface for reliable data output.
Q4: Does it support error compensation?
Yes, it includes installation misalignment and nonlinear compensation algorithms.
Q5: What type of data does it output?
It outputs calibrated and compensated angular rate measurement data.
| Parameter | unit | fundamental form |
| Measurement range (customizable) | ° /s | ±500 |
| Zero-level offset | ° /h | 180 |
| Zero-pitch instability (@ALLAN variance) | ° /h | 5 |
| Zero offset stability (10-second smoothing, 1σ, room temperature) | ° /h | 10 |
| Zero bias repeatability | ° /h | 20 |
| Zero bias error across the entire temperature range | ° /h | 72 |
| random walk | ° / √ h | 0.5 |
| Zero-zero acceleration sensitivity | ° /h/g | 5 |
| resolution ratio | ° /s | 0.01 |
| Output noise (half-maximum) | ° /s | 0.4 |
| tape width | Hz | 125 |
| Nonlinear scaling factor | ppm | 100 |
| Scale factor repeatability | ppm | 100 |
| cross coupling | % | 0.2 |
| Stabilization start time | s | 1 |
| Data update rate | Hz | 2000 |
| voltage | V | 5±0.25 |
| starting current | mA | 100 |
| steady state power consumption | W | 0.5 |
| ripple wave | mV | 100 |
| working temperature | ℃ | -45~85 |
| storage temperature | ℃ | -55~105 |
| weight | g | 10 |

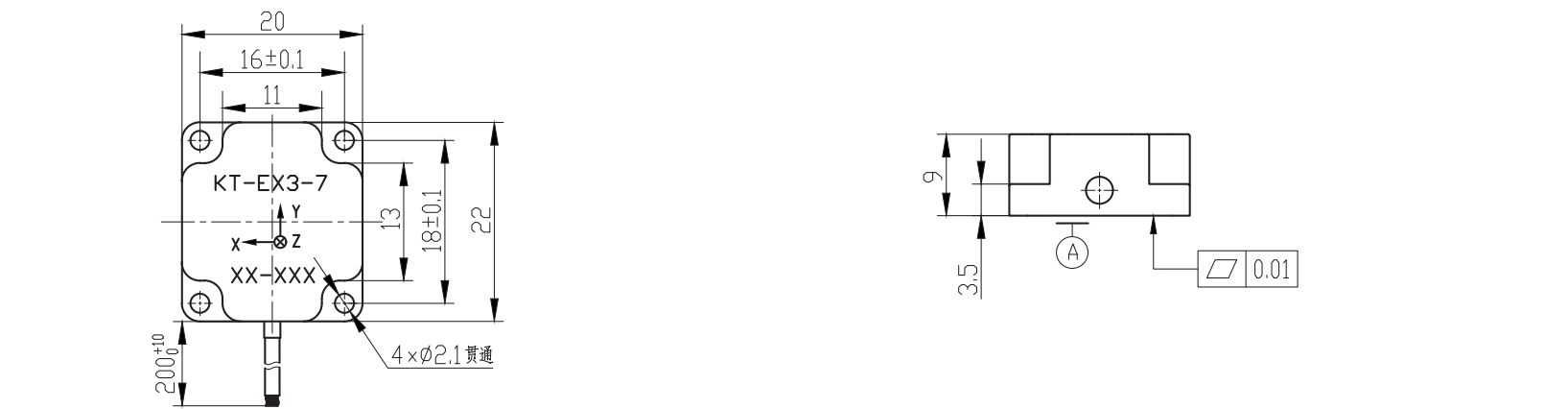

| size | mm | 22*20*9 |
| Interface | — | RS-422 |
