Product Features
The MP-IMU2301 provides default outputs of:
- 3-axis angular velocity
- 3-axis linear acceleration
- System temperature
Applications
- Missile guidance and control
- Radar / infrared antenna and pod stabilization platforms
- Seeker stabilization
- Fire control systems
- Satellite attitude control
- UAV attitude reference and navigation control
- Vehicle attitude control and measurement
- Harbor measurement systems
- Autonomous driving
- Submarine and shipboard navigation systems
Performance Specifications
| Parameter | Specification |
| Gyroscope | |
| Measurement Range | –400°/s ~ +400°/s |
| Full-Temperature Bias | ≤ 30°/h |
| Bias Instability | ≤ 0.3°/h |
| Bias Stability (full temp, 1σ, 10s) | ≤ 3°/h |
| Bias Repeatability (full temp, 1σ) | ≤ 9°/h |
| Bias Repeatability (short-term, 1σ) | ≤ 3°/h |
| Scale Factor Nonlinearity | ≤ 150 ppm |
| Bandwidth | ≥ 250 Hz |
| Angle Random Walk | ≤ 0.15°/√h |
| Accelerometer | |
| Measurement Range | –10 g ~ +10 g |
| Full-Temperature Bias | ≤ 3 mg |
| Bias Stability (full temp, 1σ, 1s) | ≤ 0.15 mg |
| Bias Repeatability (1σ) | ≤ 0.15 mg |
| Scale Factor Nonlinearity | ≤ 500 ppm |
| Bandwidth | 100 Hz |
| System | |
| Data Update Rate (adjustable) | 200 Hz |
| Electrical Interface | RS422 / RS232 |
| Power Supply | 5 V ± 0.2 V |
| Power Consumption | < 2 W |

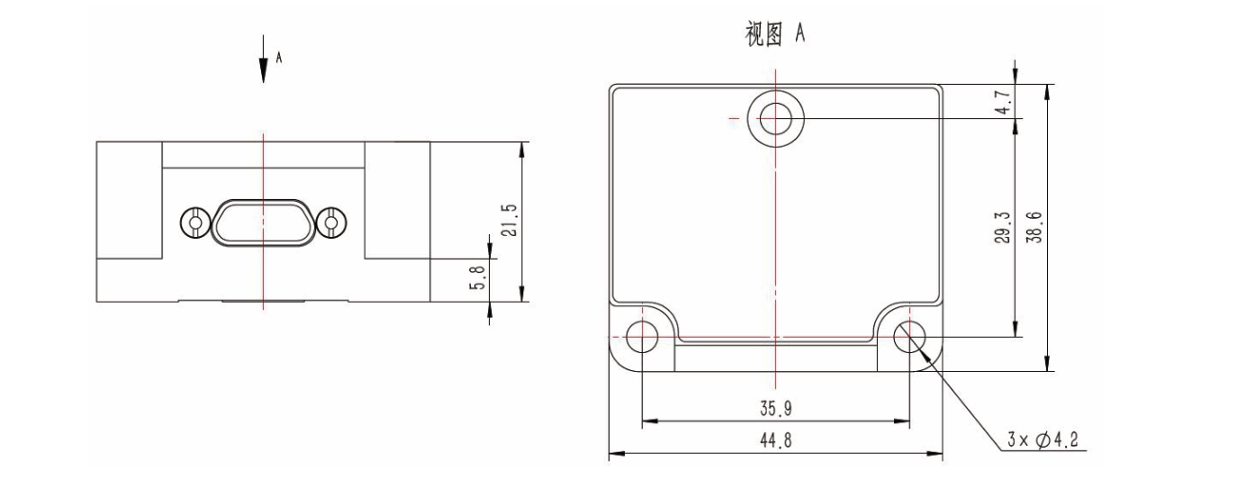

| Dimensions | 44.8 mm × 38.6 mm × 21.5 mm |
| Weight | < 60 g |
| Color | Black |
| Operating Temperature | –40 °C ~ +80 °C |
| Storage Temperature | –55 °C ~ +85 °C |
Key Benefits
- High-performance MEMS gyroscope and accelerometer with excellent bias stability
- Fully calibrated across temperature range for consistent precision
- Compact, lightweight design for integration into UAVs, missiles, and robotics
- Rugged reliability in harsh aerospace and defense environments
- Supports real-time navigation and control with adjustable update rates
Q1: How easy is it to integrate the China Moneypro MP-IMU2301 into UAV or robotics systems?
A1: China Moneypro MP-IMU2301 MEMS inertial measurement unit is designed with a compact form factor (44.8 × 38.6 × 21.5 mm, < 60 g) and supports RS422/RS232 interfaces, making it straightforward to integrate into UAV autopilot systems, gimbal controllers, and robotic platforms without adding significant size or weight.
Q2: What makes China Moneypro MP-IMU2301 reliable for long-term missions?
A2: The IMU is fully temperature calibrated across –40°C to +80°C, including zero bias, scale factor, and misalignment corrections. This ensures stable gyroscope and accelerometer outputs during extended operations in both aerospace and industrial environments, making it one of the most reliable high precision IMUs in its class.
Q3: How does China Moneypro MP-IMU2301 manage power consumption for UAV applications?
A3: With a typical power consumption of < 2 W, China Moneypro MP-IMU2301 UAV navigation IMU is optimized for platforms where endurance is critical, such as drones, autonomous vehicles, and maritime systems. The low power draw helps maximize mission time while maintaining consistent performance.
Q4: Does China Moneypro MP-IMU2301 support high-frequency dynamic measurements?
A4: Yes. The system provides an adjustable data update rate up to 200 Hz with gyroscope bandwidth ≥ 250 Hz and accelerometer bandwidth 100 Hz. This enables precise tracking of fast maneuvers in UAVs, missile guidance systems, and robotics applications where high-frequency responsiveness is essential.
Q5: In what industries is China Moneypro MP-IMU2301 most widely used?
A5: China Moneypro MP-IMU2301 high accuracy IMU is trusted across multiple fields:
- Aerospace & Defense– missile guidance, seeker stabilization, UAV flight control
- Autonomous Vehicles– navigation, attitude control, safety systems
- Maritime– ship and harbor measurement systems
- Robotics & Industrial– motion control and dynamic tracking
- Satellite & Space– orbit and attitude management systems
