Product Features
Default outputs include:
- Roll angle
- Pitch angle
- 3-axis angular velocity
- 3-axis linear acceleration
- System temperature
Applications
- Inertial/satellite integrated navigation systems
- UAV and manned aircraft attitude reference/navigation control
- Radar / EO / IR antenna and pod stabilization platforms
- Missile and fire control guidance systems
- Vehicle and ship attitude measurement
- Mobile mapping and surveying
- Oil and gas drilling exploration
Performance Specifications
| Parameter | Specification |
| Gyroscope | |
| Measurement Range | –400°/s ~ +400°/s |
| Full-Temperature Bias | ≤ 1°/h |
| Bias Stability (1σ, 10s) | ≤ 0.3°/h |
| Bias Repeatability (1σ) | ≤ 0.3°/h |
| Scale Factor Nonlinearity | ≤ 100 ppm |
| Bandwidth | ≥ 200 Hz |
| Accelerometer | |
| Measurement Range | –10 g ~ +10 g |
| Full-Temperature Bias | ≤ 0.5 mg |
| Bias Stability (1σ, 1s) | ≤ 0.1 mg |
| Bias Repeatability (1σ) | ≤ 0.1 mg |
| Navigation Accuracy | |
| Alignment Time | ≤ 30 s |
| Roll Accuracy | ≤ 0.3° (1σ) |
| Pitch Accuracy | ≤ 0.3° (1σ) |
| System | |
| Data Update Rate | 100 Hz |
| Electrical Interface | RS422 / RS232 |
| Power Supply | 9 V ~ 36 V |
| Power Consumption | < 12 W |
| Weight | < 1 kg |

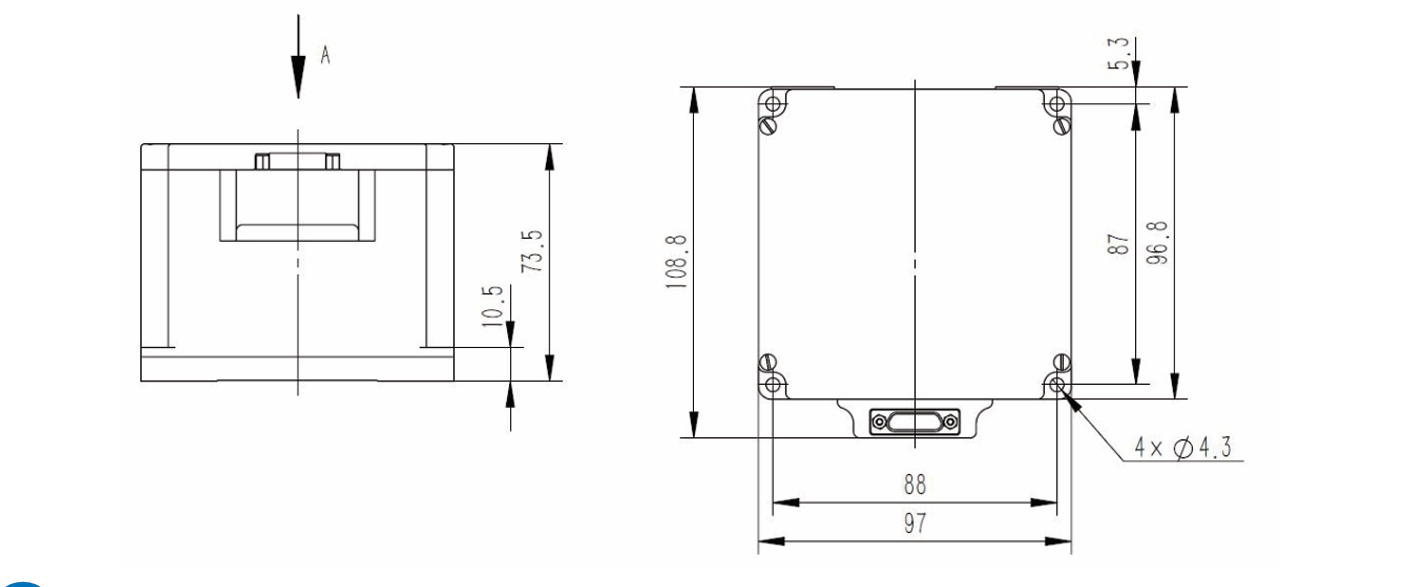

| Dimensions | 97 mm × 96.8 mm × 73.5 mm |
| Color | Silver |
| Operating Temperature | –40 °C ~ +70 °C |
| Storage Temperature | –55 °C ~ +85 °C |
Key Benefits
- High-accuracy fiber optic gyroscope modulewith roll/pitch angle outputs
- Fast alignment (≤ 30 s) for rapid deployment
- Advanced static/dynamic error compensation for reliable performance
- Rugged cylindrical design with wide temperature adaptability
- Wide input voltage range (9–36 V) and dual interface (RS422/RS232) for flexible integration
- Reliable operation in GNSS-denied environmentsand long-duration missions
Q1: How quickly can China Moneypro MP-VG0303A align for navigation tasks?
A1: China Moneypro MP-VG0303A fiber optic attitude measurement module achieves alignment within 30 seconds, enabling rapid deployment in field operations. This makes it especially valuable for UAV launches, mobile surveying vehicles, and emergency navigation systems where time-sensitive setup is critical.
Q2: What level of roll and pitch accuracy does China Moneypro MP-VG0303A provide?
A2: With roll and pitch accuracy better than 0.3° (1σ), China Moneypro MP-VG0303A ensures precise attitude reference under both static and dynamic conditions. This high precision supports aerospace, marine navigation, and industrial drilling applications, where even small errors in angle measurement can lead to large deviations.
Q3: How does China Moneypro MP-VG0303A maintain performance in harsh environments?
A3: Built with fiber optic gyroscope technology, China Moneypro MP-VG0303A is resistant to magnetic interference and operates reliably from –40 °C to +70 °C. Its rugged cylindrical design guarantees stable performance in desert exploration, maritime environments, and GNSS-denied missions.
Q4: What are the integration benefits of China Moneypro MP-VG0303A?
A4: The module offers RS422/RS232 dual interfaces and supports a 9–36 V wide voltage input, simplifying integration with different platforms. Its < 12 W power consumption and compact design (97 × 96.8 × 73.5 mm, < 1 kg) allow it to be embedded in surveying vehicles, UAV gimbals, and industrial navigation systems.
Q5: Which industries benefit most from using China Moneypro MP-VG0303A?
A5: China Moneypro MP-VG0303A is widely used in:
- UAVs and aircraftfor attitude reference and autopilot systems
- Mobile mapping and geospatial surveyingfor precision angle measurements
- Marine and ship navigationfor roll/pitch stabilization
- Oil and gas drilling systemsfor directional guidance
- Defense and aerospace platformsfor fast, reliable attitude control
