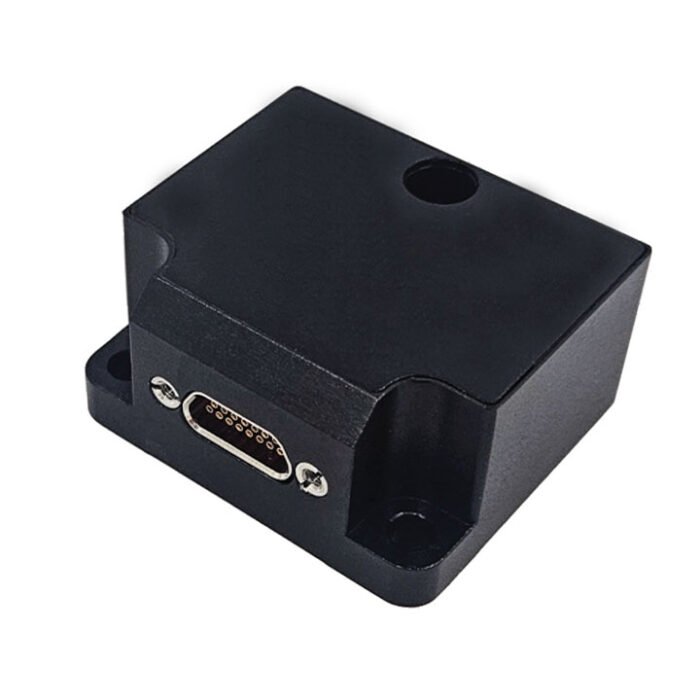

China Moneypro MP-VG0301D is a high-performance, cost-effective, compact, lightweight, and low-power vertical gyroscope inertial measurement unit. It measures key motion and attitude parameters of moving carriers, including roll, pitch, angular velocity, and acceleration, providing accurate data even under harsh conditions. With full temperature calibration and long-term stability, the MP-VG0301D ensures consistent and precise performance for demanding navigation and control applications.
Product Features
China Moneypro MP-VG0301D provides default outputs of:
- 3-axis angular velocity
- 3-axis linear acceleration
- System temperature
- Pitch angle
- Roll angle
Applications
- Manned/unmanned aerial vehicle (UAV) attitude reference and navigation control
- Radar / infrared / EO antenna and gimbal stabilization platforms
- Missile and seeker guidance systems
- Fire control systems
- Satellite and optical payload stabilization
- Vehicle attitude control and measurement
- Harbor measurement systems
- Electro-optical tracking and targeting
Performance Specifications
| Parameter | Specification |
| Navigation | |
| Alignment Time | ≤ 30 s |
| Pitch Angle Accuracy | ≤ 0.5° (1σ) |
| Roll Angle Accuracy | ≤ 0.5° (1σ) |
| Gyroscope | |
| Measurement Range | –400°/s ~ +400°/s |
| Full-Temperature Bias | ≤ 30°/h |
| Bias Instability | ≤ 0.3°/h |
| Bias Stability (full temp, 1σ, 10s) | ≤ 3°/h |
| Bias Repeatability (full temp, 1σ) | ≤ 9°/h |
| Bias Repeatability (short-term, 1σ) | ≤ 3°/h |
| Scale Factor Nonlinearity | ≤ 150 ppm |
| Bandwidth | ≥ 250 Hz |
| Angle Random Walk | ≤ 0.15°/√h |
| Accelerometer | |
| Measurement Range | –10 g ~ +10 g |
| Full-Temperature Bias | ≤ 3 mg |
| Bias Stability (full temp, 1σ, 1s) | ≤ 0.15 mg |
| Bias Repeatability (1σ) | ≤ 0.15 mg |
| Scale Factor Nonlinearity | ≤ 500 ppm |
| Bandwidth | 100 Hz |
| System | |
| Data Update Rate (adjustable) | 200 Hz |
| Electrical Interface | RS422 / RS232 |
| Power Supply | 5 V ± 0.2 V |
| Power Consumption | < 2 W |

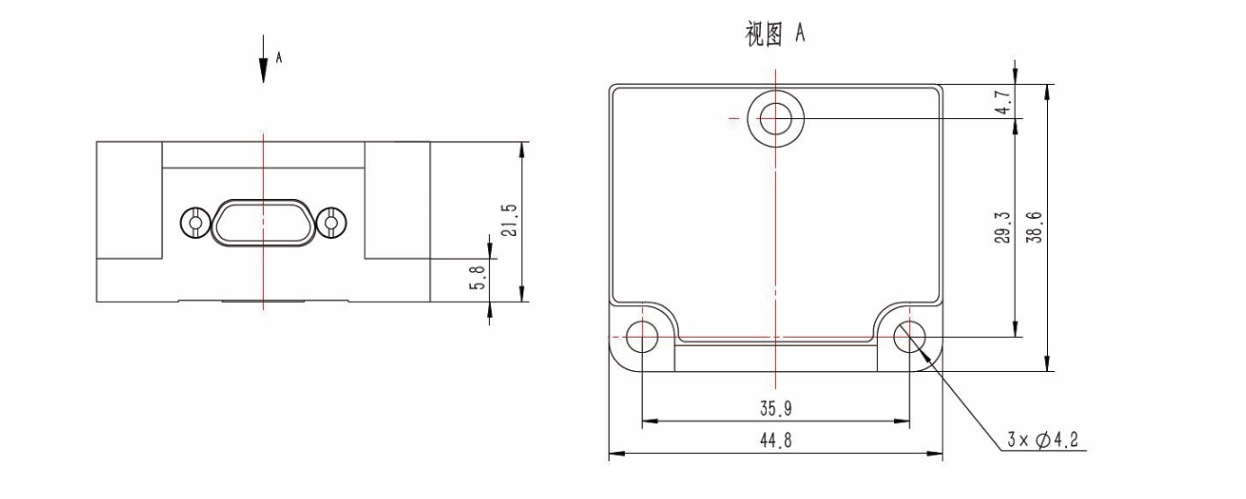

| Dimensions | 44.8 mm × 38.6 mm × 21.5 mm |
| Weight | < 60 g |
| Color | Black |
| Operating Temperature | –40 °C ~ +80 °C |
| Storage Temperature | –55 °C ~ +85 °C |
Key Benefits
- High-precision vertical gyroscope IMUwith roll/pitch angle outputs
- Fully temperature calibrated for accuracy in dynamic and harsh environments
- Compact and lightweight design for easy integration into UAVs, vehicles, and missile systems
- Low power consumption (< 2 W), ideal for long-duration missions
- Versatile applications in aerospace, defense, maritime, and industrial navigation
Q1: What makes China Moneypro MP-VG0301D different from other MEMS IMUs?
A1: Unlike standard MEMS IMUs, China Moneypro MP-VG0301D vertical gyroscope IMU provides direct roll and pitch angle outputs (≤ 0.5° accuracy, 1σ), in addition to 3-axis angular velocity and acceleration. This makes it especially suitable for attitude reference systems and UAV flight controllers where angle precision is critical.
Q2: How fast can China Moneypro MP-VG0301D initialize for navigation tasks?
A2: China MP-VG0301D offers a fast alignment time of ≤ 30 seconds, enabling quick startup in dynamic environments. This feature is highly valued in missile guidance, unmanned aerial vehicles, and maritime navigation systems, where rapid deployment is essential.
Q3: How does China Moneypro MP-VG0301D ensure stable attitude measurement over time?
A3: With gyroscope bias instability ≤ 0.3°/h and full-temperature calibration for bias, scale factors, and misalignment, China Moneypro MP-VG0301D high precision IMU maintains reliable performance for long-duration missions, even in harsh aerospace and defense environments.
Q4: Is China Moneypro MP-VG0301D suitable for low-power platforms like UAVs?
A4: Yes. The unit consumes less than 2 W, making it ideal for battery-powered UAVs, unmanned ground vehicles, and portable optical tracking systems. The compact size (44.8 × 38.6 × 21.5 mm) and lightweight design (< 60 g) further support integration into space-constrained systems.
Q5: What industries benefit most from using China Moneypro MP-VG0301D vertical gyroscope?
A5: China Moneypro MP-VG0301D vertical gyroscope IMU is widely used in:
- UAV navigation sensorsand autopilot systems
- Missile and seeker guidancewith fast alignment
- Radar/EO/IR antenna stabilization platforms
- Vehicle and ship attitude reference systems
- Electro-optical tracking and fire control applications
