Key Features
1. Fully Autonomous Workflow
- Precision Takeoff/Landing: RTK + vision positioning (<30cm error).
- Smart Charging: 75 min (20–100%) with overcurrent/temperature protection.
- AI Inspection: Automated route planning, target tracking, and defect detection.
2. Industrial-Grade Design
- Materials: Aircraft-grade aluminum + cold-rolled steel.
- Dimensions: 3,365 × 2,895 × 1,510 mm (closed).
- Weight: <1,680 kg (modular deployment).
- Environmental Resistance:
- Operating Temp.: -20°C to 65°C.
- Weatherproof: Integrated wind/rain/humidity sensors + lightning rods.
3. Safety & Monitoring
- 24/7 Surveillance: Internal/external cameras + smoke/temperature sensors.
- Emergency Protocols: UPS backup power, circuit breakers, and voice alerts.
4. Compatibility & Power
- Drone Wheelbase: Supports up to 1,650mm (hexacopters).
- Power Supply: 220V AC (1,800W standard / 4,000W peak).
- Networking: 4G/5G + Ethernet for seamless cloud integration.
Technical Specifications
| Category | Details |
|---|---|
| Hangar Type | Rechargeable, temperature-controlled (hot/cold AC) |
| Response Time | ≤3 min (ramp elevator to takeoff position) |
| Weather Station | Real-time wind speed/direction, rain, temp. (1,150×415×2,500 mm) |
| Anti-Interference | 100A/m magnetic field resistance |
| Data Transmission | 4G/5G or wired (RJ45) |
| Matching Drones | Industrial UAVs with 1,700mm wheelbase |

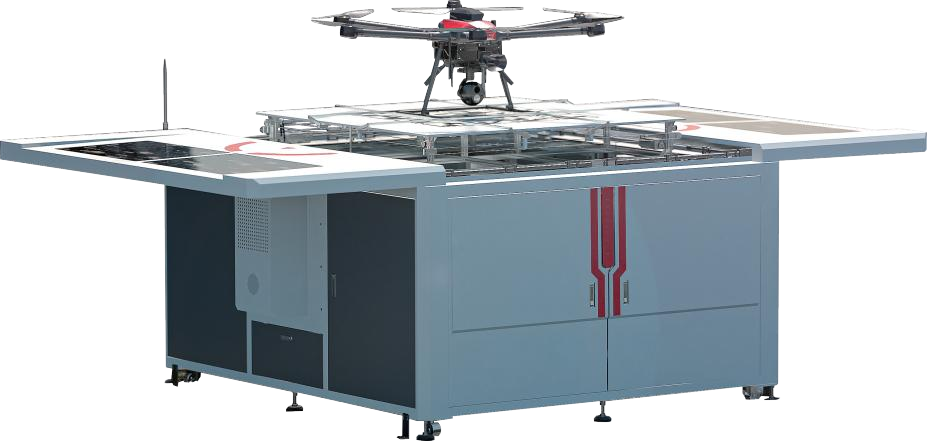

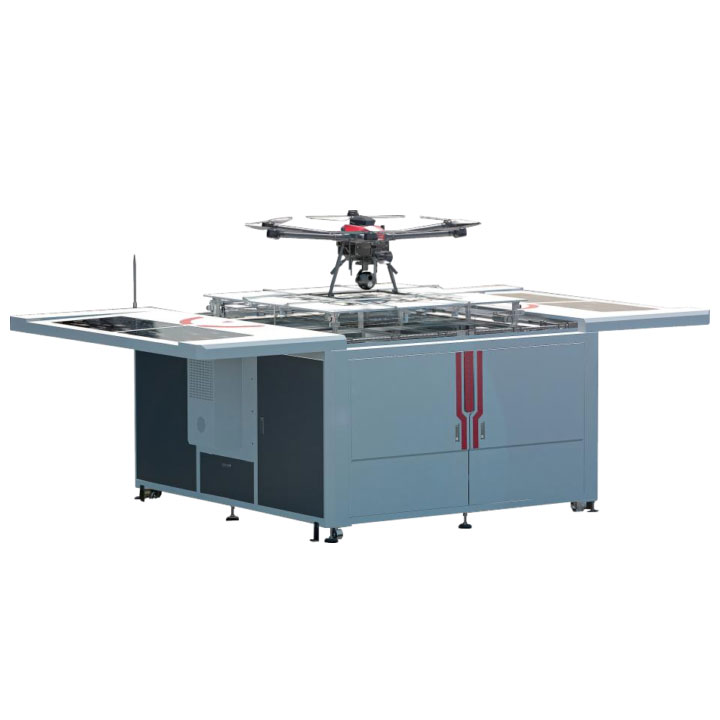

Why Choose Moneypro Multicopter Hangar?
- Labor Savings – Eliminates on-site pilots; cloud-controlled fleet.
- Extreme Adaptability – Operates in deserts, coasts, or Arctic zones.
- Rapid Deployment – 3-min readiness for emergency missions.
- Smart Charging – 50 min to 90% battery for high-frequency sorties.
Applications:
- Oil & Gas: Pipeline/offshore rig inspections.
- Security: Perimeter patrols for critical infrastructure.
- Agriculture: Large-scale crop monitoring.
Customizable for hyperspectral LiDAR, night vision, or 5G repeaters.
