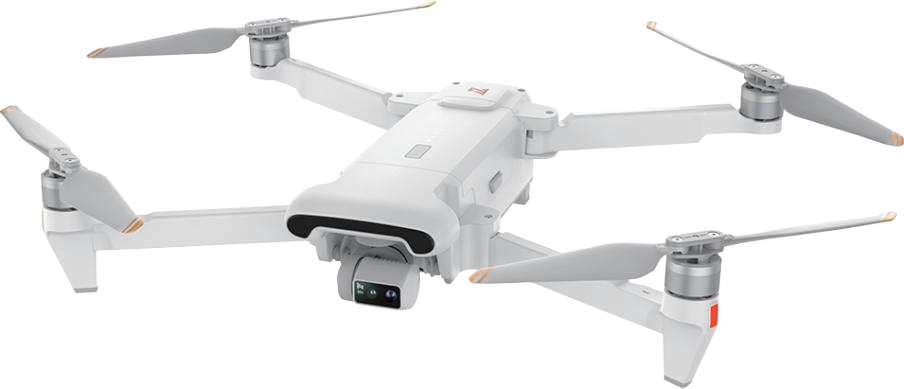

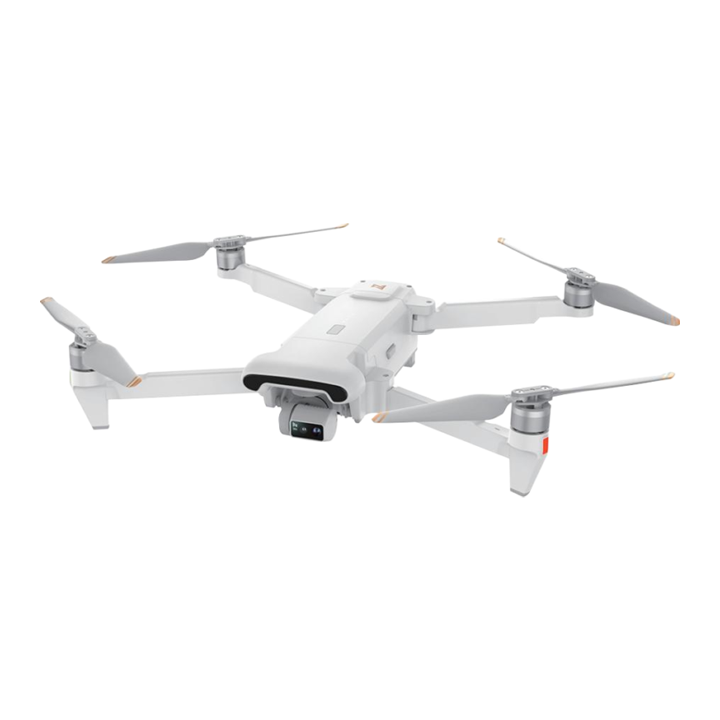

China Moneypro X8 Tele Max

Ultra-portable 832g drone featuring 4K/48MP imaging, 30x zoom, and tri-directional obstacle avoidance for precision missions.

Categories: ,
Description

Core Performance Specifications

  • Weight: ~832g (folded: 204×106×72.6mm)
  • Flight Time: 47min max | Speed: 18m/s | Wind Resistance: 12m/s
  • Altitude: 5,000m operating ceiling | GNSS: Quad-system (GPS+GLONASS+BeiDou+Galileo)
  • Hover Accuracy: ±0.3m horizontal | Expansion: 12-PIN data connector

Advanced Imaging Capabilities

  • Dual-Camera System:
    • Wide-Angle (48MP): 79° FOV, f/1.6 aperture, 5x digital zoom, 4K/60fps video
    • Telephoto (13MP): 30x zoom, 120mm focus, 21.5° FOV for long-range inspection
  • Professional Features:
    • 100Mbps bitrate, DNG/JPEG formats
    • ISO 100-26,500 (video), 1/8000s-2s shutter speed

Intelligent Safety Architecture

  • 360° Sensing:
    • Forward/Rear vision (0.5-20m detection)
    • Inferior wide-angle positioning
  • Autopilot Safety:
    • Auto-hover at ±0.5m accuracy
    • 6m/s effective avoidance speed
  • Durability: 0-40°C operating range

Industrial-Grade Applications

  • Inspections: Solar panels, bridges, power lines (telephoto zoom)
  • Mapping: High-res geotagged imaging + GNSS precision
  • Emergency Response: Compact deployment for search/surveillance
  • Research: Multi-sensor payload support via expansion port

Design Advantages

  • Ultra-Portable: 372mm wheelbase folds to palm-sized
  • Battery Efficiency: 29min hover time
  • Adaptive Airframe: 35° max tilt for agile maneuvers

China Moneypro Support Ecosystem

  • R&D Backing: Integration expertise from Moneypro Ltd (100+ drone camera models)
  • Global Logistics: Shenzhen port advantage for swift delivery
  • Payload Flexibility: Compatible with thermal imagers, multispectral sensors, and LIDAR



China Moneypro X8 Tele Max China Moneypro X8 Tele Max

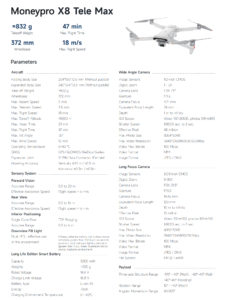

China-Moneypro-X8-Tele-Max-Download
