Core Advantage

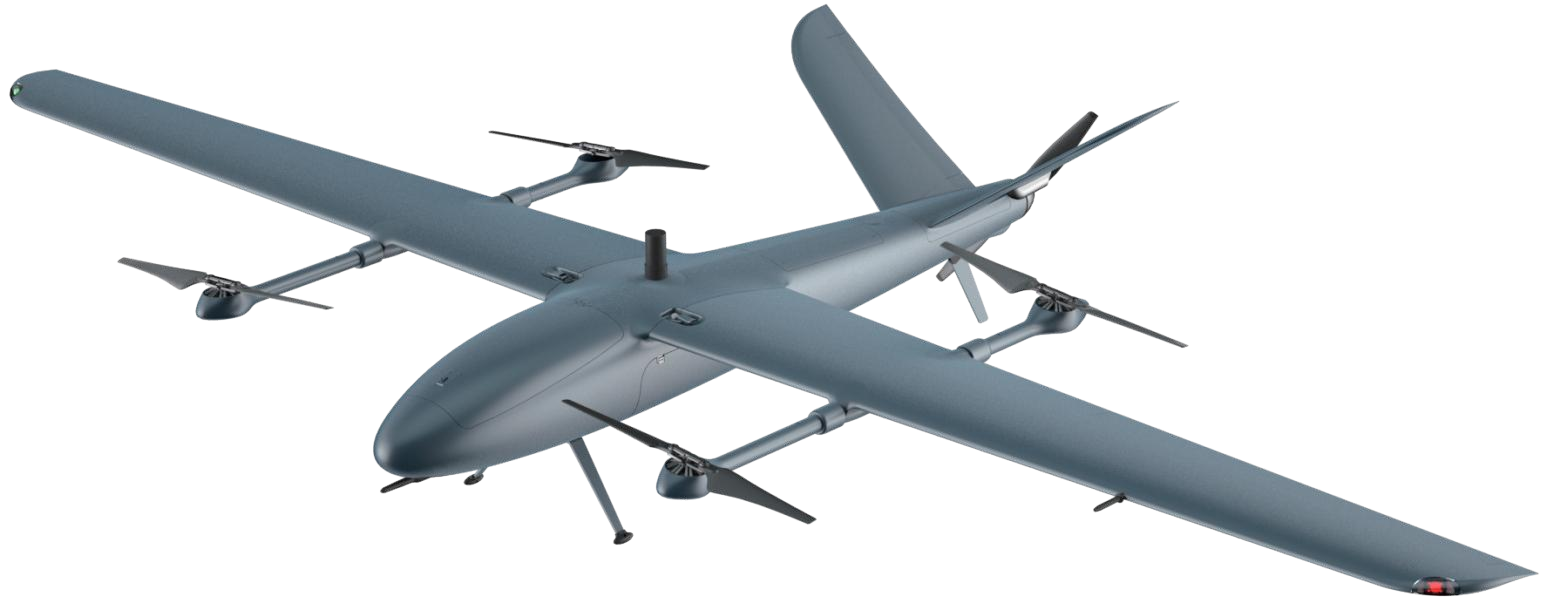

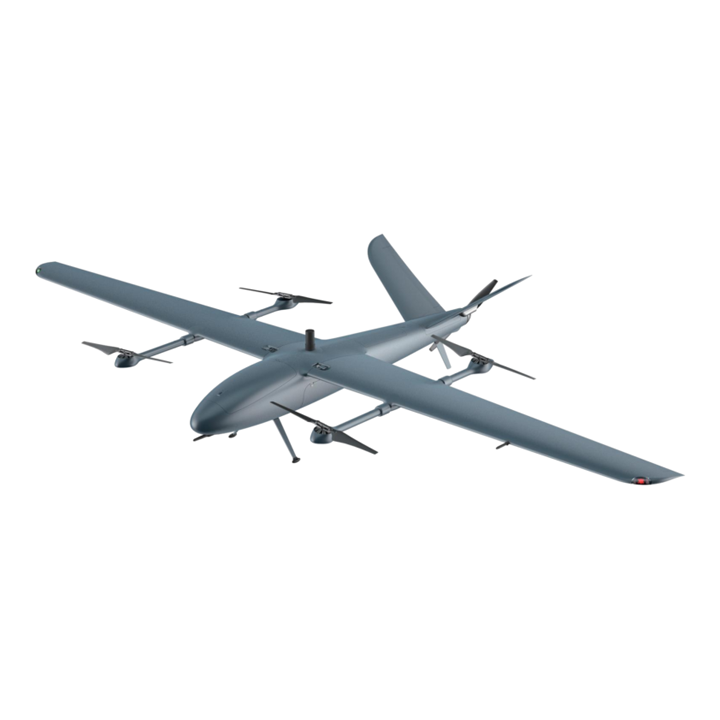

2400mm wingspan airframe delivers industrial-grade endurance (160 min) in compact, sub-8kg format – 50% smaller packaging than competitors.
Portability vs. Performance Matrix:
| Attribute | Moneypro 1E | Standard 2kg Payload Drones |
|---|---|---|
| Deployment Time | 8 minutes unpack → flight | 20+ minutes |
| Shipping Dimensions | 1280×530×450mm (sedan trunk) | 1500+ mm (SUV required) |
| Cruising Efficiency | 20m/s @ 0.81Wh/km | 18m/s @ 1.2Wh/km |
| Certified Environments | IP54 dust/rain + Level 6 winds | IP43 / Level 4 |
Technology Pillars
Frontier Navigation Stack
Survey accuracy where GPS fails:
✓ Quad-Constellation GNSS (GPS+GLONASS+BeiDou+Galileo)
✓ 4500m High-Altitude Lock: Andean mining claim mapping
✓ Dynamic Wind Compensation: <35cm drift at 13m/s winds
Distributor Edge: RTK plug-and-play prep – charge $1.2k/module
Payload Strategy
Optimized for margin-rich specialist sensors:
| Payload Type | ROI Case Study | Annual Revenue Potential |
|---|---|---|
| Multispectral | 300ha vineyard NDVI @ $8/ha | $38,400 (15 surveys/mo) |
| Gas Leak Laser | Oil pipeline patrol 120km/day | $220/km contract fee |
| Emergency Comms | Disaster zone LTE micro-tower | $4,500/day incident rate |
Bay Specs: 180×120×80mm – fits Teledyne FLIR Tau2 or Sony RX0II
Extreme Environment Proof
Where competitors ground operations:
- Siberian Mode: -20°C cold start (heating element included)
- Desert Proof: Sand-filtered motor intake + UV-resistant composites
- Monsoon Ready: IP54 validated under 5mm/hr rainfall
Comm System Breakdown
Beyond spec-sheet truths:
- 80km Range Reality: Achieved over water/mountains
- Latency Performance: 120ms @ 1080p/30fps (40km)
- Spectrum Options: 2.4GHz / 900MHz / LTE mesh
