Image Processing Module

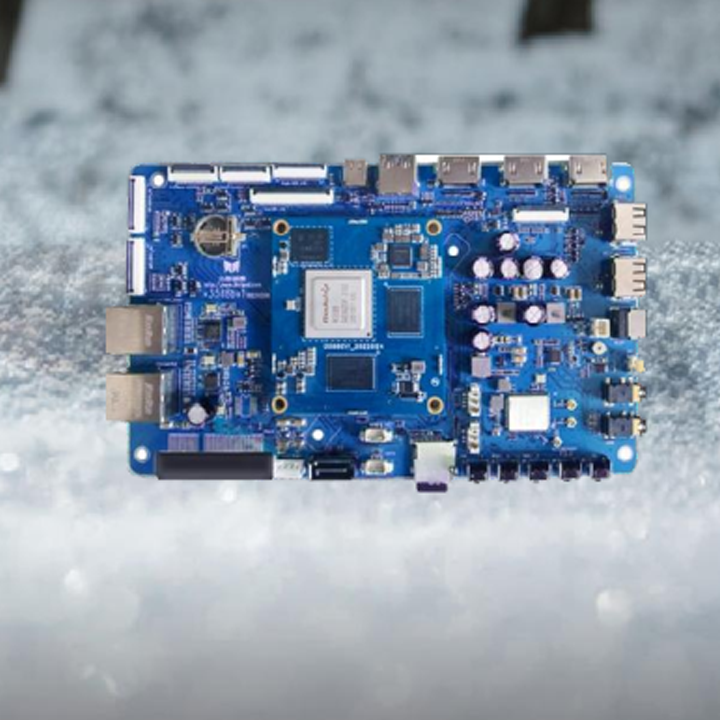

The product adopts high-performance image processing chip, can enough to acquire multi-channel camera data, realize communication, transmission, video decoding, video switching, video display control and other functions. The image processing board is interconnected with the display unit, and based on the display unit, it realizes the system’s man-machine Interaction and image delivery and split display switching functions. It is mainly used in photoelectric pod, photoelectric turret, Multi-spectrum optoelectronic systems such as optical pods, optical turrets, vehicle driving aids, etc. It is mainly used for image acquisition, processing and transmission of multi-spectrum optoelectronic system integration such as optoelectronic pods, optoelectronic turrets and vehicle assisted driving.

Categories: ,
Description

Image Processing Module Parameters

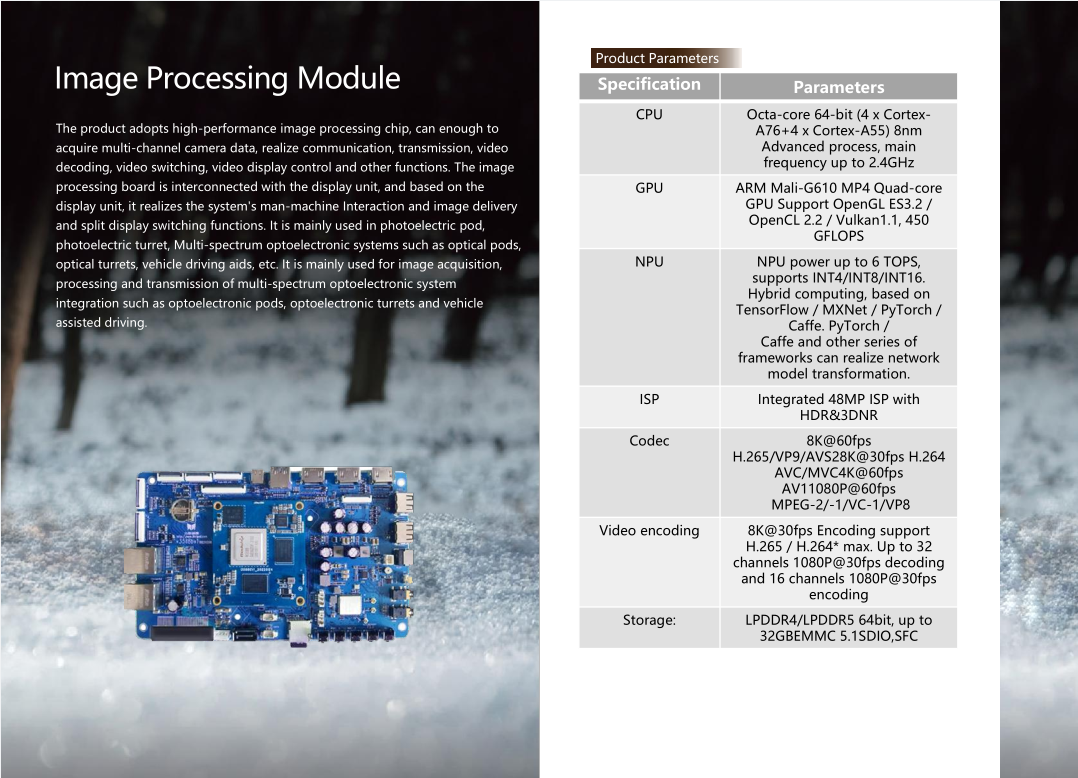

Specification Parameters
CPU Octa-core 64-bit (4 x Cortex-A76+4 x Cortex-A55) 8nm Advanced process, main frequency up to 2.4GHz
GPU ARM Mali-G610 MP4 Quad-core GPU Support OpenGL ES3.2/ OpenCi 2.2/Vulkan1.1, 450 GFLOPS
NPU NPU power up to 6 TOPS,supports INT4/INT8/INT16. Hybrid computing, based on TensorFlow/MXNet /PyTorch/Caffe. PyTorch/ Caffe and other series of frameworks can realize network model transformation.
ISP Integrated 48MP ISP with HDR&3DNR
Codec 8K@60fps H.265/VP9/AVS28K@30fps H.264AVC/MVC4K@60fps AV11080P@60fps MPEG-2/-1/VC-1/VP8
Video encoding 8K@30fps Encoding support H.265 /H.264* max. Up’to 32 channels 1080P@30fps decoding and 16 channels 1080P@30fps encoding
Storage: LPDDR4/LPDDR5 64bit, up to 32GBEMMC 5.1SDIO,SFC



Image Processing Module

Related products

Turing M256 Uncooled Infrared Module

The Turing M256 uncooled infrared module utilizes an advanced 256×192 wafer detector, offering compact dimensions, lightweight design, and low power consumption while fully complying with SWaP³ requirements.
  • Split assembly design enables flexible deployment in diverse applications.
  • Comprehensive auxiliary tools support multiple ARM-based SOC platforms, ensuring seamless integration and ease of development.
  • Dual-output capability: Simultaneous thermal imaging and temperature data output.
Versatile compatibility: Works with lightweight infrared lenses and extension components.

FNV-16 Thermal＆nightvision fusion monocular

It is a electronic monocular used for observation,equipped with both night vision and thermal cameras.During day and night,it present high quality image with not only prominent target but also rich details of surrounding environment. It is very useful tools for searching/scanning/confirming target. It is lightweight and small size,easy to carry and hold,can be used as single hand monocular. It can also be used as scope or goggle with accessories. It can work at extreme condition like high-low temperature, high humidity and heavy rain. It is robust,reliable and ergonomic,very easy to use like a hammer.

High Power Variable Optic

It is a Keplerian telescope system with a delineated sight line, which has the functions of focusing (distance parallax compensation), ballistic correction, brightness adjustment of delineated illumination, magnification adjustment and visual adjustment. It can meet the needs of people with different eyesight in different environments to accurately aim at targets within 800 meters, thus realizing accurate shooting.

China ME280 – 20KG-Class Vehicle-Mounted Photoelectric Search and Tracking Ball

China ME280 is a 20kg-class vehicle-mounted photoelectric search and tracking ball designed with modular structure, advanced AI recognition, and high adaptability for complex mission environments. It integrates infrared thermal imaging, visible light camera, laser rangefinder, and three-axis gyro stabilization to deliver highly stable, long-range observation and tracking. It is suitable for border defense, vehicle-mounted surveillance, maritime monitoring, and multiple security or military applications.

MTS625Miniature multipurpose infrared thermal imaging fast scope

MTS625 adopts highly integrated design, ultra-light and ultra-small, the volume and weight are comparable to red dot and holographic scopes. Adopting collimated eyepiece with 1X magnification, it has the same fast aiming ability as holographic and red dot sights.

NV14 Night Vision Monocular

The product is portable and multi functional night vision monocular with high resolution,small in size,light in weight .Magnification can be changed by replacing different objective lens, 1x , 3x and 5x are available.Image Intensifier Tube – Generation 2+, power supply with built-in bright flash protection (with automatic brightness gain regulation). It can be equipped with digital camera, video recorder,CCD video camera and use super Gen 2+ or gen3 sophisticated Image Intensifier Tube with Anti-glare,function and built-in IR Illuminator.

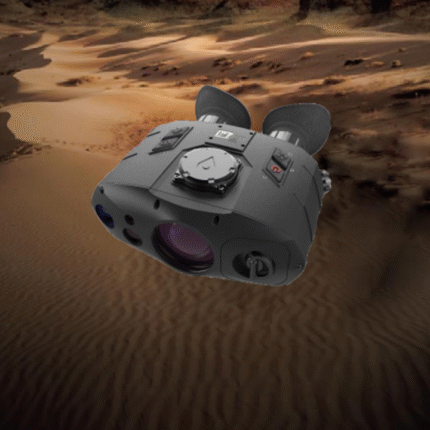

TF03 Three light HD fusion observer
