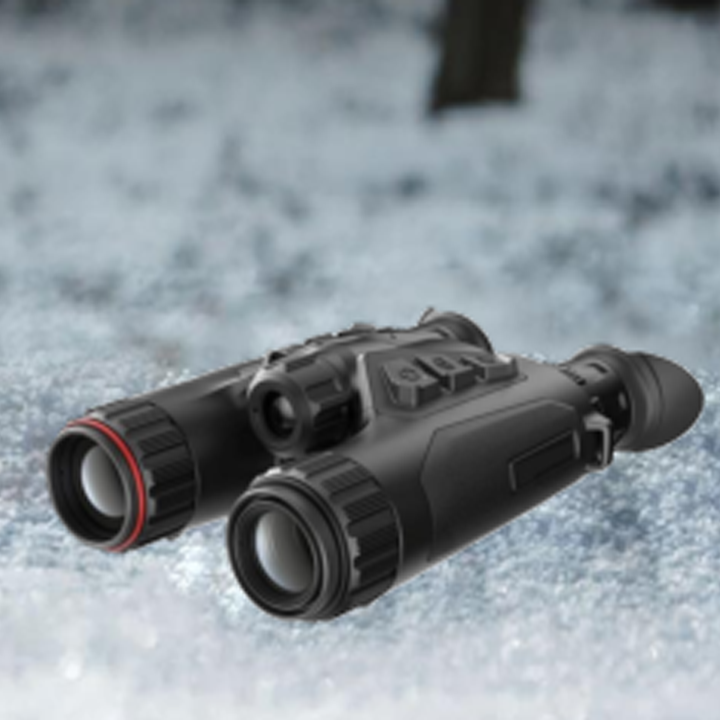

TF01 Infrared Fusion Telescope

THE TF01 adopts infrared and low-light CMOS detector with infrared, low-light and fusion modes, laser rangefinder, photo and video storage, etc. It is used for day and night searching and observing targets.

Categories: ,
Description

TF01 Infrared Fusion Telescope Features

High performance uncooled infrared focal plane detector
Advanced fusion algorithms for superior imaging
Highly integrated design, compact and lightweight
Meets the requirements for use in harsh environments

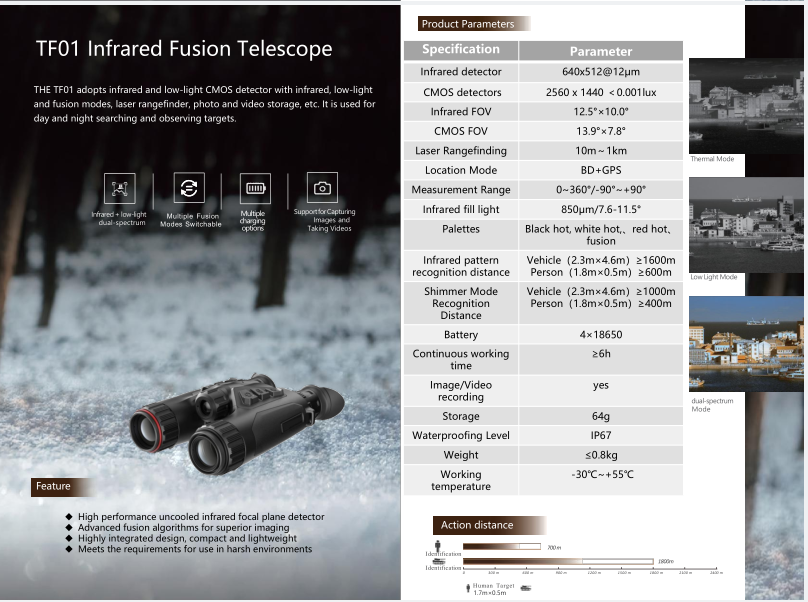

TF01 Infrared Fusion Telescope Parameters

Specification Parameter
Infrared detector 640×512@12μm
CMOS detectors 2560 x 1440 <0.001lux
Infrared FOV 12.5°x10.0°
CMOS FOV 13.9°x7.8°
Laser Rangefinding 10m~1km
Location Mode BD+GPS
Measurement Range 0~360°/-90°~+90°
Infrared fill light 850μm/7.6-11.5°
Palettes Black hot, white hot,、red hot.fusion
Infrared pattern recognition distance Vehicle (2.3mx4.6m) ≥1600m
Person (1.8mx0.5m) ≥600m
Shimmer Mode Recognition Distance Vehicle (2.3mx4.6m) ≥1000m
Person (1.8mx0.5m) ≥400m
Battery 4×18650
Continuous Working time ≥6h
Image/Video recording yes
Storage 64g
Waterproofing Level Weight IP67

TF01 Infrared Fusion Telescope
