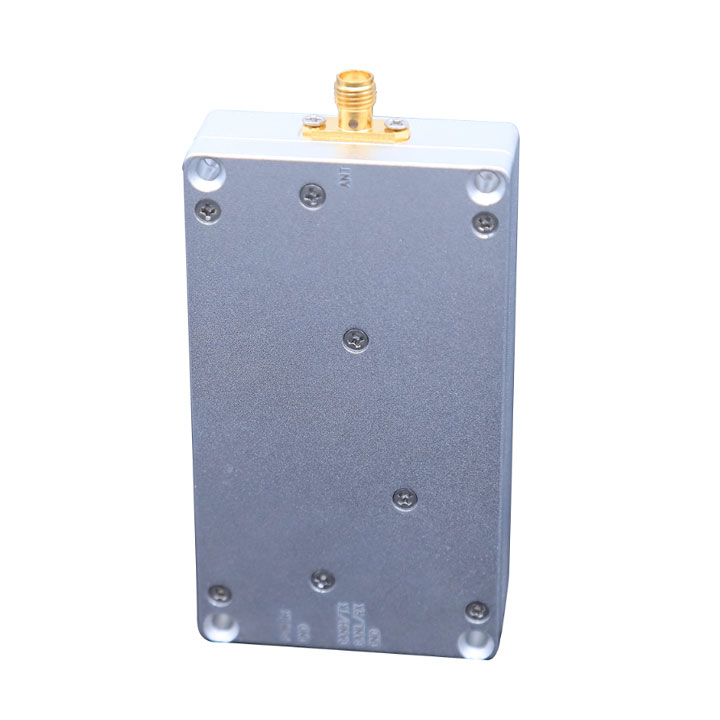

M040A Drone Interference RF Module Features
- High efficiency GaN power amplifier chip
- CAN/UART bus real-time control
- Control of discontinuous frequency points in frequency band
- Low power standby mode
- Output open-circuit protection
- Power back protection
- Extra wide operating voltage
- Operating temperature: -40℃ ~ +65℃
- Customizable design
M040A Drone Interference RF Module Parameter
Parameters
- Working frequency
- 5720MHz～5850MHz（830MHz～940MHz,1550MHz～1620MHz,2400MHz～2500MHz）
- Output power
- 35dBm+2dB
- Output power control
- Output off,half power output,up to three adjustable
- Output voltage standing wave ratio
- ≤2.0
- CAN bus function
- Working frequency reading and setting; Output power control; Module temperature reading; Output open circuit alarm; Threshold parameter setting of temperature and standing wave ratio; Module standby control
- Signal sweep period
- 30uS≤Period≤40uS
- Rated voltage
- DC+24V (DC+9V～DC+30V)
- Rated current
- ≤1.2A @ DC24V
- Standby working current
- ≤0.05A @ DC24V
- Module power consumption
- ≤25W
- Rf
- 50Ω
- Dimensions(L*W*H)
- 84.5mm*48mm*18mm
- Weight
- ≤150g
- Structural material
- Aluminum Alloy 6061
- Surface treatment
- Anodized natural color
- Heat dissipation mode
- Natural heat dissipation
