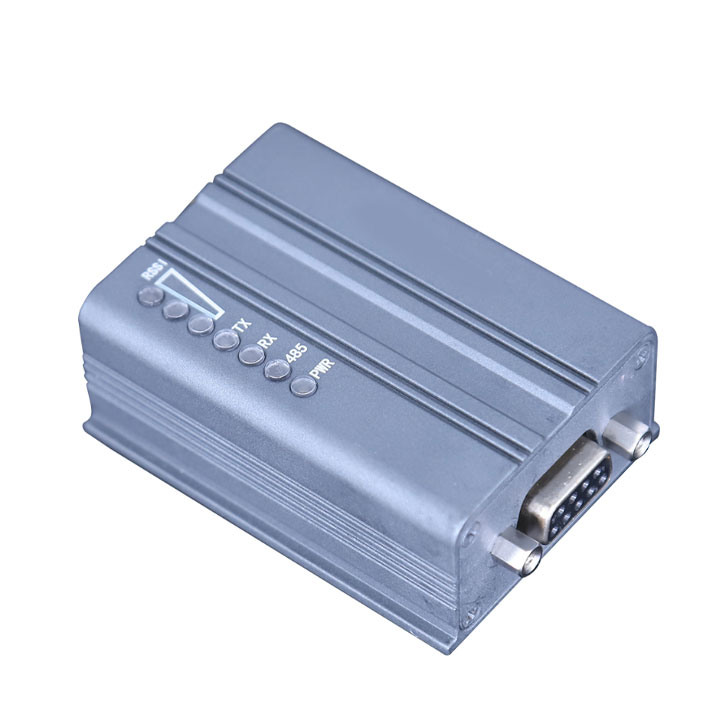

MYD T900-DEMO 1W Data Transmission and Receiver Hopping Radio Demo Features
- Within the 902-928MHz frequency band.
- Maximum output power: 1W (30dBm). Radios of higher than 30dBm can be customized.
- Transparent transmission, low delay, and 276kbps maximum speed.
- Automatic relay mode.
- Able to communicate with most series-based devices.
- Wide temperature range.
- 16-bit CRC with selective retransmission and forward error correction.
- Independent diagnostic port – real-time remote diagnosis and online network control.
- Easy to install and configure — the T900 uses a subset of standard AT-style commands, similar to using traditional telephone line modems.
MYD T900-DEMO 1W Data Transmission and Receiver Hopping Radio Demo Parameter
Parameters
- Working frequency
- 902~928MHz
- Modulation
- 2FSK
- Spread spectrum
- FHSS
- TX power
- 20dBm~30dBm（above 30dBm can be custmized）
- Work mode
- point-to-point,point-to-multipoint
- Data encryption
- AES256
Performance
- Receiving sensitivity
- -106dBm@276.4kbps -107dBm@230.4kbps -108dBm@172.8kbps -109dBm@115.2kbps -110dBm@57.6kbps
- Transmission rate
- 57.6kbps~276.4kbps
- Error detection
- 16-bit CRC,ARQ,ReedSolomon
Interface specifications
- Data interface
- DB9,RS232/RS485
- Control interface
- USB Type-C
- Antenna interface
- SMA
Electrical specifications
- Voltage range
- DC12V±3V
- System power consumption
- <10W
Physical specifications
- Dimensions(L*W*H)
- 79.2mm*49.0m*26mm
- Weight
- 110g
- Working temperature
- -40℃ ~+85℃
