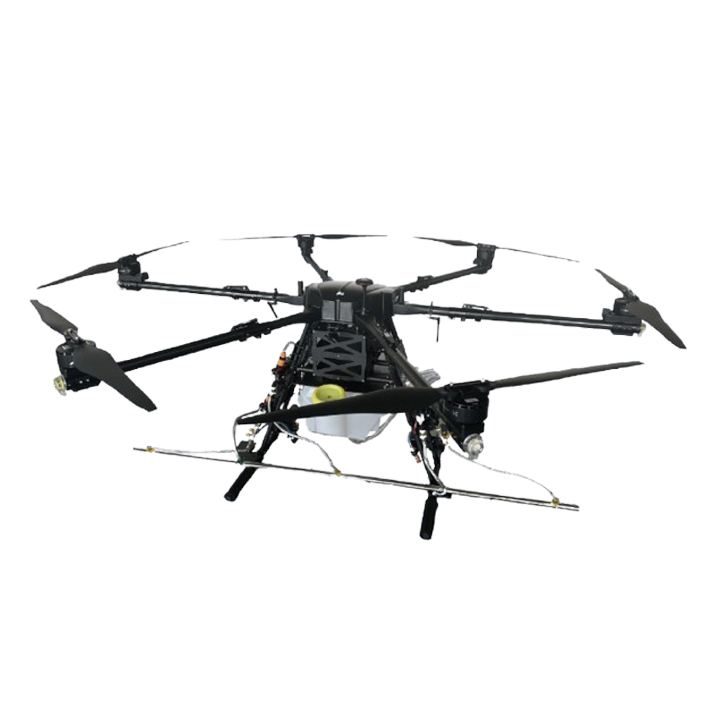

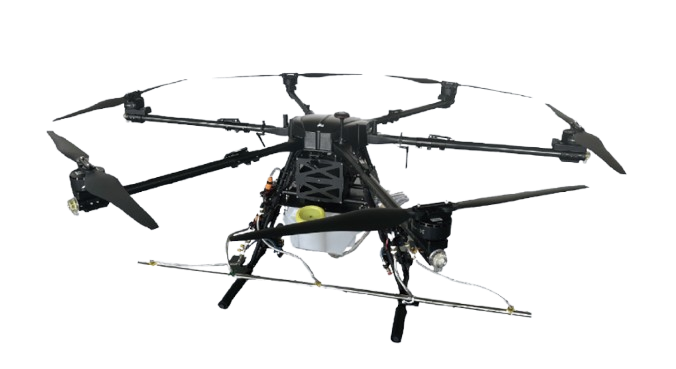

M100-QX-D Photovoltaic Cleaning Drone

Introducing the M100-QX-D Photovoltaic Cleaning Drone, a specialized industrial-grade aerial solution engineered to streamline the maintenance of solar panel arrays. Built with durable, weather-resistant components, it operates reliably in outdoor environments, navigating smoothly over large PV installations. Equipped with precision flight controls, efficient brush or spray cleaning modules, and long-endurance batteries, it removes dust, dirt, and debris from panel surfaces without causing damage, significantly boosting solar energy conversion efficiency while reducing manual labor costs and safety risks for photovoltaic system operators.

Category:
Description

Parameter Details

  • Product Material: High-strength carbon fiber
  • Propellers: 43-inch folding propellers
  • Number of rotors: 6 rotors, 6 propellers
  • Deployed dimensions: 2330*2032*997mm
  • Folded dimensions: 1285*1119*997mm
  • Wheelbase: 2188mm
  • Empty weight: 39kg
  • Battery weight: 10kg x 2
  • Maximum payload: 50kg
  • Maximum takeoff weight: 109kg
  • No-load endurance: 24 minutes
  • Battery payload per battery: 50kg, capable of up to 3 combined sorties
  • Maximum flight speed: 25m/s
  • Environmental protection rating: IP54
  • Positioning system: GPS/Beidou/Galileo/GLONASS
  • Positioning accuracy: ±0.5m

M100-QX-D Photovoltaic Cleaning Drone
