Home » Unmanned System Products » M20 Industry Level Drone
M6-15 Industry Level Drone
Back to products
M40 Industry Level Drone

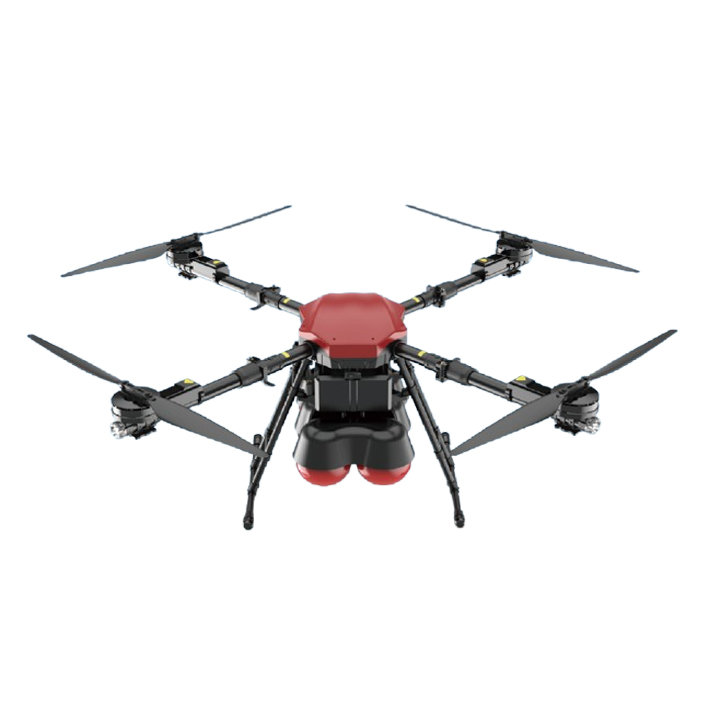

M20 Industry Level Drone

The M20 Industry Level Drone is a rugged, high-performance UAV designed for professional applications. Built with a lightweight yet durable carbon fiber frame, it offers an impressive payload capacity and extended flight time. Equipped with advanced flight control systems and multiple sensor options, the M20 delivers precise data collection for industries such as mapping, inspection, and emergency response.

Category:
Description

Parameter Details

  • Product material: Nylon carbon fiber with aviation aluminum
  • Propellers: 34-inch folding propellers
  • Number of rotors: 4 rotors, 4 propellers
  • Deployed dimensions: 1020*1020*750mm
  • Folded dimensions: 640*640*750mm
  • Wheelbase: 1400mm
  • Empty weight: 13kg
  • Battery weight: 6.3kg
  • Maximum payload: 10kg
  • Maximum takeoff weight: 36kg
  • Unladen flight time: 53 minutes
  • Flight time with a 10kg payload: 27 minutes
  • Maximum speed: 15m/s
  • Environmental protection rating: IP65
  • Positioning system: GPS/Beidou/Galileo/GLONASS
  • Positioning accuracy: ±0.5m

M20 Industry Level Drone
