Home » Unmanned System Products » M40-4 Industry Level Drone
MF100 Industry Level Drone
Back to products
M60-QX-F Industry Level Drone

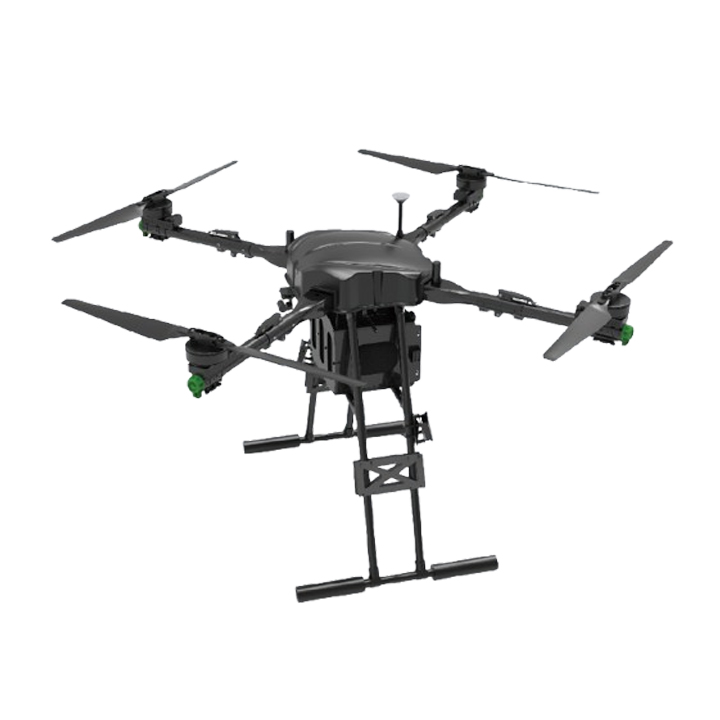

M40-4 Industry Level Drone

Introducing the M40-4 Industry-Level Drone, a rugged and high-performance aerial solution engineered to meet the demanding needs of professional sectors including construction, agriculture, infrastructure inspection, and public safety. Built with industrial-grade materials, it boasts exceptional durability to withstand harsh environmental conditions such as strong winds, dust, and light rain, ensuring reliable operation in challenging workspaces. Equipped with advanced flight control systems, long-endurance batteries, and flexible payload compatibility—supporting high-resolution cameras, thermal imagers, LiDAR modules, and more—it delivers precise data capture, real-time monitoring, and efficient task execution. Whether for topographic mapping, structural defect detection, crop health analysis, or emergency response, the M40-4 combines stability, versatility, and professional-grade functionality to elevate operational efficiency and data accuracy for industrial users.

Category: Multi-rotor UAV
Share:
  • Description
Description

Parameter Details

  • Product Material: High-strength carbon fiber
  • Propellers: 34-inch folding propellers
  • Number of rotors: 4 rotors, 4 propellers
  • Deployed dimensions: 1163*1163*975mm
  • Folded dimensions: 878*878*975mm
  • Wheelbase: 1480mm
  • Empty weight: 14kg
  • Battery weight: 6.3kg x 2
  • Maximum payload: 20kg
  • Maximum takeoff weight: 45kg
  • Unladen flight time: 69 minutes
  • Flight time with a 20kg payload: 30 minutes
  • Maximum speed: 25m/s
  • Environmental protection rating: IP54
  • Positioning system: GPS/Beidou/Galileo/GLONASS
  • Positioning accuracy: ±0.5m

M40-4 Industry Level Drone
