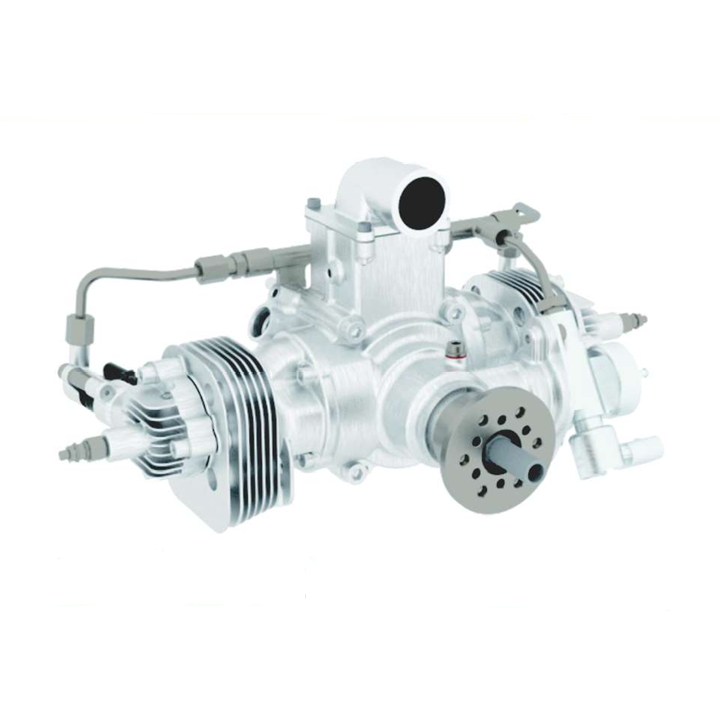

MB201 Heavy Fuel Engine FEATURES
- Boxer, 2-cylinder, 2-stroke
- Heavyfuel: diesel, RP-3/RP-5
- Low fuel consumption,long-endurance
- Compression combustion,stable and reliable power output
- Maximum operating altitude 5000m
- TBO>200h
MB201 Heavy Fuel Engine Specifications
| Fuel | Diesel,Jet fuel (RP-3/RP-5) |
| Configuration | Boxer, 2-cylinder,2-stroke,air-cooled, High pressure common rail |
| maximum horsepower/speed | 5.4hp/4700rpm |
| Minimum specific fuel consumption | 280g/kW.h |
| Weight | 5.1kg |
| Length xwidth xheight | 242mmx410mm×192mm |
| TBO | 200h |
| Applications | Applied to small long-endurance UAVs and range extenders |

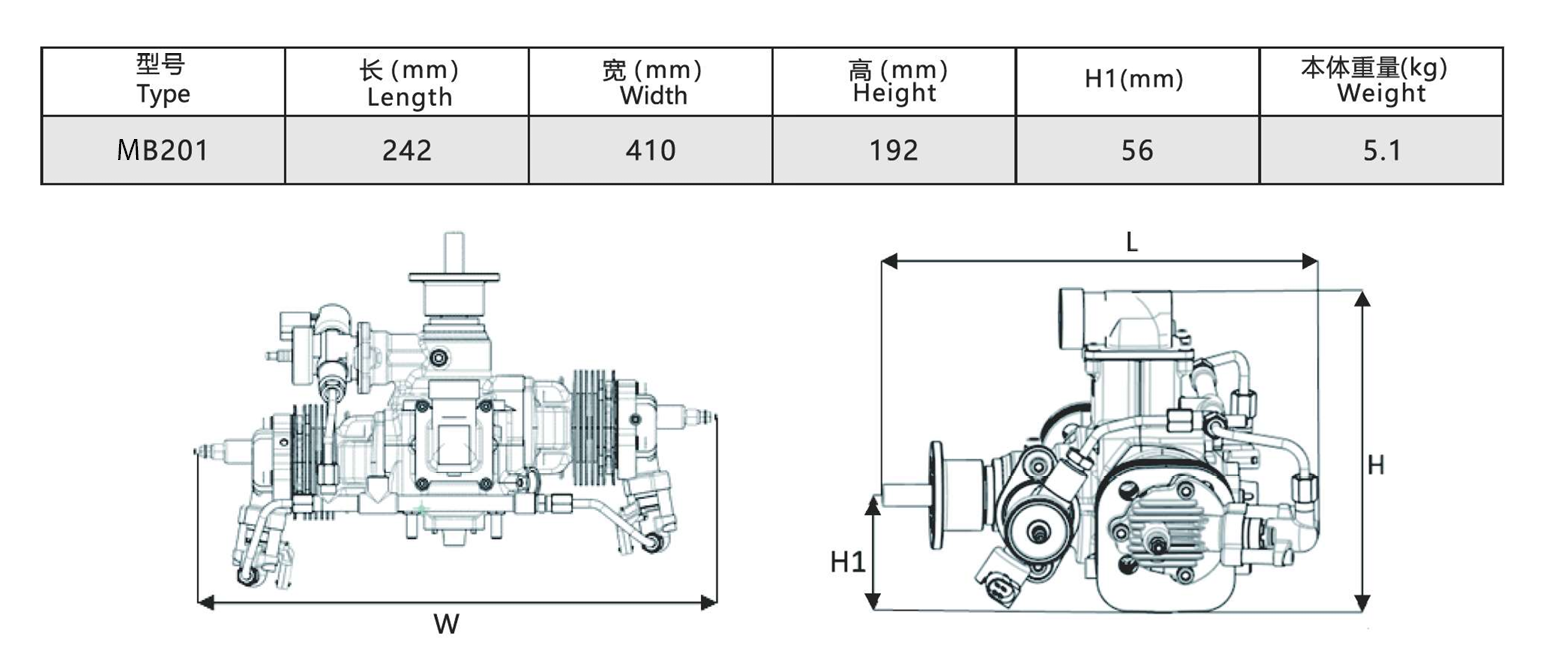

MB201 Heavy Fuel Engine Outline Drawing

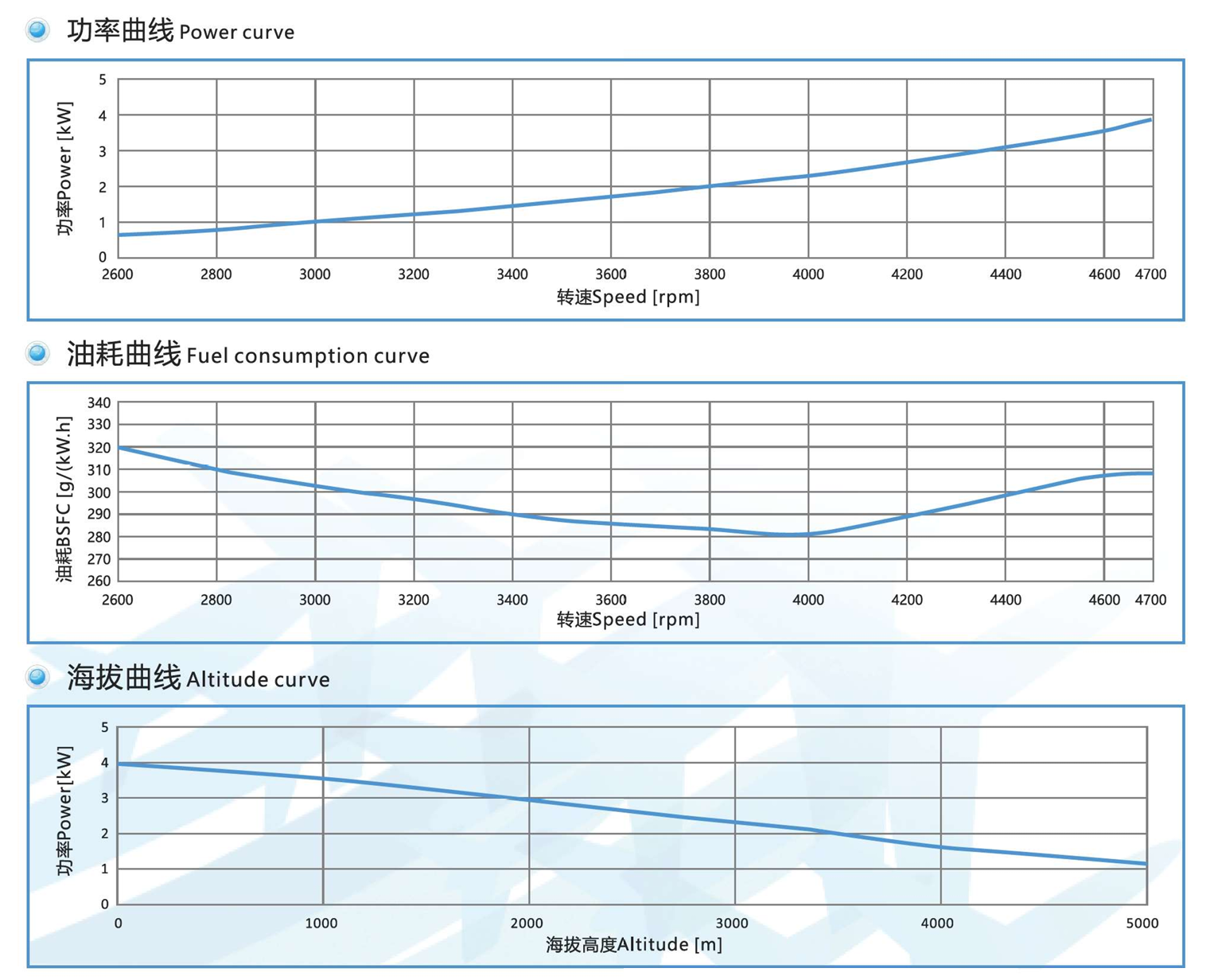

MB201 Heavy Fuel Engine Characteristic Curve
