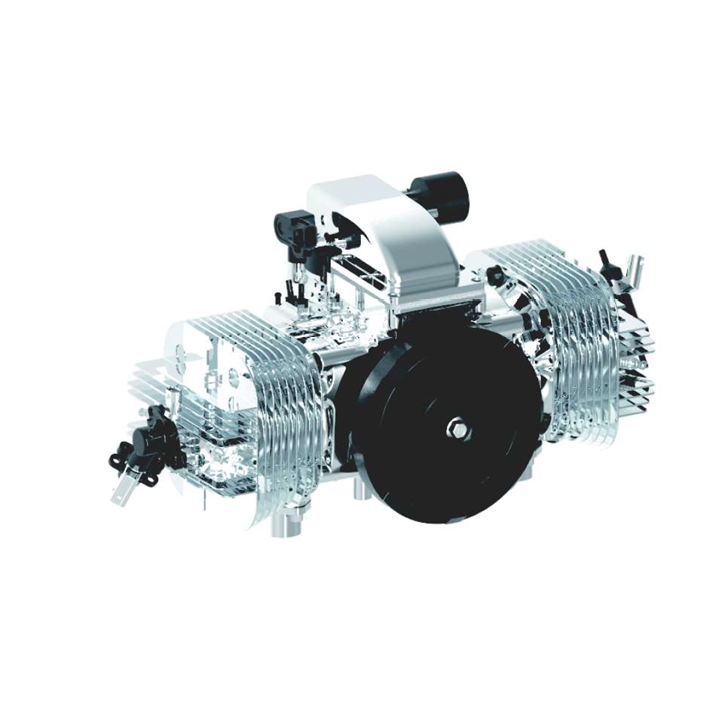

MB203B Heavy Fuel Engine (16KW) FEATURES
- Boxer,2-cylinder,2-stroke
- Heavyfuel:RP-3/RP-5
- Integrated starter and generator
- Direct injection、 dual spark plug ignition
- Maximum operating altitude 6500m
- TBO>200h
MB203B Heavy Fuel Engine (16KW) Specifications
| Fuel | Jet fuel(RP-3/RP-5) |
| Configuration | Boxer, 2-cylinder, 2-stroke,air-cooled |
| maximum horsepower/speed | 22hp/6000rpm |
| Minimum specific fuel consumption | 350g/kw·h |
| Weight | 9.1kg |

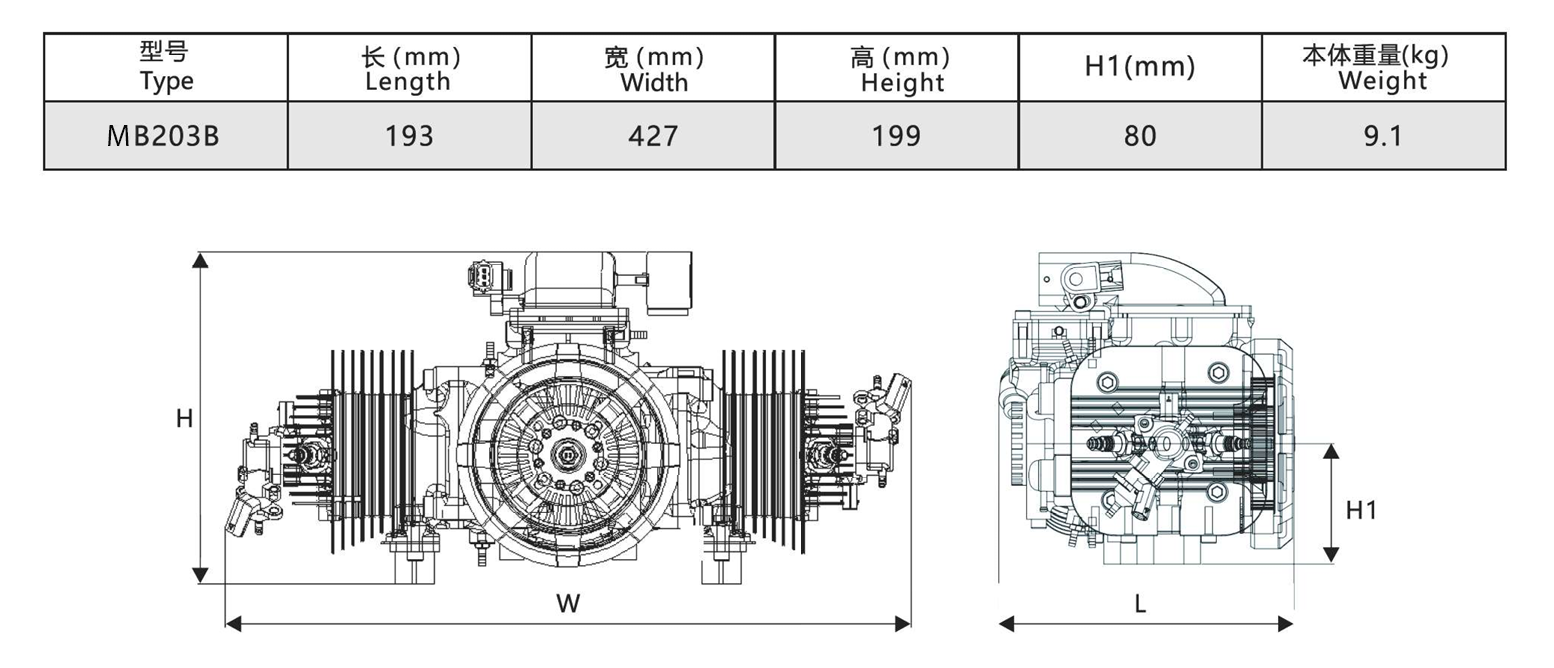

| Length xwidth xheight | 193mmx427mmx199mm |
| TBO | 200h |
| Applications | Applied to small long-endurance UAVs、 Loitering Munition |
