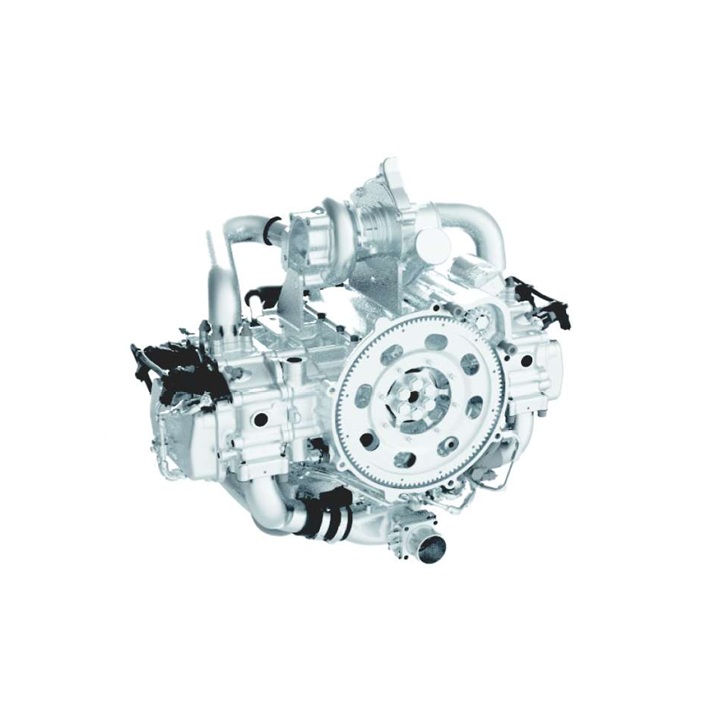

MB410 Heavy Fuel Engine(75/85kW) Features
- Boxer, 4-cylinder, 4-stroke
- Heavy fuel: diesel, RP-3/RP-5
- Compression combustion ,stable and reliable power output
- Less than 25% power attenuation at 5000m
- Maximum operating altitude 10000m
- Low fuel consumption, long-endurance
- TBO>1000h
MB410 Heavy Fuel Engine(75/85kW) Specifications
| Products models | MB410(75 kW) | MB410B(85 kW) |
| Fuel | DieselJet fuel(RP-3/RP-5) | |
| Configuration | Boxer,4-cylinder,4-stroke,liquid-cooledhigh pressure common rail | |
| Air inlet mode | TCI | |
| maximum horsepower/speed | 102hp/5500rpm | 116hp/5600rpm |
| Minimum specific fuel consumption | 245g/kW·h | 265g/kW·h |
| Weight | 70 kg (without gearbox) 78 kg (with gearbox) |
72 kg (without gearbox) 82 kg (with gearbox) |
| Length x width x height | 451mmx653mmx571mm(without gearbox) 610mmx653mmx571mm(with gearbox) | 451mmx653mmx590mm(without gearbox) 610mmx653mmx590mm(with gearbox) |
| TBO | 1000h | |
| Applications | Applied to small and medium-sized UAVs,light helicoptersfixed-wing general aviation aircraft and range extenders | |

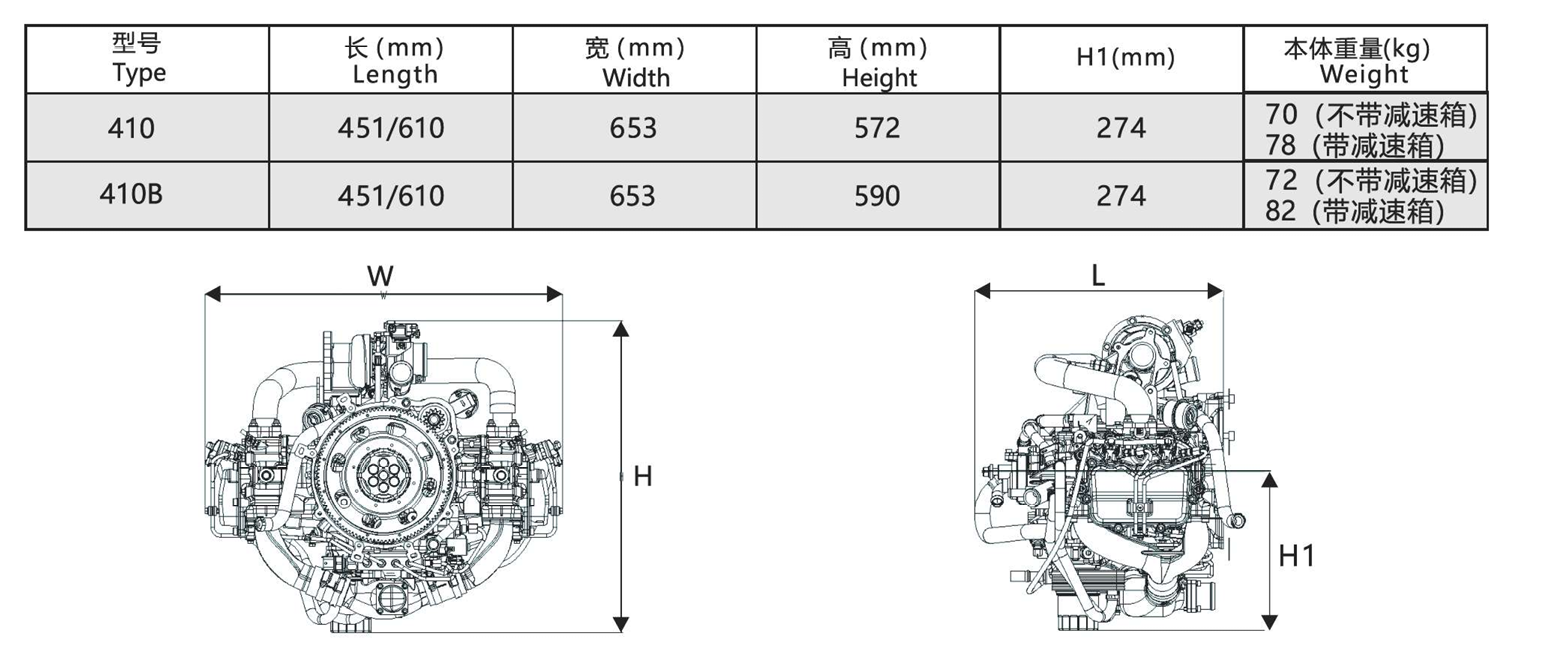

MB410 Heavy Fuel Engine(75/85kW) Outline Drawing
MB410 Heavy Fuel Engine(75/85kW) Characteristic Curve
