Product Detail
Technical Advantages
Software Defined Radio (SDR)
Modifying the underlying communication protocol enables the system to continuously evolve and optimize, adapting to changing requirements over time.
It provides comprehensive and effective verification for chip-based enhancements, significantly reducing the risks associated with tapeout processes.
With flexible customization capabilities, it enhances the potential for design wins by meeting diverse customer-specific needs.
Private Communication Protocol
Specifically optimized for video transmission, this private protocol features a refined frame format and enhanced pilot frequency. These improvements work together to significantly boost the receiving performance of video transmission, ensuring stable and high-quality visual data delivery.
Specification
| Hardware Parameter | |
|
Frequency
|
1.4GHz/2.4GHz
|
|
Band width
|
10MHz (uplink), 10MHz(downlink)
|
|
Power
|
37dBm (5W)
|
|
Video format
|
AV: PAL, 50i/NTSC, 60i
|
|
HDMI: 576i60, 480p@60fps, 720p@60fps, 1080p@50fps, 1080p@60fps
|
|
| SDI: 720p@50fps, 720p@60fps, 1080p@50fps, 1080p@60fps | |
|
Modulation
|
OFDM |
|
Constellation
|
BPSK, QPSK, 16QAM
|
|
FEC
|
LDPC (1/2, 2/3, 3/4, 5/6)
|
|
Duplex
|
TDD
|
| Downlink throughout |
2Mbps ~ 8Mbps
|
|
Uplink throughput
|
600kbps (Serial port + Ethernet + Remote)
|
|

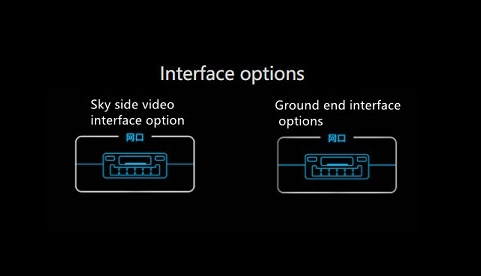

Interface
|
Ethernet, Serial, PPM/S.BUS
|
|
Encryption
|
AES256
|
|
Dimension
|
176*139*27mm
|
|
Weight
|
668g
|
|
Voltage
|
DC18V~26V, 6S Li-ion
|
| Working temperature |
-40°C ~65°C
|
