Multi-Band Optoelectronic Turntable: Redefining All-Weather Security
nn

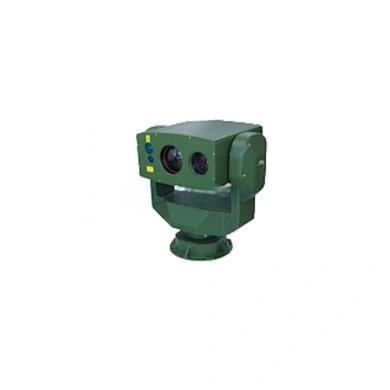

In the demanding world of perimeter defense and critical infrastructure protection, the ability to see clearly in all conditions is not just an advantage—it is a necessity. The MOP-MINI U multi-band optoelectronic turntable rises to this challenge, setting a new standard for 24/7 surveillance. By fusing the power of HD visible light, thermal imaging, and a dedicated laser illuminator, this system delivers unparalleled situational awareness, even through dense fog, heavy rain, or total darkness.
nn
At the core of this advanced platform lies a triple-sensor design that eliminates the blind spots of traditional security cameras. The visible light sensor, built around a starlight CMOS, achieves a remarkable 0.001 Lux sensitivity, providing crisp color images in near-complete darkness. When conditions degrade, the thermal imaging module takes over, using the detection of heat signatures to isolate targets that are invisible to the naked eye. This synergy between sensors is the foundation of its all weather security capability, ensuring that no environmental obstacle compromises your surveillance.
nn
Engineered for critical applications such as border control, prison security, and oil depot monitoring, the turntable incorporates military-grade components. Its motorized zoom lenses, ranging from 8mm to 300mm, allow operators to scan wide areas and then zoom in on specific threats with surgical precision. The inclusion of both uncooled VOx and cooled MCT detectors provides flexibility, with the cooled version offering superior sensitivity (NETD better than 20mK) for detecting subtle temperature differences at extreme ranges.
nn
Triple-Sensor Fusion for All Weather Security
nn
The integration of three distinct sensing modalities is what truly makes the MOP-MINI U a powerhouse of all weather security. The HD visible light channel provides clear, recognizable imagery for identification. The thermal imaging channel ensures detection is not hindered by obscurants like smoke, dust, or low-light conditions. Meanwhile, the 808nm laser illuminator extends operational capability in pitch-black environments, providing a reach of up to 300 meters. This multi-band data fusion is not a simple overlay; it is an intelligent process where data from each sensor is analyzed and combined by an embedded AI, resulting in a detection accuracy of greater than 95% even in blizzards and sandstorms.
nn
This robust sensor suite is mounted on a high-speed pan-tilt unit. With a pan speed of 80° per second and a tilt range from -45° to +90°, the system can track fast-moving objects with exceptional agility. The mechanical reliability is matched by its electronic intelligence. The embedded AI is capable of automatic target classification, distinguishing between humans, vehicles, and UAVs (drones). It further performs complex behavioral analytics, including intrusion detection, loitering alerts, and retrograde movement detection.
nn
Core Technical Specifications for the Multi-Band Turntable
nn
The following table outlines the key parameters that define the system’s superior performance and adaptability to diverse operational needs.
nn
| Parameter | Index (Uncooled VOx) | Index (Cooled MCT) |
|---|---|---|
| Visible Light Sensor | 1/2.8 Starlight CMOS | 1/2.8 Starlight CMOS |
| Visible Resolution | 1920 × 1080 | 1920 × 1080 |
| Visible Illuminance | Color 0.01 Lux / B&W 0.001 Lux | Color 0.01 Lux / B&W 0.001 Lux |
| Visible Lens Focal Length | 8~256 mm | 7~300 mm |
| Thermal Detector | Uncooled FPA VOx | Cooled FPA MCT |
| Thermal Resolution | 640 × 512 | 640 × 512 |
| Thermal NETD | Better than 40 mK | Better than 20 mK |
| Thermal Lens Focal Length | 25~75 mm | 30~300 mm |
| Laser Type | 808 nm (5W) | 808 nm (5W) |
| Laser Illumination Distance | 300 m | 300 m |
| Pan Range | 360° | 360° |
| Pan Speed | 0.01°/s ~ 80°/s | 0.01°/s ~ 80°/s |
| Tilt Range | -45° ~ +90° | -45° ~ +90° |
| Tilt Speed | 0.01°/s ~ 60°/s | 0.01°/s ~ 60°/s |
| Preset Positions | No less than 255 | No less than 255 |
| Tracking Mode | Front-end embedded / Back-end software | Front-end embedded / Back-end software |
| Communication Interface | 1 × RJ45 | 1 × RJ45 |
| Power Supply | 1 × AC 220V OR 1 × DC 24V | 1 × AC 220V OR 1 × DC 24V |
| Power Consumption | ≤150 W | ≤150 W |
| Weight | ≤19 kg | ≤19 kg |
| Operating Temperature | -40°C ~ +60°C | -40°C ~ +60°C |
| Protection Level | IP66 | IP66 |
nn
Ensuring Reliability in the Harshest Environments
nn
Surveillance equipment is often deployed in the most challenging locations, from remote border posts to industrial zones with extreme weather. The MOP-MINI U is built to withstand these conditions. Its IP66 rating means it is completely protected against dust and powerful water jets. The wide operational temperature range of -40°C to 60°C ensures it functions flawlessly whether in a frozen tundra or a scorching desert. With a weight of under 19 kg and flexible power options (AC or DC), integration into existing infrastructure is straightforward.
nn
The system’s intelligence extends beyond simple observation. It supports radar linkage, where the turntable automatically slews to a designated target upon a radar cue. With 255 programmable preset positions, operators can create efficient patrol routes or designate critical areas for constant monitoring. The tracking functionality, whether through front-end hardware or back-end software, allows for seamless manual and automatic tracking of moving targets, ensuring that no threat goes unmonitored. This comprehensive feature set makes the MOP-MINI U an indispensable tool for professionals who demand uncompromising all weather security.
nn
In conclusion, the MOP-MINI U multi-band optoelectronic turntable represents a significant evolution in perimeter defense and security monitoring. By masterfully combining multiple sensors with robust mechanical design and intelligent analytics, it provides a reliable and effective solution for the most demanding environments. For security professionals requiring absolute confidence in their surveillance systems, the MOP-MINI U delivers the performance and durability necessary to protect critical assets in any weather, any time.
