MYD-SwiftLink 2W(dual-band)

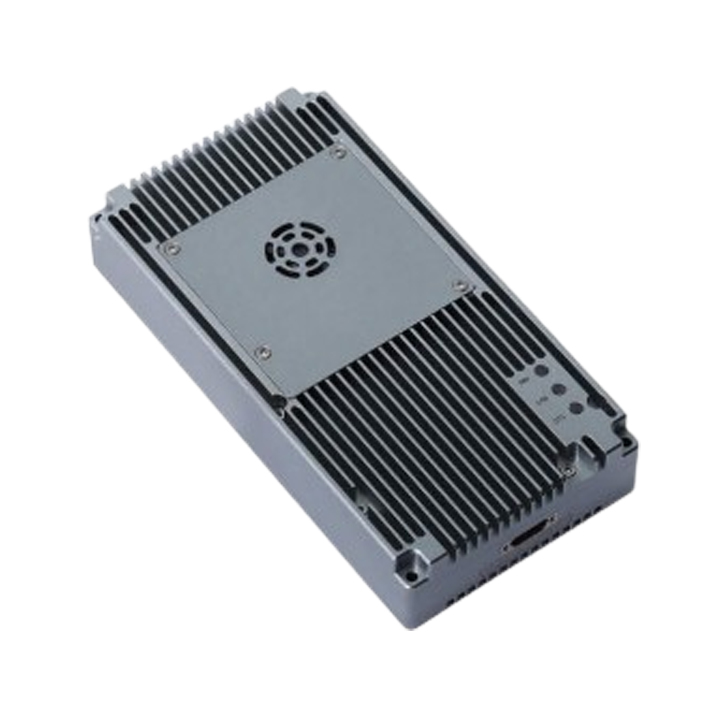

The MYD-SwiftLink 2W (dual-band) is a versatile, high-power wireless module engineered for mission-critical IoT and M2M applications that demand both flexibility and long-range performance.
By offering simultaneous operation on two independent frequency bands (such as 1.4GHz and 5.8GHz), it provides superior network resilience through intelligent frequency hopping and interference avoidance, ensuring an always-on connection even in congested RF environments.
Boasting a robust 2W (33dBm) transmit power and exceptional receiver sensitivity across both bands, it delivers reliable communication over distances exceeding 30km line-of-sight. The module supports AES-256 encryption for end-to-end data security and offers flexible integration via Ethernet and multiple serial interfaces (TTL/RS232/RS422/SBUS).
Its compact, rugged design, wide operating temperature range (-40°C to +85°C), and low power consumption make it the ideal choice for demanding applications such as industrial automation, long-range UAV control, smart agriculture, and secure SCADA systems.
Category:
Description

PHCT

[Parallel Heterogeneous-Frequency Communication Technology]

MYD-SwiftLink 2W(dual-band)

Product Parameter

System parameter Technical index
Equipment type P33-MINI-DUAL
Working frequency 600MHz&1.4GHz; 900MHz&1.4GHz
Radio frequency channel 2T2R
Output power 33dBm (2W)
Transmission distance 30KM+ (LOS)
Channel bandwidth 10MHz&20MHz
Modulation mode QPSK, 16QAM
Maximum rate 16.8Mbps@10MHz; 23.9Mbps@20MHz
Communication encryption AES 256
Transmission delay ≤10ms
Radio frequency interface SMA*2
Device interface Ethernet*2; TTL/RS232*2/SBUS*2
Power consumption Air unit≤25W; Ground unit≤10W
Dimension(L*W*H) 150mm*72.3mm*27mm
Weight 340g
Working voltage DC 9-26V; Typical: 12V@3A
Working temperature -40-+70°C
