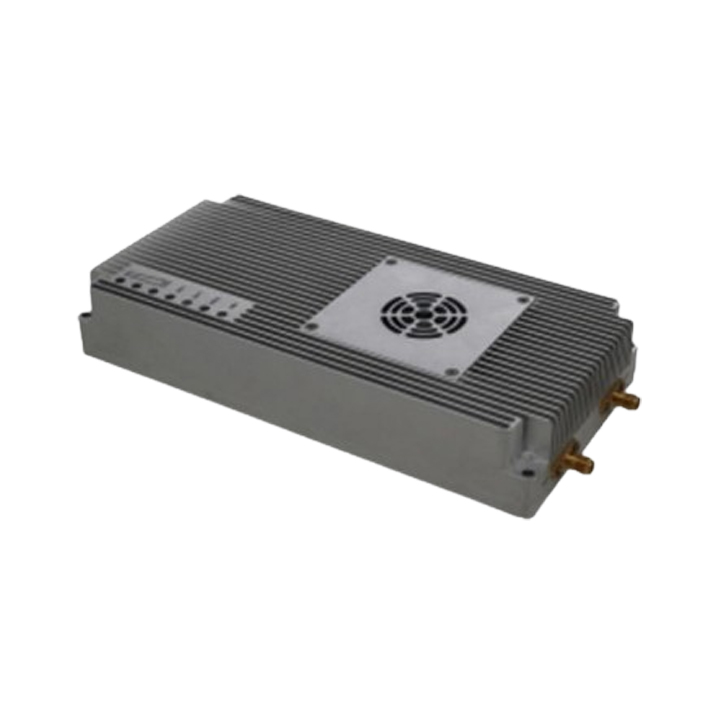

MYD-TDD-FDD Link P40X

MYD-TDD-FDD Link P40X is a versatile dual-mode (TDD/FDD) wireless data link designed for mission-critical applications. It delivers up to 40dBm (10W) of output power across a customizable frequency range, ensuring robust, long-range connectivity with low latency (≤10ms) and AES256 encryption for secure operations.

Category:
Description

Application

MYD-TDD-FDD Link P40X

Product Parameter

System parameter Technical index
Equipment type P40X
Working frequency 1400 – 1460MHz (uplink) (customizable); 1700 – 1760MHz (downlink) (customizable)
Radio frequency channel 2T2R
Output power 40dBm (10W)
Distance 100 KM+ (Air – to – Ground LOS)
Channel bandwidth 10MHz
Modulation mode QPSK, 16QAM
Maximum rate 16Mbps@16QAM3/4
Communication encryption AES256
Transmission delay ≤10ms
Radio frequency interface SMA*2
Power interface XT30PW – M
Device interface Ethernet*2; TTL/RS232*2; RS422*1; SBUS*2/TTL*1
Power consumption Air unit≤66W; Ground unit≤15W
Dimension(L*W*H) 180mm*81mm*29mm
Weight 415g
Working voltage DC 22 – 30V; Typical: 28V@3A
Working temperature -40 – +65°C
