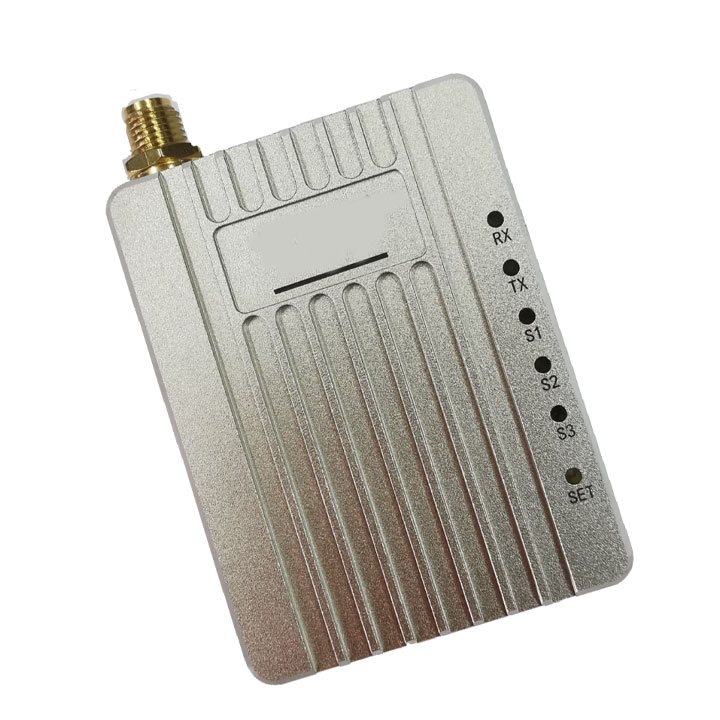

MYD T900-MINI-T05(Dual Serial Ports) 1W Dual Serial Port Wireless T&R Hopping Radio Features
- Frequency range：902-928MHz
- Spread spectrum mode：FHSS
- Serial ports：Dual serial ports
- Data encryption：AES256
- Range of communication：up to 60km
- Output power：1W（30dBm）
- Orifice speed：up to 276.4kbps
- Serial baud rate：up to 921.6kbps
- Working temperature：-40°C ~ +70°C
MYD T900-MINI-T05(Dual Serial Ports) 1W Dual Serial Port Wireless T&R Hopping Radio Parameter
Parameters
- Working frequency
- 902~928MHz
- Modulation
- FSK
- Spread spectrum
- FHSS
- TX power
- 1W（30dBm）
- Working mode
- point-to-point,point-to-multipoint,TDMA
- Data encryption
- AES256
Performance
- Receiving sensitivity
- -106dBm@276.4kbps -107dBm@230.4kbps -108dBm@172.8kbps -109dBm@115.2kbps -110dBm@57.6kbps
- Transmission rate
- 57.6kbps~276.4kbps
- Error detection
- 16-bit CRC,ARQ,ReedSolomon
Interface specifications
- Data interface
- GH1.25-6PIN
- Power interface
- XT30
- Antenna interface
- SMA
Electrical specifications
- Voltage range
- DC7~26V
- System power consumption
- <10W
Physical specifications
- Dimensions(L*W*H)
- 62mm*40mm*13mm
- Weight
- 43.5g
- Working temperature
- -40℃ ~+70℃
