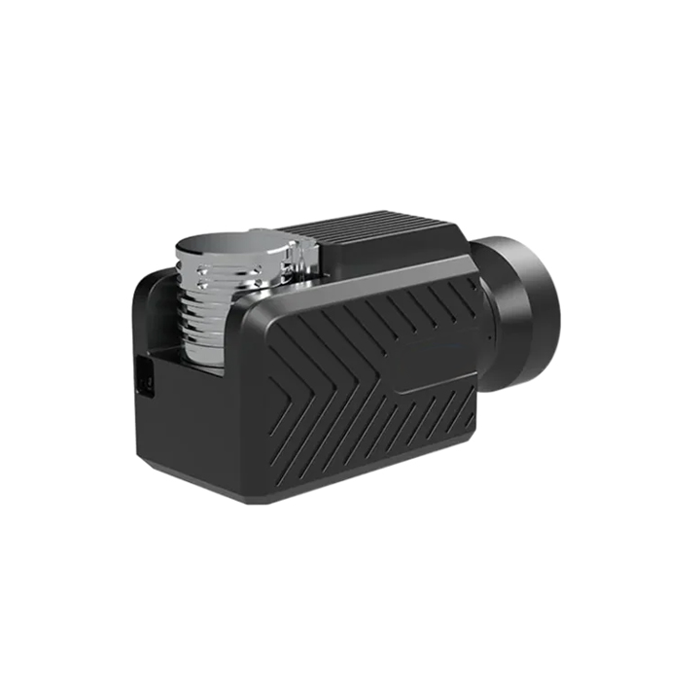

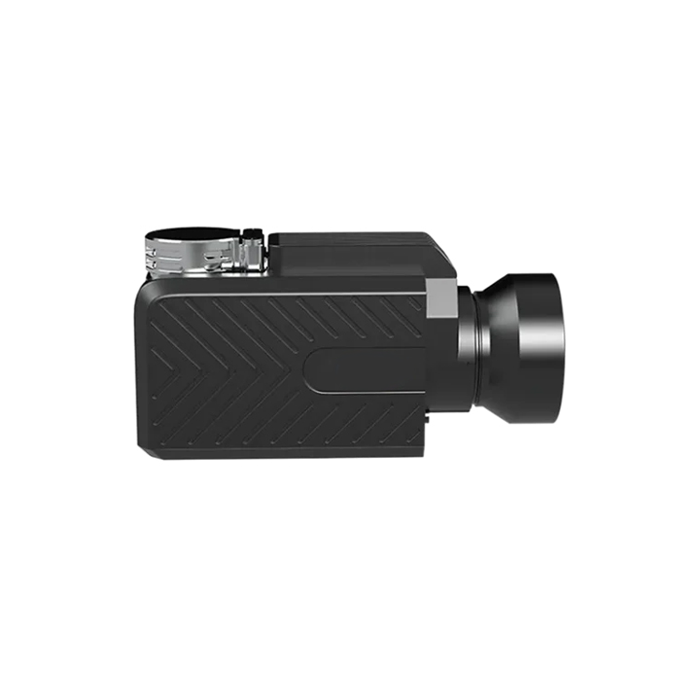

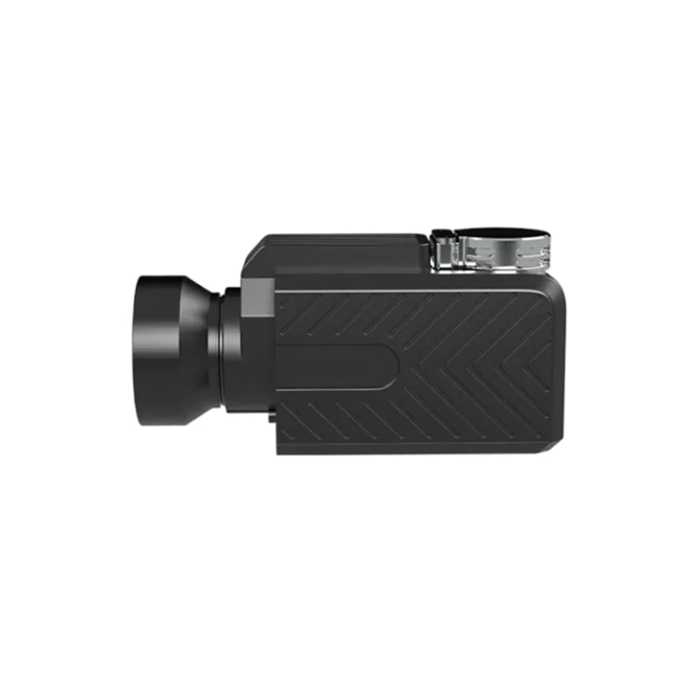

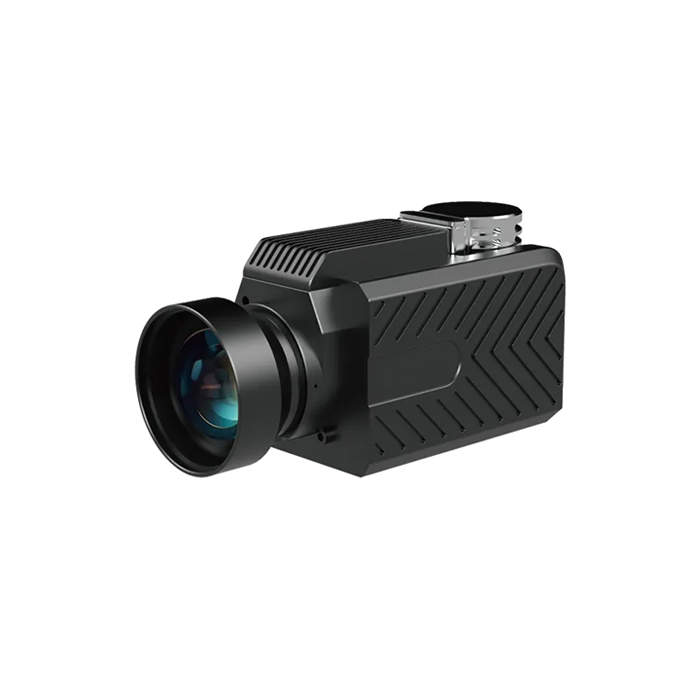

Photon M330B Cooled VOCs Gas Detection Thermal Camera

The sole purpose of the Photon M330B cooled VOCs Gas Detection thermal camera is to identify organic compound (VOC) leaks at wavelengths of 3.3 μm. It transforms invisible gasses into visible infrared pictures and has a low NETD and a high response rate. It is extensively utilized in industries like environmental monitoring, natural gas transportation, and the petrochemical sector. Multiple video output interfaces are supported by the product series, which offers comprehensive solutions for secondary product development of robotics, PTZ, UAVs, and portable devices.

Categories: ,
Description

Feature

1. High-Sensitivity Gas Detection

  • 10mK NETD for exceptional sensitivity
  • Advanced gas imaging algorithms enable:
    • Remote leak detection
    • Micro-leak visualization
    • Clear gas plume imaging

2. Flexible Configuration Options

  • Multiple detector specifications available
  • Various lens options for different scenarios
  • Adaptable to diverse application requirements

3. Developer-Friendly Interfaces

  • Multiple output interfaces:
    • PAL video
    • Camera Link
    • RS422
    • RS422 servo control
    • RJ45 100M Ethernet
  • Supports efficient secondary development

Specification

Performance Indicators
Detector Type Cooled Infrared Detector
Resolution 320×256
Frame Rate 25Hz
F# 1.2
Pixel Pitch 30μm
Spectral Band 3.2±0.2~3.4±0.2μm
NETD ≤10mK@25°C
Cooling Time@25°C ≤5min
Image Adjustment
Palette Support (8 palettes)
Digital Zoom 1.0~4.0× continuous zoom (step size: 0.1)
Image Processing Non-uniformity correction/Pixel defect correction/Digital filtering noise reduction/ Digital detail enhancement/Self-adaptive contrast adjustment
Mirroring Horizontal/Vertical/Diagonal
Interface
Analog Video PAL system (base) (not available for Ethernet port)
Digital Video Camera Link (not available for Ethernet port)
Environment Adaptability
Operating Temperature -20°C~+50°C
Storage Temperature -30°C~+60°C

Application Scenarios

  • Gas Detection
  • Petrochemical industry
  • Environmental Monitoring
  • Gas Transportation

Related products

Photon M615S Medium-Wave Cooled Infrared Module

The high-performance HgCdTe cooled infrared FPA detector and the in-house image processing method are included with the Photon M615 medium-wave cooled infrared module. It has a NETD as low as 15mK and can reach frame rates of up to 100Hz. It works well with continuous zoom and various focus lenses, supports a variety of digital video interfaces, and is frequently used for dynamic loading, sighting distance augmentation, and other purposes. It lowers secondary development expenses by offering a straightforward and user-friendly SDK.

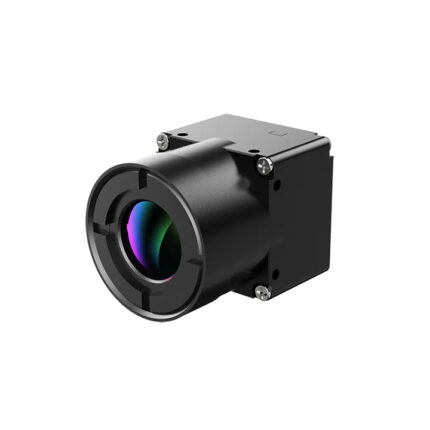

Turing M640 Uncooled Infrared Module (Imaging)

Long-distance monitoring is made possible by the Turing M640 uncooled infrared module's integrated high-sensitivity VOx infrared detector, which offers a consistently high-performance kernel, the best image algorithms, and lens control technology. Numerous application scenarios, including perimeter security, high-altitude observation, forest fire prevention, and water area monitoring, can make extensive use of the device.

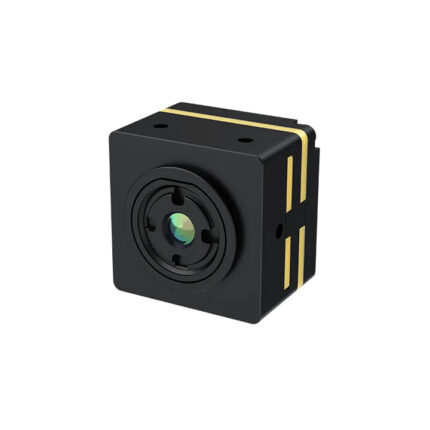

Turing M1280 Uncooled Infrared Module (Temperature Measurement)

A new generation of module components created for experienced users is the Turing M1280 uncooled infrared module. We are in the lead since the employment of self-developed detectors has significantly advanced lightweighting and shrinking. With the benefit of 1280 wide array imaging, the device weighs only 24.5g and measures only 29mm x 29mm. It is the ideal option for fulfilling the requirements for lightweight development when accompanied by a qualified development team.

Photon M615 Medium-Wave HOT Cooled Infrared Module

The high-performance T2SL cooled infrared FPA detector, SWaP-designed, and self-developed image processing algorithm are all included with the Photon M615 medium-wave HOT cooled infrared module. It charts rapidly and operates with flexibility and dependability. It works well with multiple focus and continuous zoom lenses, supports a variety of digital video interfaces, and is frequently used in handheld, micro pod, and other contexts. It lowers secondary development expenses by offering a straightforward and user-friendly SDK.

Keen M615 Uncooled Short-Wave Infrared Module Component

A high-sensitivity InGaAs short-wave infrared detector with a pixel size of 15μm and an array size of 640×512 is used in the Keen M615 short-wave infrared module component. When used with superior image processing methods, it can provide photos that are higher quality and more delicate. The product has a broad dynamic range, low noise level, and low power consumption. Numerous serial connection and video output interfaces are supported. It is extensively utilized in a variety of domains, including laser detection, semiconductor testing, machine vision, and security monitoring.

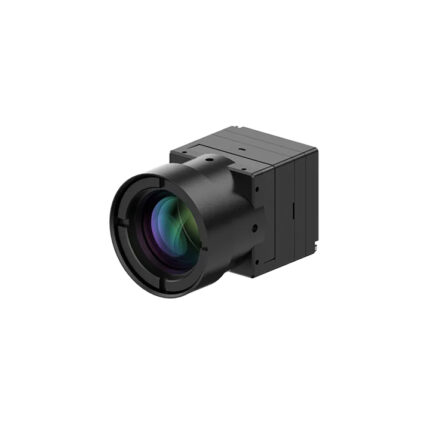

Turing M1280H Uncooled Infrared Module

The outstanding design of the Turing M1280H uncooled infrared module aims to provide great performance and dependability in challenging conditions. The product can consistently provide high-quality infrared photographs in challenging conditions thanks to sophisticated image algorithms. To meet high-performance application needs in sectors like outdoor, security, vehicle-mounted applications, and electro-optical pods, it is outfitted with a variety of extension components and rich lenses.

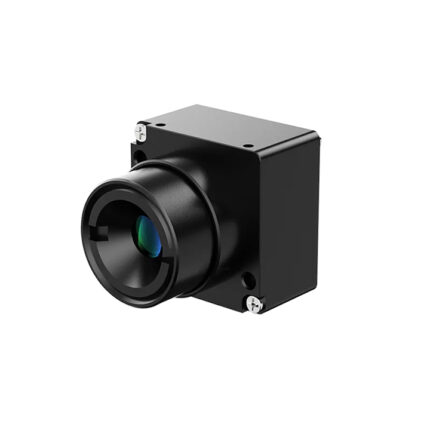

Turing M384 Uncooled Infrared Module (Temperature Measurement)
