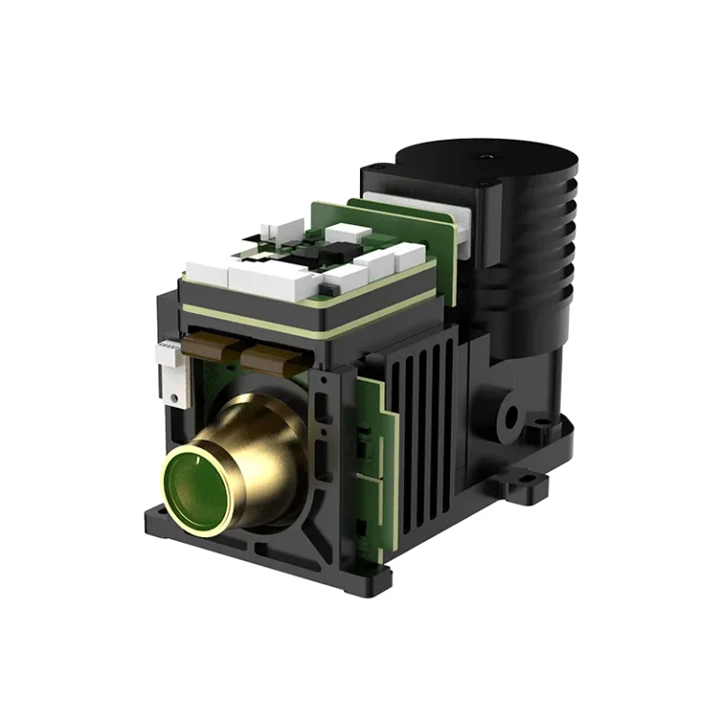

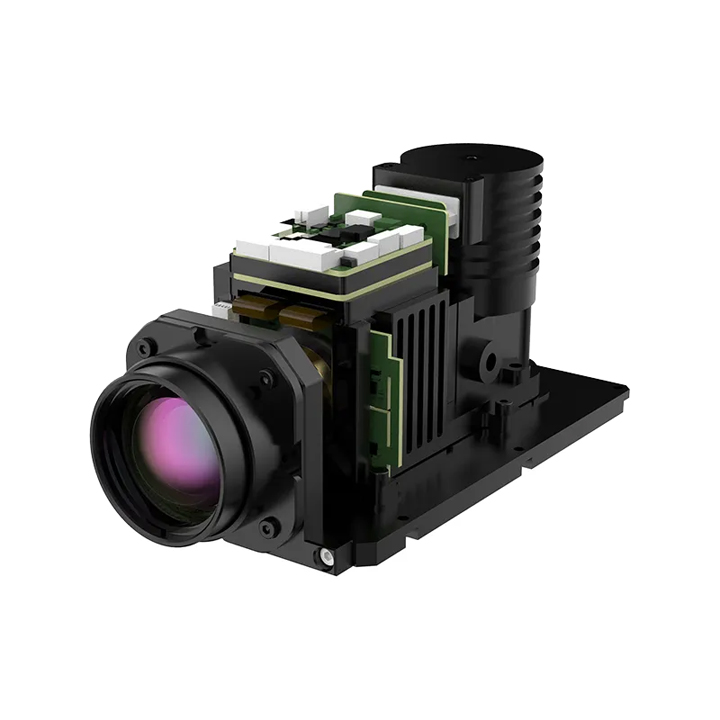

Photon M615 Long-Wave Cooled Infrared Module

The high-performance T2SL cooled infrared FPA detector and the in-house image processing algorithm are included with the Photon M615 long-wave cooled infrared module.
It can reach a frame rate of up to 100 Hz thanks to improved sand and dust penetration and reflected light’s ability to prevent interference.
It works well with various fixed focus and continuous zoom lenses, supports a variety of digital video interfaces, and is frequently used in dynamic loading, sighting distance augmentation, anti-UAV, and other contexts.

It lowers secondary development expenses by offering a straightforward and user-friendly SDK.

Categories: ,
Description

Feature

1. Ultra-Sensitive Thermal Imaging

  • 25mK NETD for exceptional thermal sensitivity
  • Enables clear observation of minute targets at long distances
  • Superior detection of subtle temperature differences

2. Intelligent Image Processing

  • Proprietary imaging algorithm delivers:
    • Enhanced wide dynamic range
    • Adaptive integration time adjustment
    • Optimized image quality across all scenarios

3. Broad Spectral Coverage & Focus Options

  • 7.7-10μm spectral band for comprehensive detection
  • Supports:
    • Multiple fixed-focus lenses
    • Continuous zoom lenses
  • Adaptable to diverse application requirements

4. High-Speed Imaging Performance

  • 640×512 resolution with 100Hz frame rate
  • Enables precise capture of fast-moving targets
  • Ideal for large-area dynamic monitoring applications

Specification

Performance Indicators
Detector Type T2SL Cooled Infrared FPA
Resolution 640×512
Pixel Pitch 15μm
Spectral Band 7.7±0.2μm～10±0.5μm
NETD ≤25mK at 25℃
Operability ≥99.5%
Cooling Time@25°C 7min
Image Adjustment
Brightness/Contrast Adjustment Manual/Auto
Polarity Black-hot/White-hot (white-hot by default)
Reticle Display/Blank/Move
Digital Zoom 1.0~8.0 continuous zoom (step size:0.1)
Image Processing Non-uniformity correction, digital filter noise reduction, digital detail enhancement
Mirroring Horizontal/Vertical/Diagonal
Power Supply
Power Supply Range (typical) 26~32V DC, typical voltage of 28V DC
Interface
Analog Video PAL
Digital Video Cameralink
Serial Communication Interface RS422 (default baud rate: 115200)
Synchronization Mode Internal synchronization (default)/External synchronization/Adaptive synchronization mode
Physical Characteristics
Dimensions (Without lens) 121×75×79mm (±1)
Weight (Without lens) ≤870g
Environment Adaptability
Operating Temperature -40℃～+60℃
Storage Temperature -45℃～+65℃
Temperature Shock -45℃~+65℃（≤5℃/min）
Random Vibration 6.06g
Shock Final peak sawtooth wave, 40g, 11ms (18 times in three axes and six directions in total)
MTTF ≥10000h
Power and Interface
Typical Power Consumption at 25°C Stable power consumption ≤ 12W, peak power consumption ≤ 25W

Application Scenarios

  • Perimeter Surveillance
  • Nature Reserve
  • Handheld Device
  • Vision Enhancement

Related products

Turing M1280 Uncooled Infrared Module

Long-distance monitoring is made possible by the Turing M1280 uncooled infrared module's integrated high-sensitivity VOx infrared detector, which offers a consistently high-performance kernel, the best image algorithms, and lens control technology. Numerous application scenarios, including perimeter security, high-altitude surveillance, forest fire prevention, water area monitoring, and industrial temperature measurement, can make extensive use of the device.

Keen M615 Uncooled Short-Wave Infrared Module Component

A high-sensitivity InGaAs short-wave infrared detector with a pixel size of 15μm and an array size of 640×512 is used in the Keen M615 short-wave infrared module component. When used with superior image processing methods, it can provide photos that are higher quality and more delicate. The product has a broad dynamic range, low noise level, and low power consumption. Numerous serial connection and video output interfaces are supported. It is extensively utilized in a variety of domains, including laser detection, semiconductor testing, machine vision, and security monitoring.

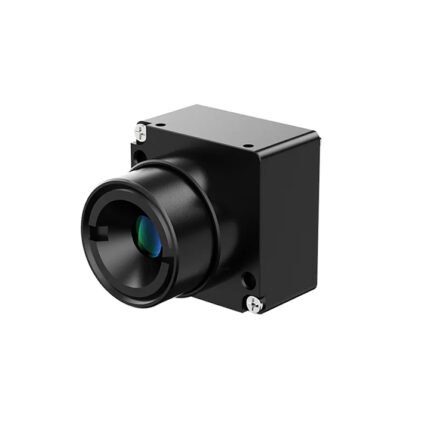

Turing M384 Uncooled Infrared Module (Imaging)

The Turing M384 uncooled infrared module integrates a high-sensitivity VOx infrared detector, delivering a high-performance core, advanced image processing algorithms, and intelligent lens control technology. This combination ensures superior long-range surveillance capabilities. The module is ideal for a variety of applications, including perimeter security, aerial observation, forest fire detection, and maritime monitoring.

Photon M615 Medium-Wave HOT Cooled Infrared Module

The high-performance T2SL cooled infrared FPA detector, SWaP-designed, and self-developed image processing algorithm are all included with the Photon M615 medium-wave HOT cooled infrared module. It charts rapidly and operates with flexibility and dependability. It works well with multiple focus and continuous zoom lenses, supports a variety of digital video interfaces, and is frequently used in handheld, micro pod, and other contexts. It lowers secondary development expenses by offering a straightforward and user-friendly SDK.

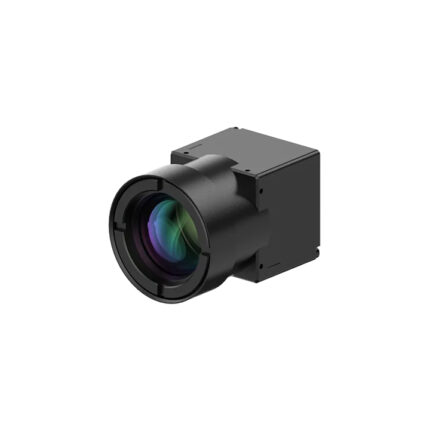

Turing M640 Uncooled Infrared Module (Temperature Measurement)

The Turing M640 uncooled infrared module is made especially for uses where power consumption and size are important considerations. It offers a variety of lightweight infrared lenses, supports several parallel communication and video output interfaces, and is incredibly compact, light, and power-efficient. Small handheld telescopes, helmet night vision devices, light-type unmanned aircraft systems, and driving aids are just a few of the photoelectric items for which this line of imaging-type products can offer complete infrared imaging solutions. Applications for temperature measurement products are numerous and include machine vision, security measurement, and industrial and electrical temperature measurement.

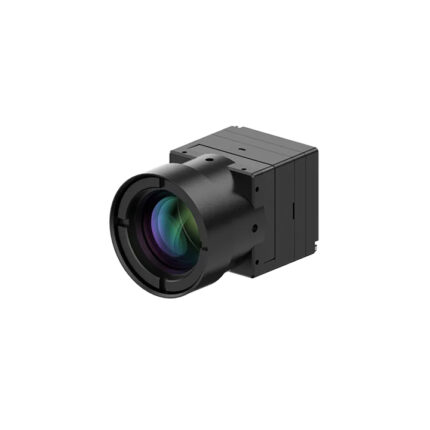

Turing M640H Uncooled Infrared Module

The Turing M640H uncooled infrared module offers reliable answers to high-reliability application scenarios by providing several serialized lenses and a variety of user expansion components. It is extensively used in the domains of driving assistance, integrated pods, and outdoor observation.

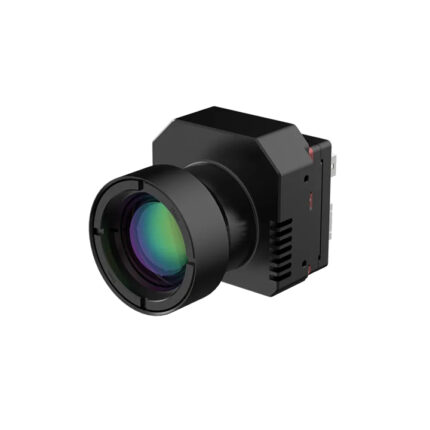

Turing M640 Uncooled Infrared Module (Imaging)
