Photon M615 Medium-Wave HOT Cooled Infrared Module

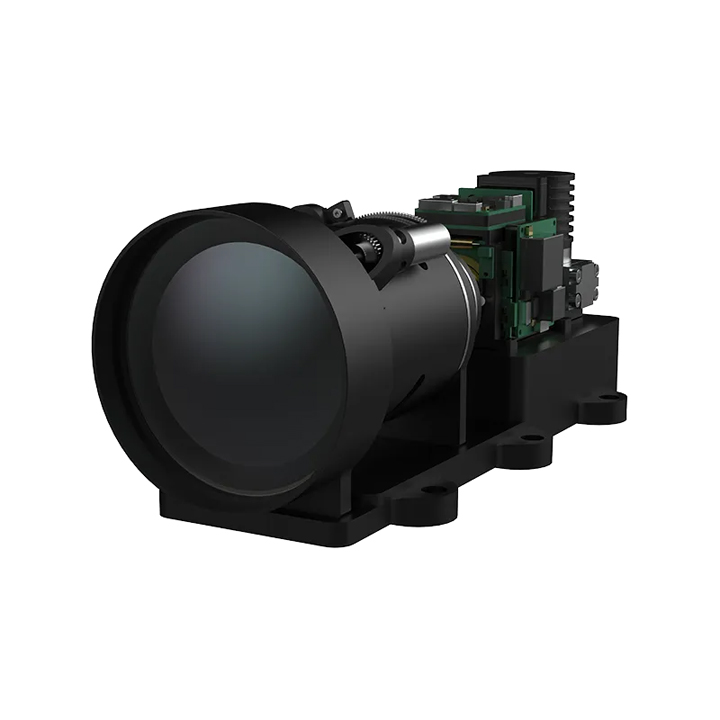

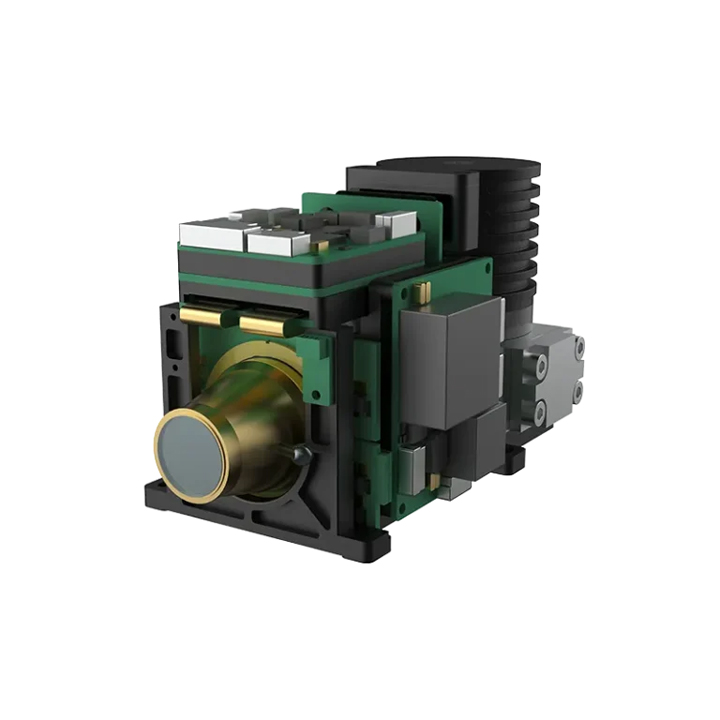

Photon M615S Medium-Wave Cooled Infrared Module

The high-performance HgCdTe cooled infrared FPA detector and the in-house image processing method are included with the Photon M615 medium-wave cooled infrared module.
It has a NETD as low as 15mK and can reach frame rates of up to 100Hz.
It works well with continuous zoom and various focus lenses, supports a variety of digital video interfaces, and is frequently used for dynamic loading, sighting distance augmentation, and other purposes.
It lowers secondary development expenses by offering a straightforward and user-friendly SDK.

Categories: ,
Description

Feature

1. Sensitive and delicate images

Since the NETD is as low as 15 mK, it can observe small targets at long distances.

2. Intelligent Imaging Algorithm Self-Developed

With its innovative self-developed picture algorithm, it offers the optimum imaging effect for various situations by supporting a wide dynamic range and adaptable integral time.

3. Increased Frame Rate for Accurate Recording

The requirements of large-range dynamic target capture are met by the resolution of up to 640×512 and the frame rate of up to 100Hz.

Specification

Performance Indicators
Detector Type HgCdTe cooled infrared detector
Resolution 640×512
Frame Rate 100Hz/50Hz/30Hz
F# F2.0/F4.0
Pixel Pitch 15μm
Spectral Band 3.7±0.2μm～4.8±0.2μm
NETD ≤15mK@25℃
Detector Defective Pixel Rate ≤0.5%
Cooling Time@25°C ≤7min
Image Adjustment
Brightness/Contrast Adjustment Manual/Auto
Polarity Black-hot/White-hot (white-hot by default)
Reticle Display/Blank/Move
Digital Zoom 1.0~8.0 continuous zoom (step size:0.1)
Image Processing Non-uniformity correction, digital filter noise reduction, digital detail enhancement
Mirroring Horizontal/Vertical/Diagonal
Power Supply
Power Supply Range 27~36V DC (with isolation), typical voltage of 28V DC
Power Consumption (Typical, @25°C) Steady status ≤16W, peak ≤35W
Interface
Analog Video PAL
Digital Video Cameralink/SDI
Serial Communication Interface RS422(default baud rate: 115200)
Physical Characteristics
Dimensions (Without lens) ≤ 870g (with isolation)
Weight (Without lens) 144×75×81mm (±1) (with isolation)
Environment Adaptability
Operating Temperature -40℃～+60℃
Storage Temperature -45℃～+65℃
Temperature Shock -45℃~+65℃（≤5℃/min）
Random Vibration 4.2g
Shock Final peak sawtooth wave, 40g, 11ms (18 times in three axes and six directions in total)
MTTF ≥8000h
Storage Life 10 years

Application Scenarios

  • Perimeter Surveillance
  • Nature Reserve
  • Handheld Device
  • Vision Enhancement
