T10 high precision three coordinate active phased array radar Applicable Scene
1.Various types of anti-drone airspace support scenarios;
In the anti-drone scenario, the T series is responsible for large-scale airspace search and target tracking tasks. After detecting a target, the T10 radar guides the telephoto photoelectric system or guides the verification/disposal UAV to identify, confirm and lock the target. Then it is handed over to the strike/disposal system for disposal.
In this application scenario, the high data refresh rate of T series radar 2s/1s, high target capacity 200 batches, high accuracy (azimuth accuracy 0.4, pitch accuracy 0.4, distance accuracy 5 meters) all play a crucial role.
2.Integrated border air defense scenario:
The development of UAV has posed a severe challenge to China’s border security, and put forward the requirements of integrated air-ground supervision for border posts. Active phased array three-coordinate radar + photoelectric integrated equipment + UAV countermeasure system has become the necessary border security equipment.
In this application scenario, many competing radar systems struggle to balance air-to-air detection capabilities with ground detection optimization. However, when focusing on ground detection and clutter processing, they often lose track of aerial targets, failing to achieve both air and ground coverage simultaneously. The T10 radar team employs a proprietary pattern recognition algorithm that optimizes signal processing for both airborne and ground applications. This system automatically selects optimal patterns and parameters for each target, delivering exceptional performance in both air and ground detection capabilities.
3.Airport anti-animal/anti-bird scenario
China has emphasized ecological protection and bird protection for many years. While the ecology of large birds has gradually recovered and prospered, flocks of birds have also posed a threat to the safety of aircraft takeoff and landing at airports.
As an active phased array radar, T10 has the characteristics of long range, clean clutter filtering, strong detection capability of small targets, strong individual resolution of clustered targets, large target capacity and high tracking accuracy.
The T10 radar has also developed a unique 1s/ circle high speed target tracking operation mode, which is particularly suitable for small high speed target detection needs.
4.Special operations, investigation scene
The T10 product’s lightweight design, low power consumption, and self-calibration capabilities make it ideal for mobile power supply applications in armed reconnaissance scenarios. The radar unit weighs 12.5Kg with a rotating platform 13.8Kg, while the entire system consumes no more than 300W. This allows it to operate for 3.5 hours using a standard 1 kWh portable power supply, effectively monitoring airspace and ground targets within a 12-kilometer radius. The system provides comprehensive surveillance for personnel, vehicles, and various aerial targets.
The T10 radar has been in service for a long time in frontier plateau at 5000 meters, southwest tropical rainforest and high temperature desert environment with stable and excellent performance.
5.Mobile deployment scenario for vehicles
The T10 radar features a quick-connect design with self-locking clips between the radar unit and the swivel arm, enabling installation within 10 seconds. This configuration makes it ideal for daily use scenarios where the swivel arm remains securely mounted on a vehicle while the radar unit is stored in a safe, allowing easy deployment whenever needed.
T10 high precision three coordinate active phased array radar Technical Indexes
1)Operating frequency: X-band
2)Operating system: azimuth mechanical scanning, elevation digital beamforming (DBF) system;
3)Optional working frequency points: 4;
4)Elevation phase scanning coverage (elevation field of view): -5-40°;
5)Square scanning coverage (horizontal field angle):360°;
6)Radar coverage height:≥1000m;
7)Detection range:
≥3.5Km（DJI mini3Pro,249g,UAV RCS=0.0025M2）；
≥5Km(DJI Phantom 4 UAV RCS=0.01M2）；
≥8Km(personnel RCS=0.5M2）；
≥12Km(helicopter, vehicle RCS=5M2);
8)Angle measurement accuracy:azimuth:≤0.4°(RMS),elevation:≤0.4°(RMS);
9)Distance measurement accuracy:≤5m (RMS);
10)Blind area:≤50m;
11)Antenna speed: standard mode 30RPM/60RPM;
12)Target batch number of simultaneous tracking: ≥ 200 batches;
13)Radial velocity range: 1~200m/s;
14)Excellent anti-clutter ability, common clutter does not cause false alarm;
15)Power consumption:≤300W;DC30~52V/AC 220V ;
16)Communication interface: Gigabit Ethernet;
17)Environmental adaptability: working temperature:-40~55℃,protection grade:IP65;
19)Weight radar host12.5Kg;Turntable 13.8Kg, tripod 12Kg;
20)Radar host size: 580mm*500mm*75mm
T10 high precision three coordinate active phased array radar Product Advantages
1. Ultra-high data rate and strong tracking capability. The radar supports the standard azimuth scanning speed of 180/s, which can be upgraded to the high-speed operation mode of 360/s, easily coping with small high-speed targets.
2. Low false alarm probability. By using the adaptive clutter suppression algorithm, it can automatically match and track the changes of environmental characteristics, and effectively filter the false alarm caused by environmental clutter such as trees, crops, clouds and rain, and waves. It has far better detection performance than similar products under bad weather and complex terrain conditions.
3. Integrated open space. It can simultaneously complete the security of detection airspace and the observation and alert functions of the ground battlefield, complete the battlefield situation awareness in one stop, and maintain the search and tracking of UAVs, personnel and vehicles.

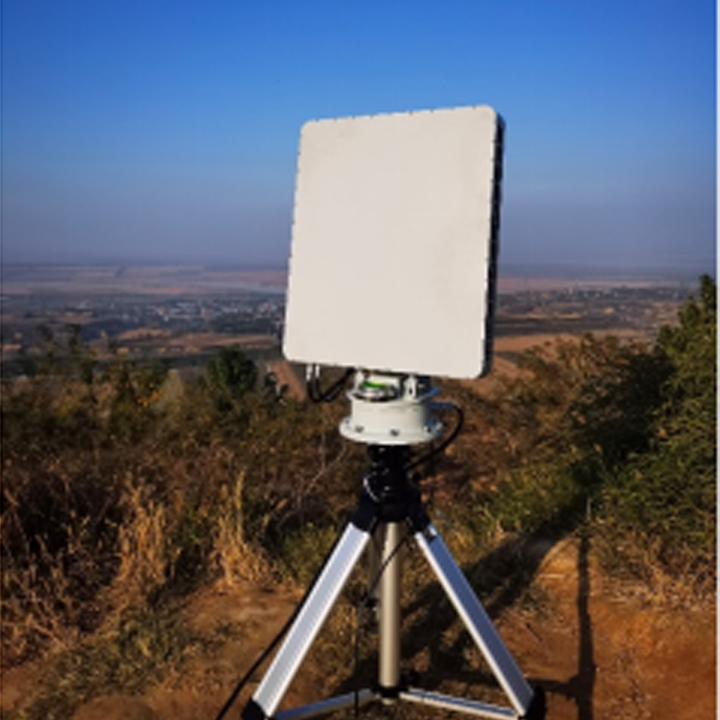

4. Small size and light weight. Radar host 12.5Kg; turntable 13.8Kg, tripod 12Kg; one person can carry the whole set of equipment to the high point, complete the erection and carry out detection work.
5. Ultra-low power consumption and low interception rate. The power consumption of T10 radar is only 260W, which can be supported by portable outdoor mobile power supply for long-term operation; the radar radiation power is less than 20W, which has a very low radar signal interception probability and greatly enhances the radar concealment.
6. Wide detection range and high precision. The radar enables the DJI Phantom 4 drone to track targets over 5km (actual measurements show 6-8 km under varying conditions), covering altitudes above 1000 meters with a pitch angle range of-5° to 40°. The system achieves 0.4-degree accuracy in azimuth and pitch measurements, allowing the electro-optical system to precisely track small targets.
7. Shielded area and alert area can be set up to realize target boundary alarm, alarm log recording and playback;
8. Simple interface and user-friendly operation. The radar system provides built-in network communication protocols for integration with client control systems. Its host computer software supports the ONVIF Automatic Pan-Tilt Protocol, enabling optical-electronic pan-tilt units to perform target tracking. The software also incorporates a digital map system, allowing operators to freely select and download digital maps from any platform. It supports animated display of radar positions, beam patterns, target locations, and trajectories.
