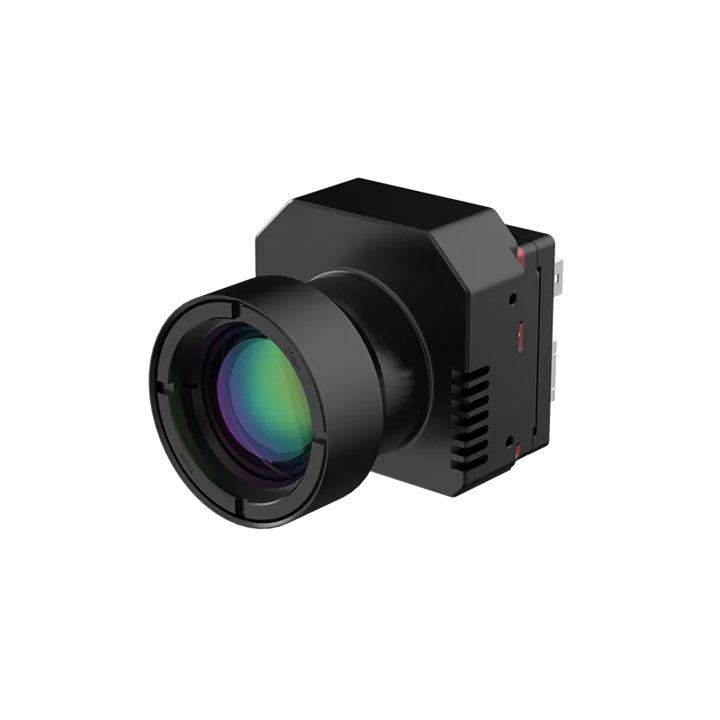

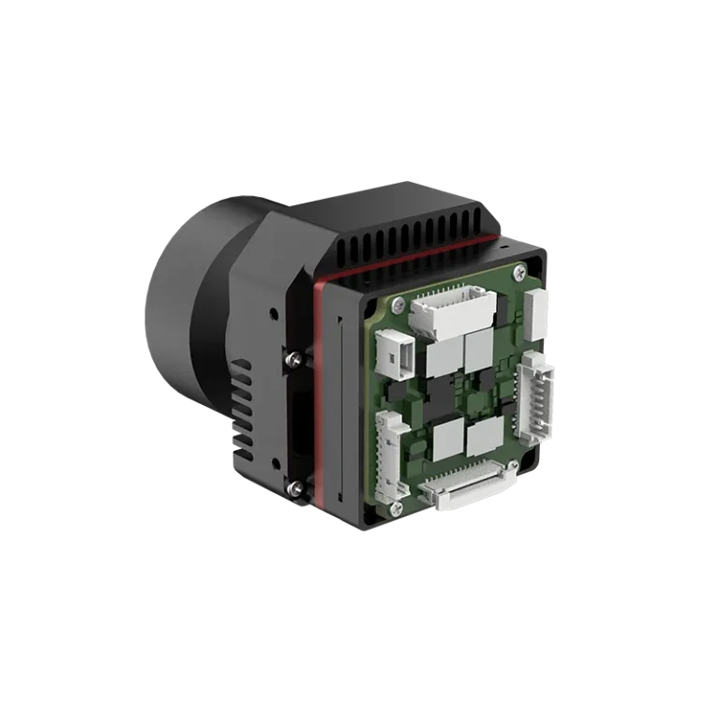

Turing M640 Uncooled Infrared Module (Temperature Measurement)

With its integrated high-sensitivity VOx infrared detector, the Turing M640 uncooled infrared module offers high-accuracy temperature measurement algorithms, ultimate image algorithms, and a consistently high-performance kernel.
Applications for the goods include rail transportation, industrial temperature measuring, forest fire prevention, and security monitoring.

Categories: ,
Description

Feature

1. All-Scenario & Multi-Application Support

  • Wide FOV range (15°–100°) for accurate temperature measurement in any scenario.
  • Supports both digital and networked applications, ensuring seamless integration across diverse environments.

2. Stable, Precise & Reliable Performance

  • Next-generation image processing algorithms optimized for forests, marine, sky, and harsh weather (rain, fog, etc.), delivering sharp, high-contrast thermal images.
  • Full-array temperature data output for in-depth thermal analysis and secondary processing.

3. Multiple Video Interfaces for Easy Integration

  • Flexible video outputs: BT.601, BT.1121, with optional expansions (SDI, USB, Cameralink, HDMI).
  • Comprehensive SDK support simplifies development, reducing integration time and costs.

Specification

Performance Indicators
Detector Type Uncooled VOx infrared detector
Resolution 640×512
Detector Frame Rate 25Hz
Pixel Pitch 12μm
Spectral Band 8~14μm
NETD ≤40mK at 25℃,F#1.0
Image Adjustment
Palette Support (20 types)
Digital Zoom 1.0~8.0× continuous zoom (step size: 0.1)
Image Processing Non-uniformity correction/Brightness and contrast adjustment/Temporal filtering/Spatial filtering noise reduction/Digital detail enhancement/Style adjustment
Mirroring Horizontal/Vertical/Diagonal
Network Function
Network Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, IGMP, SMTP, NTP, QoS and other network protocols.
Platform Access Support Modbus TCP, MQTT protocols, ONVIF, GB28181, and SDK
Simultaneous Previewed Videos Up to 8 channels
User Management Up to 20 users, 3 levels: administrator, operator and user
Browser Google, Firefox, Edge, etc.
Intelligent Functions
Intelligent Video Support
Intelligent Alarm Support abnormality detection and linkage alarm for network cable disconnection, IP address conflict, memory error, and illegal access
Intelligent Detection Supports intelligent analysis of events such as regional intrusion, tripwire intrusions and passenger and vehicle recognition.
Alarm Linkage Video taking/Image capture (thermal image capture supported)/Email/Linked PTZ/Alarm output
Lens
Lens Type Athermalized/Prime electric focus
Focus Mode Manual/Automatic
Electric Focusing Support
Electric Zooming /
Digital
Power Supply Range 5-24V DC (Recommended voltage of 12V DC)
Typical Power Consumption at 25°C ＜1.5w
Digital Video LVCMOS/BT.601/BT.1120
Communication Interface RS-232/UART
Network Type
Power Supply Range 12V DC ±10%
Typical Power Consumption at 25°C ＜2.4w (Typical, @25°C)
Communication Interface One RJ45 10M/100M adaptive Ethernet port, one RS-485, one UART
Alarm Interface 1-channel alarm input, 1-channel alarm output
Audio Interface 1-channel audio input, 1-channel audio output
Interface
Analog Video 1-channel PAL system
Environment Adaptability
Operating Temperature -40℃～+70℃
Storage Temperature -45℃～+85℃
Humidity 5-95%, non-condensing
Product Certification RoHS2.0
PTZ Function
Fire Warning Supports fire point detection.
Thermal Imaging
Measurement Range -20℃~﹢150℃, 0℃~﹢650℃
Measurement Accuracy ±2°C or 2% (The greater shall prevail)@ambient temperature -20°C ~ +60°C

Application Scenarios

  • Railway Inspection
  • Fire Rescue
  • Industrial Temperature Measurement
  • Security Monitoring
