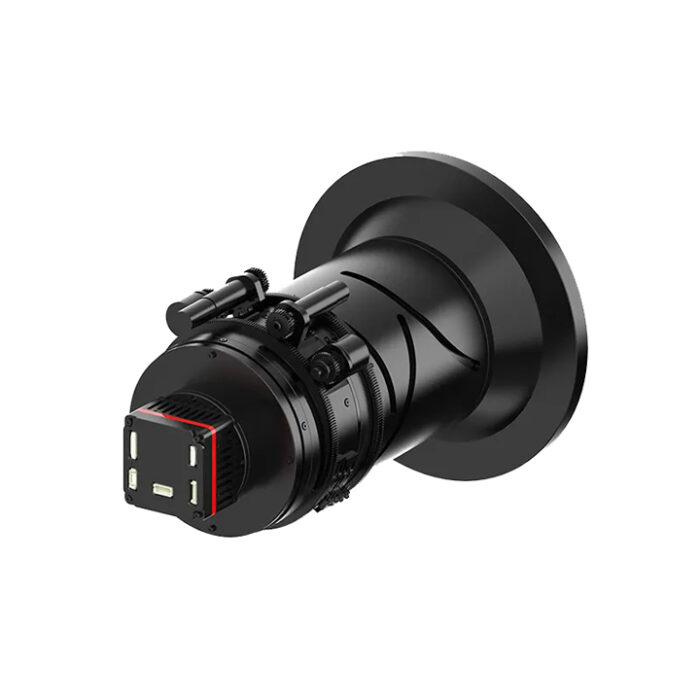

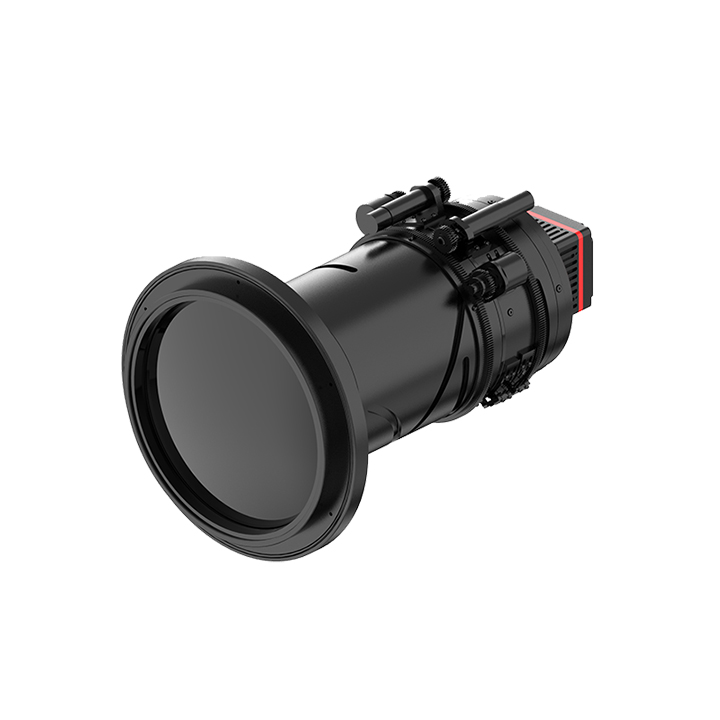

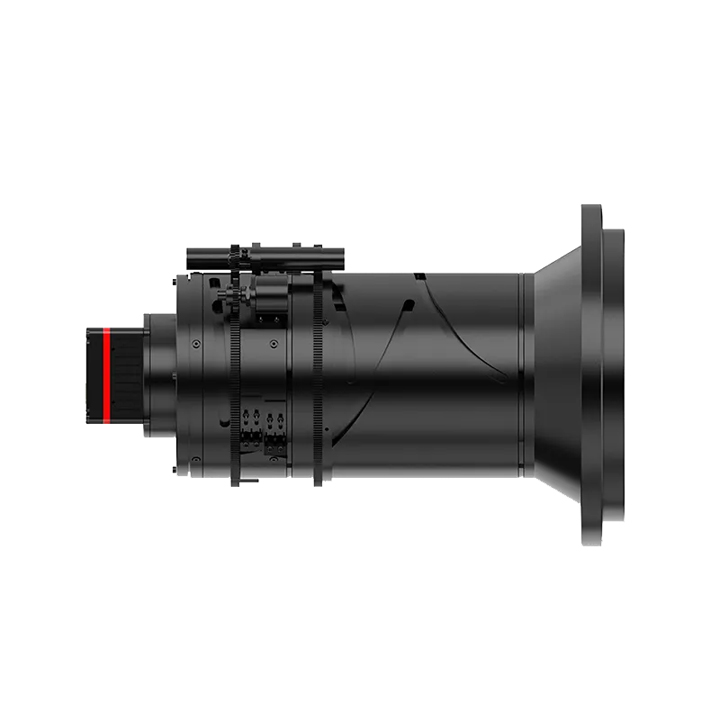

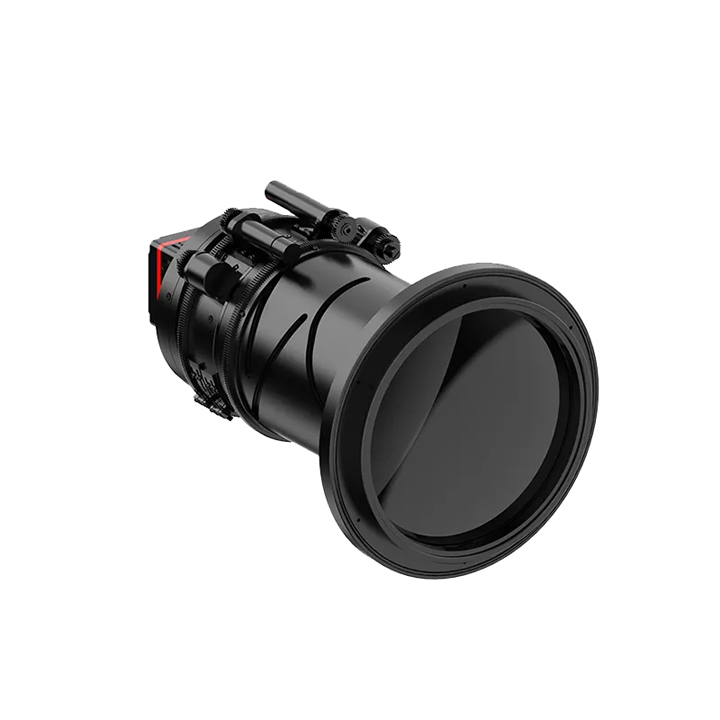

Turing M1280 Uncooled Infrared Module

Long-distance monitoring is made possible by the Turing M1280 uncooled infrared module’s integrated high-sensitivity VOx infrared detector, which offers a consistently high-performance kernel, the best image algorithms, and lens control technology. Numerous application scenarios, including perimeter security, high-altitude surveillance, forest fire prevention, water area monitoring, and industrial temperature measurement, can make extensive use of the device.

Categories: ,
Description

Feature

1. Superior Detection Capabilities

  • Integrated high-sensitivity VOx microbolometer detector
  • Combines high-performance processing core with advanced imaging algorithms
  • Features intelligent lens control technology for superior long-range observation
  • Versatile application scenarios:
    • Critical infrastructure perimeter protection
    • Aerial surveillance and reconnaissance
    • Early wildfire detection systems
    • Maritime and coastal monitoring
    • Non-contact industrial thermography

2. Intelligent Image Processing

  • Next-generation adaptive image enhancement algorithms
  • Environment-specific optimizations for:
    • Woodland and dense vegetation
    • Marine and aquatic environments
    • Sky-dominated backgrounds
    • Low-visibility conditions (precipitation, fog, haze)
  • Delivers exceptional image clarity and detail

3. Advanced Optical Solutions

  • Comprehensive lens system support:
    • Temperature-stabilized fixed lenses
    • Motorized focus prime lenses
    • High-ratio continuous zoom optics
  • Smart focus functionality:
    • Precision electronic focus control
    • Seamless zoom operation
    • Intelligent auto-focus system
    • Dynamic focus compensation

4. Flexible System Integration

  • Multi-format video interfaces:
    • Standard: GigE, LVCMOS, BT.1120
    • Optional: 3G-SDI, USB3.0, CameraLink, HDMI
  • Developer resources:
    • Comprehensive software development kit
    • Accelerated integration process
    • Streamlined application development
    • Reduced total cost of implementation

Specification

Performance Indicators
Detector Type Uncooled VOx infrared detector
Resolution 1280×1024
Detector Frame Rate 30Hz
Pixel Pitch 12μm
Spectral Band 8~14μm
NETD ≤50mK@25℃,F#1.0
Image Adjustment
Palette Support (20 types)
Digital Zoom 1.0~4.0× continuous zoom (step size: 0.1)
Brightness/Contrast Adjustment Manual/Auto 0/Auto 1
Image Processing Non-uniformity correction/digital filter noise reduction/digital detail enhancement
Mirroring Horizontal/Vertical/Diagonal
Network Function
Network Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, IGMP, SMTP, NTP, QoS, and other network protocols.
Platform Access ONVIF, GB28181, SDK
Simultaneous Previewed Videos Up to 20 channels
User Management Up to 20 users, 3 levels: administrator, operator and user
Browser Supports IE8+ and various languages.
Intelligent Functions
Fire Point Detection Support
Intelligent Video Support
Intelligent Alarm Abnormality detection for network cable failure, IP address conflict, full memory, memory error and illegal access, and linkage alarm.
Intelligent Detection Supports Tripwire and regional intrusion detections, and other intelligent video analysis functions.
Alarm Linkage Video taking/image capture/Email/linked PTZ/alarm output
Lens
Lens Type Athermalized/Motorized fixed-focus /Continuous zoom
Focus Mode Manual/Automatic
Electric Focusing Support
Electric Zooming Support
Digital
Power Supply Range 5-24V DC (Recommended voltage of 12V DC)
Typical Power Consumption at 25°C ＜2.6W
Digital Video LVCMOS/LVDS/BT.1120/SDI
Communication Interface RS-232/RS-485
Weight 168±10g (without lens)
Size 55mm×55mm
Network Type
Power Supply Range 12V DC ±10%
Typical Power Consumption at 25°C ＜3.8W
Communication Interface One RJ45 10M/100M adaptive Ethernet port, one RS-485
Alarm Interface One alarm input, one alarm output
Audio Interface One audio input, one audio output
Weight 220±10g (without lens)
Size 55mm×55mm
Interface
Analog Video 1-channel PAL system
Environment Adaptability
Operating Temperature -40℃～+60℃
Storage Temperature -45℃～+85℃
Humidity 5-95%, non-condensing
Product Certification RoHS2.0

Application Scenarios

  • Perimeter Surveillance
  • Forest Fire Prevention
  • Industrial Temperature Measurement
  • Security Monitoring
