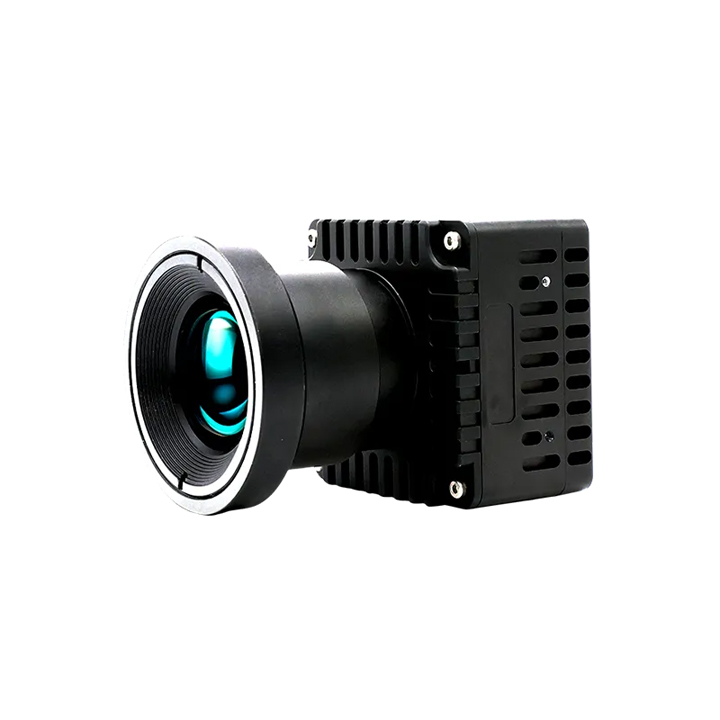

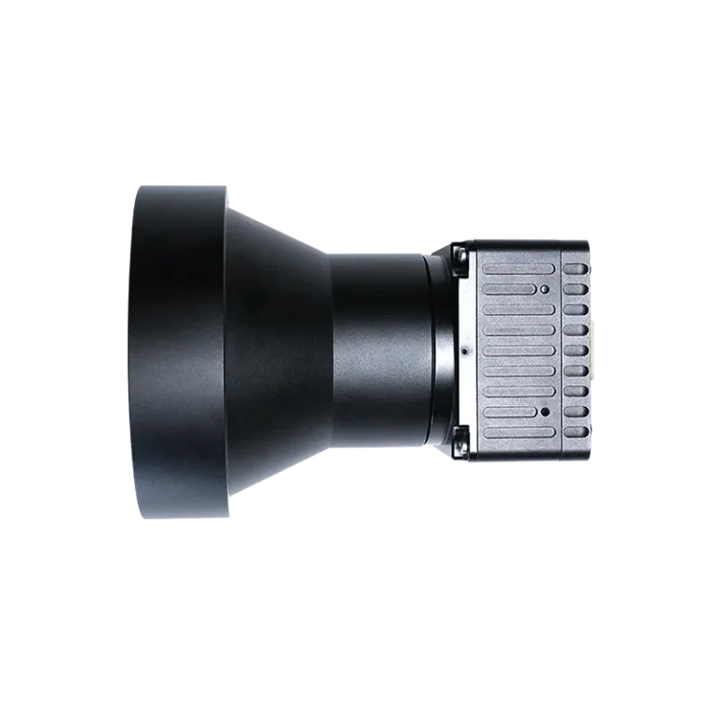

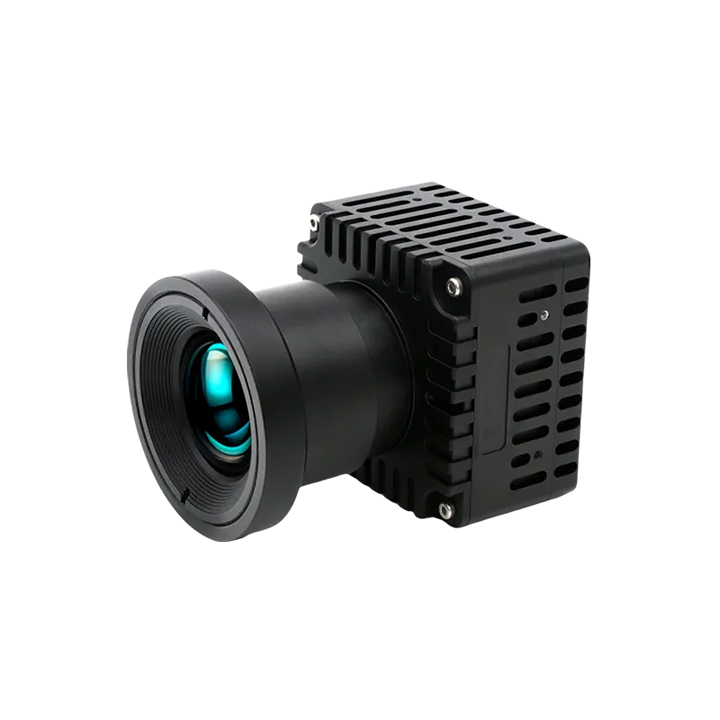

Turing M1920 HD Uncooled Infrared Module

The brand-new Turing M1920 is equipped with the world’s first 8μm 1920×1080 HD infrared detector, and the NETD as low as 30mK. Combined with our self-developed efficient large-array image algorithm, the device provides customers with more subtle, sharper, and clearer thermal images. It supports multiple lenses and applies the lens control technology, offering a comprehensive observation solution within a range of 1m~15000m in fields such as perimeter security, high-altitude observation, oil field monitoring, forest fire prevention and scientific research in universities

Categories: ,
Description

Feature

1. Ultra-HD Imaging & Seamless Integration

  • 2MP resolution (1920×1080) with wide FOV for immersive monitoring
  • Multi-interface support: GigE, LVCMOS, BT.1120, MIPI (expandable to SDI, USB3.0, Camera Link, HDMI)
  • Gigabit Ethernet + comprehensive SDK for fast, low-cost integration

2. Instant Focus & Rapid Target Acquisition

  • ≤1s autofocus with full-temperature stability
  • 50ms ultra-fast recognition for real-time response

3. Multi-Lens Flexibility & Wide Applications

  • 82° max FOV athermal lenses, motorized primes, and continuous zoom options
  • 8μm high-res detector for long-range detection in:
    • Perimeter security
    • Aerial surveillance
    • Oil/gas infrastructure monitoring
  • Adaptive image presets optimized for forests, coastlines, and other challenging environments

4. Unshakable Performance

  • 30Hz stable video output for smooth, uninterrupted monitoring
  • EIS (Electronic Image Stabilization) maintains clarity during high winds or platform vibration

Specification

Performance Indicators
Detector Type Uncooled VOx infrared detector
Resolution 1920×1080
Detector Frame Rate 30Hz
Pixel Pitch 8μm
Spectral Band 8~14μm
NETD ≤30mK@25°C, F#1.0
Electronic Anti-shake Support
Fire Alarm Support
High Light Protection Support
Image Adjustment
Palette Support (20 types)
Digital Zoom 1.0~8.0× continuous zoom (step size: 0.1), supporting zooming in any area
Image Processing filtering noise reduction/Digital detail enhancement/Image style switch, Non-uniformity correction/Brightness and contrast adjustment/Temporal filtering noise reduction/Spatial
Mirroring Horizontal/Vertical/Diagonal
Network Function
Network Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, IGMP, SMTP, NTP, QoS, and other network protocols.
Platform Access ONVIF, GB28181, SDK
Browser Chrome, Edge, Firefox, etc. in various languages
Intelligent Functions
Intelligent Alarm Abnormality detection and linkage alarm for network cable disconnection, IP address conflict, full memory, memory error, illegal access
Intelligent Detection Tripwire, regional intrusion, target tracking, and other intelligent video analysis functions
Alarm Linkage Video taking/image capture/Email/linked PTZ/alarm output
Intelligent Video Taking Support
Lens

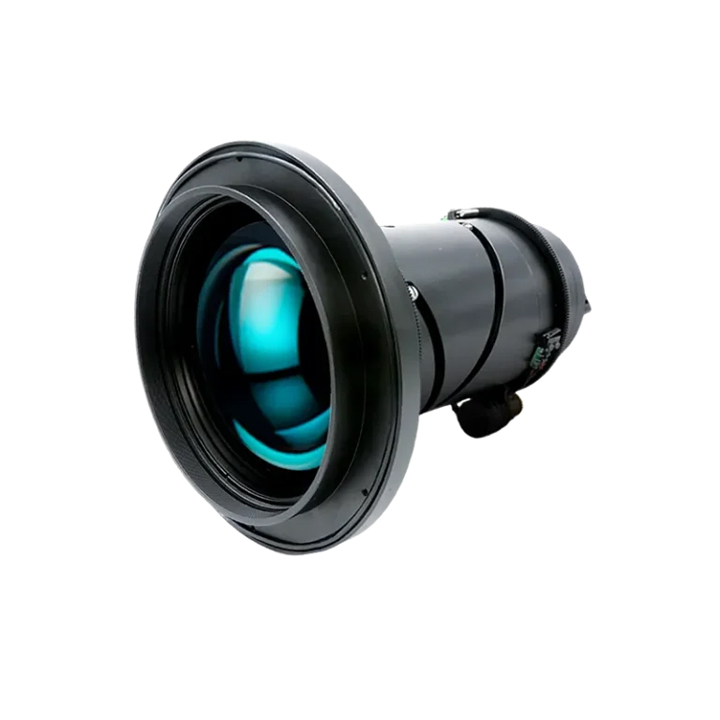

Lens Type Athermalized/Motorized fixed-focus /Continuous zoom
Focus Mode Manual/Automatic (focus time ≤ 1s near clear points)
Electric Focusing Support
Electric Zooming Support
Digital
Power Supply Range 5-24V DC (12V DC recommended)
Typical Power Consumption at 25°C ≤3.8W
Digital Video LVCMOS/BT.1120/MIPI,withextensionsforSDI,USB,CameraLink,HDMI
Communication Interface RS-232/RS-485
Weight 165g±5g (without lens)
Dimensions 55mm×55mm
Network Type
Power Supply Range 12V DC ±10%
Typical Power Consumption at 25°C ≤6.5W
Communication Interface One 10M/100M/1000M adaptive Ethernet port, one RS-485
Alarm Interface 1-channel alarm input, 1-channel alarm output
Audio Interface 1-channel audio input, 1-channel audio output
Weight 240±10g (without lens)
Dimensions 55mm×55mm×53mm
Environment Adaptability
Operating Temperature -40°C～+70°C
Storage Temperature -45℃～+85℃
Humidity 5-95%, non-condensing
Product Certification RoSH2.0

Application Scenarios

  • Perimeter Security
  • High-altitude Observation
  • Oil Field Monitoring
  • Forest Fire Prevention
