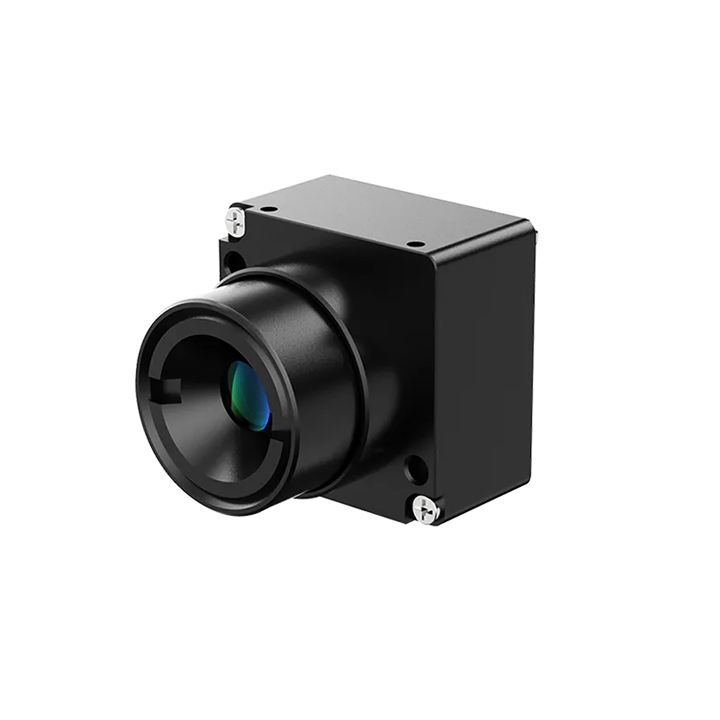

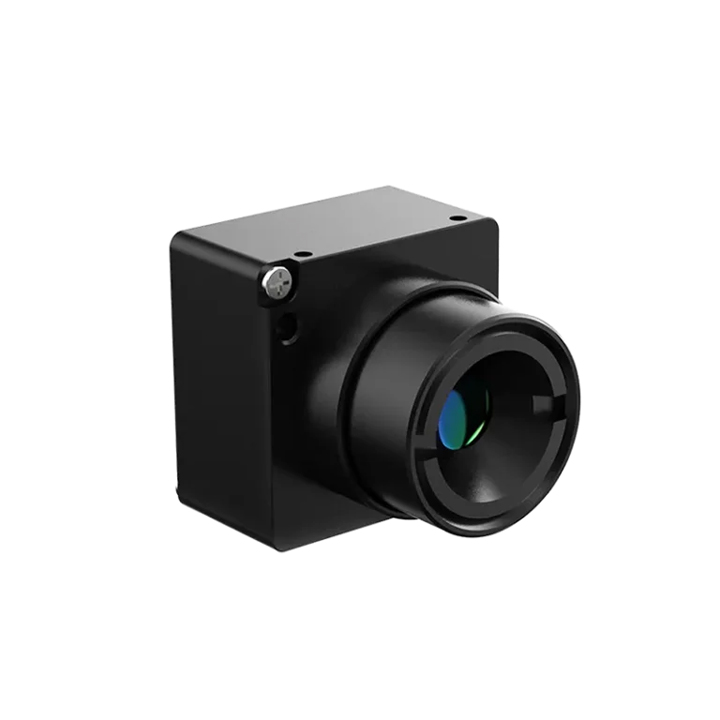

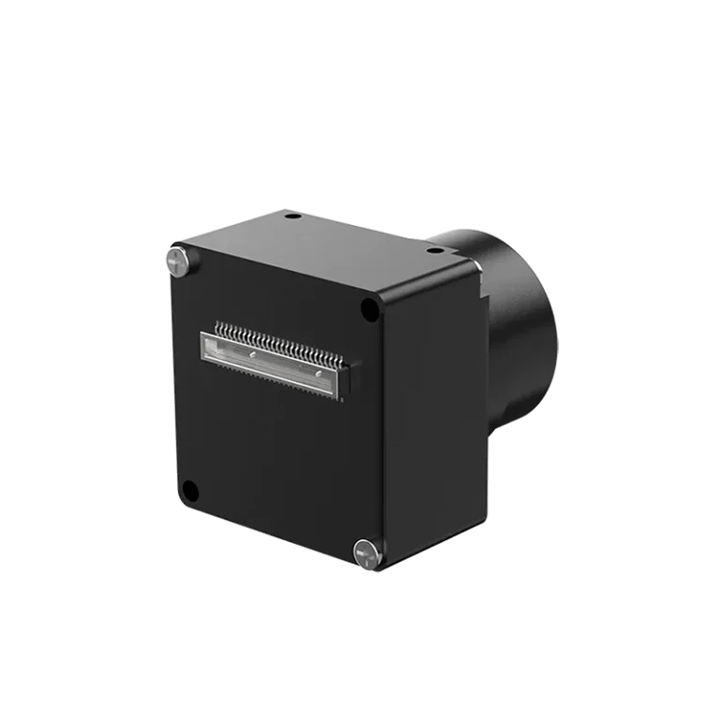

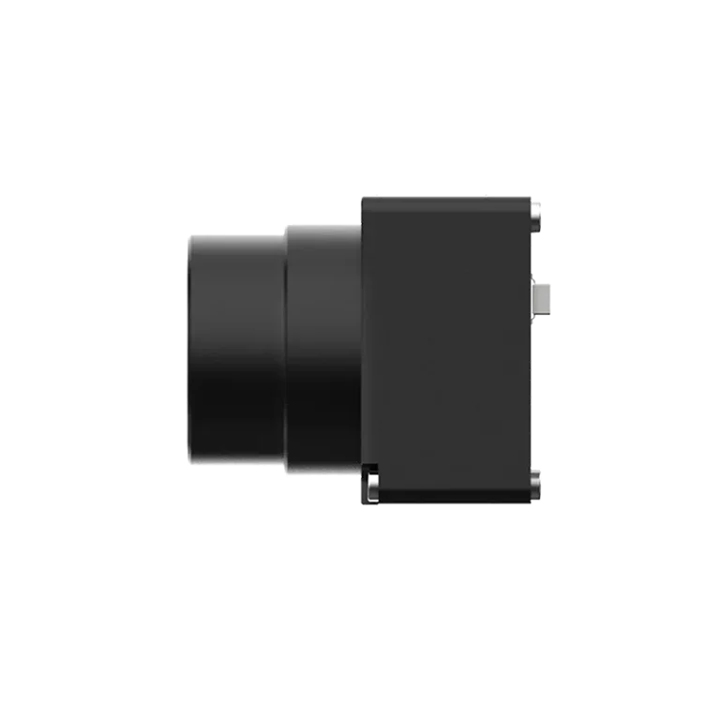

Turing M384 Uncooled Infrared Module (Temperature Measurement)

With additional technological advancements, the Turing M384 uncooled infrared module has redefined the new weight, dimensions, and power consumption (SWaP2) standard in the infrared OEM module market.
It offers superior compact high-resolution solutions for consumer items and satisfies professional needs in the domains of routine inspection, security, search and rescue, and industrial monitoring.

Categories: ,
Description

Feature

1. Optimized SWaP3 Design

  • Compact & lightweight: 18×18mm form factor, just 3.5g
  • Low-cost thermal solution with 384×288 resolution
  • Ideal for space-constrained and budget-sensitive applications

2. Seamless Imaging Performance

  • Shutterless operation ensures uninterrupted streaming
  • Advanced correction algorithms deliver stable, flicker-free imagery

3. Flexible Configuration Options

  • Wide FOV range (10°~90°) for diverse scene requirements
  • Multi-interface support: MIPI, USB, BT.656, analog video
  • Programmable architecture enables:
    • Custom function development
    • High adaptability to specialized use cases
    • Field-upgradable firmware

Specification

Performance Indicators
Detector Type Uncooled VOx infrared detector
Resolution 384×288
Detector Frame Rate 25Hz
Pixel Pitch 12μm
Spectral Band 8~14μm
NETD ≤50mK at 25°C (≤40mK, optional)
Image Adjustment
Brightness/Contrast Adjustment Manual/Auto
Polarity Black-hot/White-hot
Palette Multiple types support
Reticle Display/Blank/Move
Image Processing TEC-less temperature control algorithm, digital filtering noise reduction, and digital detail enhancement.
Mirroring Horizontal/Vertical/Diagonal
Power Supply
Power Supply Range (typical) 3.8～5.2VDC / 1.8V / 3.3V
Typical Power Consumption at 25°C Without Extension ≤0.25W (Typical, @25°C, Without Extension)
Interface
Digital Video BT.656/BT.1120/LVCMOS
Serial Communication Interface UART
Extension Components USB 2.0 / Analog video
Temperature Measurement Performance
Measurement Range For measurement series, -20°C~+550°C (+650°C customizable)
Measurement Accuracy For measurement series, ±3°C or ±3% of reading (The greater shall prevail) at Ambient temperature of -20°C~+60°C±2°C (optional)
Measurement Tool Temperature measurement series: Secondary analysis of points, lines, and areas
Physical Characteristics
Dimensions (Without lens and extension components) 18×18mm
Weight (3.2mm, without extension components) 3.5g
Lens Model 2.88mm, 5.3mm, 10.4mm, 19mm, expandable to 45mm
Environment Adaptability
Operating Temperature -40°C~+80°C (-20°C~60°C measurement)
Storage Temperature -45℃～+85℃
Humidity 5 ~ 95%, non-condensing
Product Certification RoHS

Application Scenarios

  • Fire Rescue
  • Security Monitoring
  • UAV Pod
  • Wearable Device
