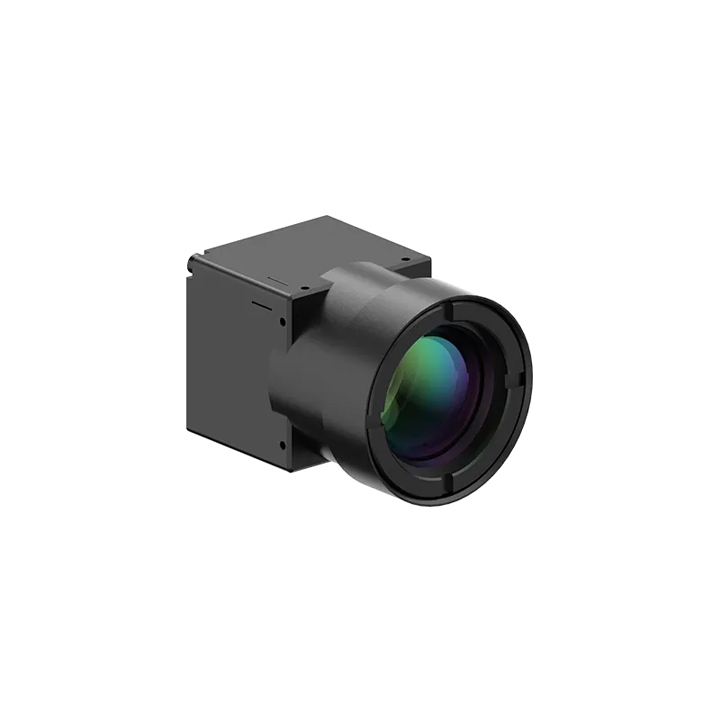

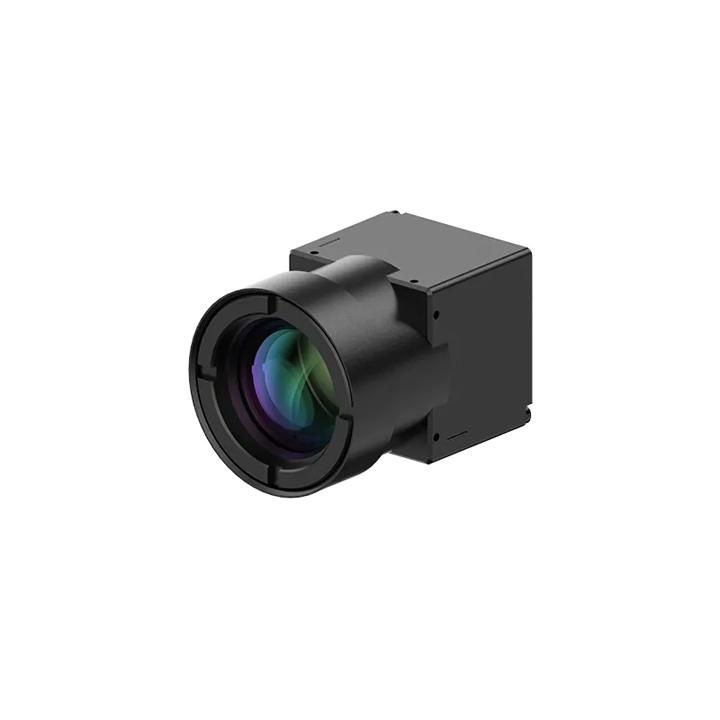

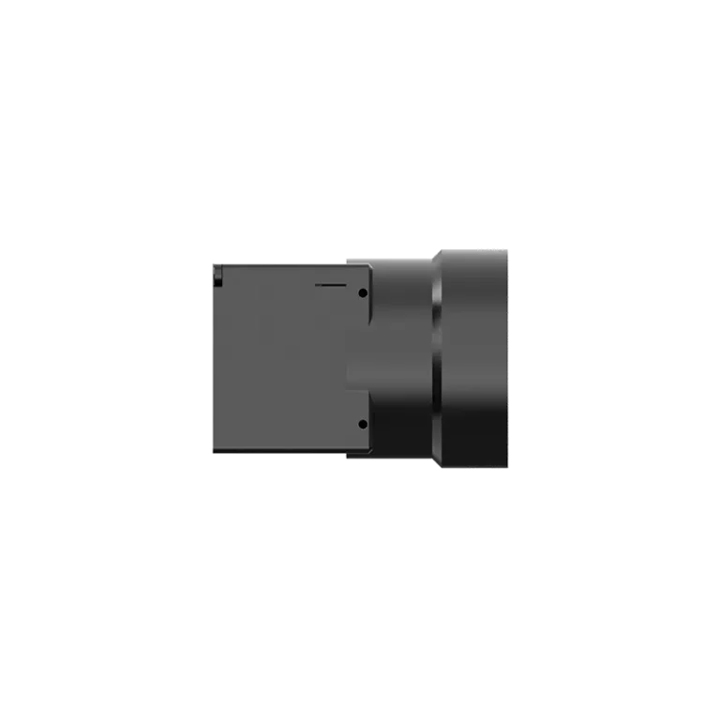

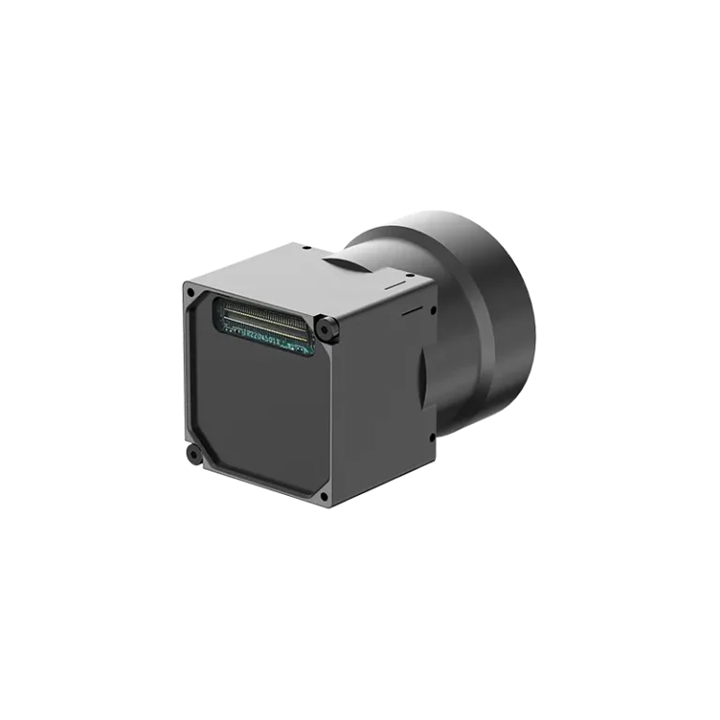

Turing M640 Uncooled Infrared Module (Imaging)

A 640×512 ceramic-packaged infrared detector is included with the Turing M640 uncooled infrared module. In addition to producing crisp photos, it has several serialized lenses and a variety of user extension components that users can choose from. extensively used in the domains of driving assistance, integrated pods, and outside surveillance.

Categories: ,
Description

Feature

1. Versatile Lens Solutions

  • 10+ a thermalized lens options covering various focal lengths
  • Optimized for applications ranging from close-range inspection to long-distance surveillance

2. Premium Imaging Performance

  • Shutterless operation eliminates image interruption
  • High-speed 50Hz frame rate ensures smooth, real-time monitoring
  • Advanced algorithms deliver stable, high-contrast thermal imagery

3. Customizable Integration

  • Multi-interface support for flexible system design:
    • Digital: USB 3.0, MIPI, LVDS, Camera Link
    • Analog: DVP, composite video
  • Optional SDK enables:
    • Rapid application development
    • Custom function implementation
    • Seamless system integration

Specification

Performance Indicators
Detector Type Uncooled VOx infrared detector
Resolution 640×512
Frame Rate 50Hz
Pixel Pitch 12μm
Spectral Band 8~14μm
NETD ≤50mK at 25°C (≤40mK, optional)
Image Adjustment
Brightness/Contrast Adjustment Manual/Automatic/Linear
Polarity Black-hot/White-hot
Palette Support
Reticle Display/Blank/Move
Digital Zoom 1.0~4.0× continuous zoom (step size: 0.1)
Image Processing Scene-based non-uniformity correction, digital filtering noise reduction, and digital detail enhancement, Shutterless
Mirroring Horizontal/Vertical/Diagonal
Power Supply
Power Supply Range (typical) 3.5~18V DC supported by user extension components, 4~5.5V DC
Typical Power Consumption at 25°C Without Extension ＜0.6W
Power Protection Overvoltage, undervoltage, and reverse connection supported by user extension components
Interface
Digital Video BT.656/BT.1120/14Bit or 8Bit LVCMOS/LVDS
Analog Video 1-channel PAL system
Serial Communication Interface UART (3.3V)/RS232
Extension Components MIPI/USB/Camera Link/Analog video/BT.656/LVDS
Physical Characteristics
Dimensions (Without lens and extension components) 26mm×26mm×19.2mm
Weight (3.2mm, without extension components) 20g±3g
Environment Adaptability
Operating Temperature -40°C~+80°C
Storage Temperature -45℃～+85℃
Humidity 5 ~ 95%, non-condensing
Vibration 6.06g, random vibration, all axes
Impact 80g, 4ms, final peak sawtooth wave, three axes and six directions

Application Scenarios

  • UAV
  • Outdoor Observation
  • Security Monitoring
  • Driving Assistance
