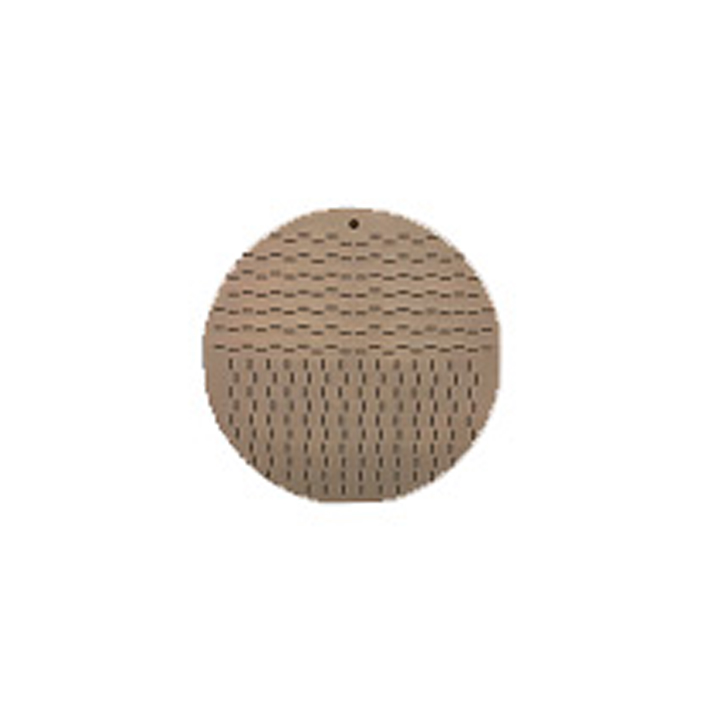

Waveguide Slot Standing Wave Array Antenna

This product boasts the advantages of short longitudinal length, light weight, low profile, and controllable secondary functions. It enables effective and optimal control over high efficiency, sub-level performance, and gain parameters.

Categories: , , , ,
Description

Technical Indicators: (Take X-band As An Example)

  • Diameter: round diameter, 8 times diameter wavelength ratio;
  • Bandwidth: fo ± 250MHz;
  • Gain: ≥ 26dB;
  • Sidelobe level: ≤ – 20dB;
  • Zero depth: ≤ – 30dB;
  • Port standing wave: ≤ 2;
  • Power capacity: ≥ 50KW;
  • Beam width: θ 0.5h = 7 ° + 0.5 °, θ 0.5E = 8 ° + 0.5 °.

The waveguide slot array antenna with different frequency band and size can be customized according to the user’s requirements.
