Precision in the Signal Storm: The 2G/3G/4G/5G Integrated Vehicle-Mounted Active Direction Finding and Positioning System
nn
In the high-stakes world of security law enforcement, emergency response, and special operations, the ability to accurately and efficiently locate wireless signals is not just a technical preference—it is a core operational requirement. Modern communication environments are a chaotic tapestry of overlapping frequencies, dynamic network configurations, and ever-evolving standards. To navigate this complexity, MOP TECH has engineered a game-changing solution: the 2G/3G/4G/5G integrated vehicle-mounted active direction finding and positioning system. This system redefines what is possible in mobile signal intelligence, offering industry-leading full-band coverage and an intelligent operational experience designed for all-weather, multi-scenario deployment. It is a comprehensive tool that delivers on the promise of high-precision signal control, turning the chaotic airwaves into a strategic advantage.
nn
Unparalleled System Capabilities: A Deep Dive
nn
The core of this system lies in its ability to bridge the gap between legacy and future networks. It is not merely a scanner; it is an active, intelligent interrogator of the wireless domain. The system’s architecture is built on a foundation of high-gain hardware and sophisticated software algorithms that work in concert to deliver results where other systems fall short.
nn
Full Band Coverage and High-Precision Positioning
nn
The first and most critical advantage is its 2G/3G/4G/5G integrated nature. Many systems on the market focus on a single generation or a limited set of frequencies, leaving users blind in critical gaps. This system, however, supports all major standards, including 2G, 3G, 4G-LTE, and 5G NR (both SA and NSA modes). It covers 14 specific frequency bands across China Mobile, China Telecom, and China Unicom, and can concurrently process signals from 21 individual cells. This capability ensures robust performance in everything from dense, urban canyons to remote rural outposts. Operating on the principle of precise direction finding, the system achieves an accuracy of ≤ 1 meter. The effective adsorption range—the distance from which a target signal can be drawn in and analyzed—spans from 500 to 2000 meters, with a target capture rate consistently exceeding 98%. This level of precision is achieved through IMSI/TMSI intelligent analysis combined with a directional antenna array, allowing for millisecond-level response switching between targets.
nn
Multi-Mode Collaborative Operations and Enhanced Performance
nn
The system’s ingenuity shines in its multi-mode collaborative operation. It features a unique hybrid working mode that allows parallel processing of 2G, 3G, 4G, and 5G signals. This is particularly crucial for tracking modern smartphones, which frequently hand off between LTE and 5G NR. The system can maintain a lock on a target even when they are in a VoLTE or VoNR call state, ensuring continuous tracking is not lost during a communication session. A one-button APP control interface simplifies the user experience, enabling multi-target synchronous tracking and seamless data linkage reporting. Under the hood, powerful performance is guaranteed by a single carrier power of 40W-50W (adjustable), a built-in Cortex-R4F processor running intelligent algorithms, and support for GPS, Beidou, and air interface synchronization. This setup ensures stable, reliable operation even in extreme environmental conditions.
nn
Technical Specifications at a Glance
nn
To fully appreciate the engineering behind this system, the following table provides a detailed breakdown of its technical specifications. All critical parameters are presented here.
nn
| System Component | Parameter | Value / Specification |
|---|---|---|
| Main Host (Vehicle-Mounted Direction Finding System) | Supported Standards | 2G (900 & 1800 MHz), 3G (2100 MHz), 4G-LTE (B1, B3, B5, B8, B34, B38, B39, B40, B41), 5G NR (n1, n3, n5, n8, n28, n41, n77, n78, n79) |
| Frequency Range | 698 MHz – 4960 MHz | |
| Carrier Channel Concurrency | Supports 21 carriers concurrently (TDD + FDD) | |
| Operating Mode | 2G/3G/4G/5G Hybrid Mode | |
| Transmit Power | 40W to 50W per carrier (adjustable) | |
| User Capacity | ≥ 2000 per carrier | |
| Power Supply | 220V External or Inverter | |
| Dimensions | 45.7 x 44.8 x 22 cm (5U) | |
| Direction Finding Antenna | Type | 2G/3G/4G/5G Integrated Direction Finding Antenna |
| Frequency Range | 698 MHz – 5000 MHz | |
| Gain | 8 dBm | |
| Single Soldier Unit (Individual Automated Equipment) | Operating Mode | Automated Mode, decramble-based descramble principle. Real-time tracking with millisecond follow-switch from the host. |
| Battery Life & Weight | Internal battery ≥ 3 hours; Weight: 1.8 kg | |
| Power & Ancillary Systems | Inverter | 7200 WH, providing 220V output for ≥ 4 hours |
| Antennas | GPS synchronizing antenna (3M, SMA); Air interface synchronizing antenna (3M, SMA); 5.8G Wifi antenna (SMA) | |
| Physical & Operational | Total System Weight | Approximately 36 kg (Main host) |
nn
Operational Excellence and Deployment
nn

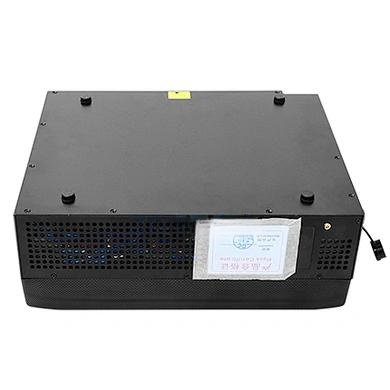

The system is designed for rapid deployment and intuitive use. It integrates a full-band, high-precision, strong adaptation, easy operation philosophy. The complete kit includes the vehicle-mounted host, an automated individual soldier unit, and a multi-function antenna array. It supports standard 220V power supply or an optional inverter for field use. The main host unit is a lightweight 36 kg design, making it ready to use immediately upon arrival at a scene.
nn
System Components and Configuration
n
Every element of the system is engineered for synergy. The main host performs the heavy-lifting of signal processing and array control. The individual soldier unit acts as a remote, mobile endpoint that automatically configures itself and follows the host’s direction to zero in on a target, displaying real-time online/offline status and direction. The system configuration includes a custom vehicle cabinet for simple installation and removal, a smart control phone, and a suite of specialized antennas for GPS and air interface synchronization. This modular approach allows the system to be adapted for various operational scenarios, from a stationary command post to a mobile pursuit vehicle.
nn
Why MOP TECH is the Decisive Choice
nn
In the field of tactical signal intelligence, the difference between success and failure often comes down to milliseconds and meters. The 2G/3G/4G/5G integrated vehicle-mounted active direction finding and positioning system from MOP TECH is not just a piece of equipment; it is a force multiplier. It excels by combining comprehensive network compatibility with pinpoint accuracy and user-friendly operation. Whether you are conducting a critical security sweep, managing a crisis, or performing a technical drill, this system provides the reliable, high-performance signal control necessary to maintain the upper hand. By choosing MOP TECH, you are investing in the power to see the unseen and control the uncontrollable, transforming the invisible world of wireless signals into a decisive operational asset.
