Unmatched Precision: The 2G/3G/4G Integrated Vehicle-Mounted Mobile Terminal Acquisition and Positioning System

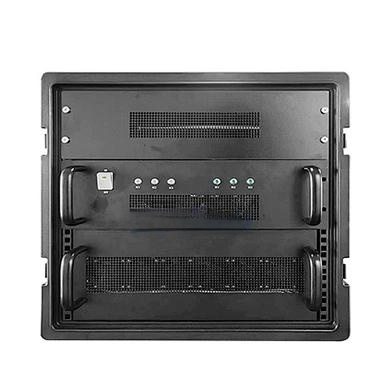

nnIn the demanding world of public safety and tactical operations, the ability to track, identify, and collect critical data in real-time is paramount. The 2G/3G/4G integrated vehicle-mounted mobile terminal acquisition and positioning system, widely recognized as an IMSI Catcher, represents the pinnacle of mobile interception technology. This high-performance, multi-standard wireless positioning solution is engineered for precise target tracking and complex data collection across the most challenging environments. By supporting full-band operations for 2G (GSM), 3G (WCDMA), and 4G (LTE) networks, the system seamlessly covers five major operators—including MTN, Etisalat, Roshan, AWCC, and Salaam—making it compatible with global communication standards. Its core capabilities extend beyond simple detection; it delivers pinpoint accuracy using IMSI and TMSI parameters, supports four distinct working modes (2G, 3G, 4G, or mixed), and boasts rapid signal absorption, high sensitivity (≥-105dBm), and a remarkable detection range of up to 1500 meters. The system is built around a vehicle-mounted host, a transmitting antenna array, a control mobile phone, and a robust power system, all housed in an industrial-grade design to withstand harsh conditions.nn
System Architecture and Core Performance
nnAt the heart of this IMSI Catcher lies a powerful architecture that ensures reliability and efficiency. The host supports four simultaneous carrier channels, each with adjustable power from 0 to 50 watts per carrier. This flexibility allows operators to fine-tune the system for various operational scenarios, from dense urban centers to open rural landscapes. The high-gain omnidirectional antenna provides superior interference rejection, while the built-in blacklist and whitelist management functions offer granular control over target selection. Synchronization is achieved through both GPS and public network methods, ensuring continuous operation even in GPS-denied areas. Advanced features like data collision analysis and correlation analysis transform raw data into actionable intelligence, with a capture rate of ≥96% and a user capacity of ≥2000 per carrier. The system reports data every two seconds and includes a hardware black box that records all operational logs, providing an unalterable audit trail.nn
| Category | Parameter | Specification |
|---|---|---|
| System Characterization | Operating System | 2G, 3G, 4G |
| Operators | MTN, AWCC, Etisalat, Roshan, Salaam | |
| Carrier Channels | 4 (2G/3G/4G enabled simultaneously) | |
| Working Frequency Bands | MTN: GSM900/DCS1800 (2G), UMTS2100 (3G); AWCC: GSM900/DCS1800 (2G), UMTS2100 (3G); Etisalat: GSM900/DCS1800 (2G), UMTS2100 (3G), LTE1800 (4G); Roshan: GSM900/DCS1800 (2G), UMTS2100 (3G), LTE1800 (4G); Salaam: GSM900/DCS1800 (2G), UMTS2100 (3G), LTE1800 (4G) | |
| Sensitivity | ≥-105dBm | |
| Functionality Characterization | Working Mode | 2G mode; 3G mode; 4G mode; 2G+3G+4G mixed mode |
| Firing Power | 0-50W adjustable per carrier | |
| Adsorption Range | 0-1500m (non-arbitrary environment) | |
| User Capacity | ≥2000 per carrier | |
| Acquisition Rate | Capture ≥1200 per minute | |
| Signal Marking | IMSI code, TMSI code | |
| Capture Method | Captured in an induced manner | |
| Successful Bidder | ≥96% | |
| Non-target Release Time | ≤2 sec | |
| Blacklists/Whitelists | Support blacklist management with unlimited entries; support whitelist management with unlimited entries and batch import, no interference to whitelist user network | |
| Synchronization & Data | Auto Sweep | Supports automatic frequency sweeping in public network and automatic configuration of frequency points |
| Frequency Offset Synchronization | Supports automatic frequency offset synchronization in the public network | |
| Synchronization Method | GPS synchronization + public network synchronization, automatic start mode when out of sync | |
| Reporting Frequency | 2 sec/times | |
| Data Analysis | Support data collision analysis and data association analysis | |
| Operation & Integration | Operation APP | Support Android 10.0 or above or Harmony system smart phone |
| Black Box | Built-in hardware black box, real-time recording of operation and usage | |
| Weight and Dimensions | Sizes: 48.245.322.1cm; Weights: 32KG or so | |
| Integrated Single Soldier | Operating System | 2G, 3G, 4G |
| Working Frequency Bands | 2G(GSM): GSM900Mhz, DCS1800Mhz; 3G(UMTS): Up link 1920-1980MHz, down link 2110-2170MHz; 4G(LTE): Up link 1710-1785MHz, down link 1805-1880MHz | |
| Detection Distance | ≥500m (with direction positioning accuracy ≤1m) | |
| Antenna Direction/Frequency | Directional Antenna; Frequency range: 698MHz~5000MHz, Gain: 8dBm | |
| Power Supply Method | Built-in battery, duration ≥ 3 hours | |
| Size | 25186cm | |
| Weight | 1.8KG or so | |
| Power Supply | Power Supply Method | 220V alternating current supply |
| Power Consumption | ≤1200W (depending on the number of amplifiers turned on) | |
| Battery Pack/Cabinet | 12V 600A Lithium battery pack; Car Cabinet: 10U standard aviation cabinet |
nn
Operational Flexibility: From Vehicle-Mounted to Single-Soldier Deployment
nnBeyond the robust vehicle-mounted configuration, the system includes a lightweight, single-soldier portable device that integrates 2G/3G/4G functions into a compact 1.8kg package. This mobile unit offers a detection distance of ≥500 meters with a direction positioning accuracy of ≤1 meter, powered by a built-in battery lasting ≥3 hours. Its directional antenna with a frequency range of 698MHz to 5000MHz and 8dBm gain ensures reliable operation in the field. The power configuration, featuring a 3000W sine wave inverter and a 12V 600A lithium battery pack, guarantees extended operational capability. This dual-deployment approach—combining a powerful vehicle-mounted system with an agile portable unit—makes the IMSI Catcher an indispensable tool for public safety, emergency command, and traffic management. By delivering high adaptability, precision, and efficiency, the 2G/3G/4G integrated vehicle-mounted mobile terminal acquisition and positioning system stands as a critical asset for modern tactical intelligence and data collection missions.
