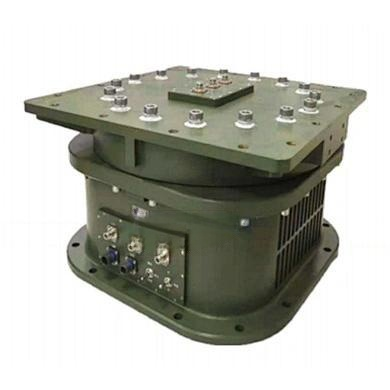

China Moneypro 90Kg Heavy Load High Speed Gear Drive Heavy-duty Radar Turntable for Radar Detection

Introduction: Unrivaled Precision in Heavy-Duty Rotation

nImagine a system that can rotate a 90-kilogram payload with the accuracy of a finely tuned instrument, even in the harshest environments. The heavy-duty radar turntable is precisely that—a high-performance, single-axis servo system engineered to drive heavy-load rotation with exceptional precision and stability. Designed for radar detection, communication anti-interference, and advanced testing applications, this robust platform ensures seamless operation under extreme conditions, making it ideal for both fixed installations and vehicle-mounted deployments. At the heart of this motorized pan tilt zoom head lies a sophisticated servo turntable control board paired with an AC drive system, delivering smooth and accurate rotation for antennas and other mounted equipment.nn

Core Technology: The Engine Behind the Heavy-Duty Radar Turntable

nThe heavy-duty radar turntable incorporates an absolute encoder, enabling advanced three-loop control for superior positioning accuracy. With a repeat positioning accuracy of ±0.1° and an angular resolution of 0.01°, this heavy-load pan system guarantees reliable performance in critical missions, including target tracking and directional alignment. The pan and tilt mount features a durable gear drive transmission, ensuring consistent torque and minimal backlash even under the most demanding conditions.nn

Environmental Resilience and Protection

nBuilt to withstand the elements, the system boasts an IP65 protection level, allowing operation in dusty, rainy, or otherwise challenging environments. Its operating temperature range spans from -45°C to +65°C, while storage tolerance extends from -55°C to +70°C, making it suitable for deployment in arctic, desert, or tropical climates. The 90kg frame supports heavy-duty applications while maintaining mobility, adapting easily to diverse deployment scenarios.nn

Advanced Control and Customization

nKey functionalities of this motorized pan and tilt head include extended north-seeking capability and zero-position preset, enhancing its versatility in radar and communication systems. The heavy-duty radar turntable also supports customized protocols, allowing seamless integration with existing host systems for centralized control. Whether used in military radar arrays, civilian surveillance, or mobile test platforms, this heavy-load pan system excels in delivering precision, durability, and adaptability.nn

Technical Specifications: Heavy-Duty Radar Turntable Performance Data

nThe following table presents the critical parameters of the heavy-duty radar turntable, ensuring engineers and technicians have all the data needed for system integration and performance evaluation:nn

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

nn

Operational Excellence: Power and Signal Integrity

nWith a speed range of 0–15 r/min and 220VAC ± 20% power input, the pan and tilt mount balances power efficiency with operational demands. The heavy-duty radar turntable employs a confluence ring for uninterrupted signal transmission, ensuring seamless data flow even during continuous 360-degree rotation. This design eliminates cable twisting and signal loss, critical for applications requiring constant data streams or precise positioning feedback.nn

Applications Across Industries

nThe versatility of this heavy-load pan system makes it indispensable across multiple sectors:n- Military and Defense: Used in radar arrays for target tracking, surveillance, and communication systems.n- Civilian Security: Integrates into video surveillance systems for wide-area monitoring.n- Telecommunications: Supports directional antenna alignment for signal optimization.n- Scientific Research: Employed in testing and measurement platforms requiring precise rotational control.nn

Conclusion: Redefining Reliability with the Heavy-Duty Radar Turntable

nIn summary, the heavy-duty radar turntable stands as a cornerstone technology for modern radar and communication systems. Its heavy-load pan capabilities, paired with advanced servo control and environmental resilience, make it indispensable for mission-critical applications. The integration of an absolute encoder, gear drive transmission, and IP65 protection elevates this motorized pan and tilt head to a benchmark in performance and engineering excellence. Whether deployed in fixed installations or mobile units, this heavy-load pan system redefines reliability in heavy-duty rotational systems, ensuring precision and durability where it matters most. For industries requiring uncompromising accuracy under heavy loads, the heavy-duty radar turntable is not just a component—it is a solution.
