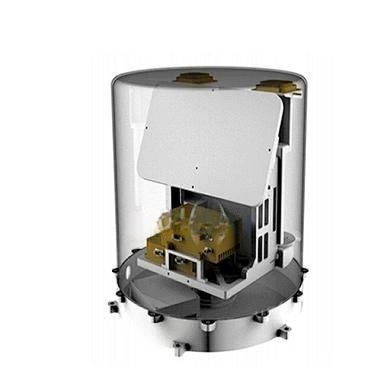

SOTM Turntable: Precision Pan Tilt Zoom Head for Modern Battlefields
n
The SOTM Turntable (Satcom On-The-Move Turntable) stands as a military-grade pan tilt zoom head engineered for the most demanding tactical EW antenna positioning and SATCOM rotator operations. This tri-axis servo system delivers 360° continuous azimuth, ±90° pitch, and full polarization rotation, enabling real-time tracking of satellites, drones, and hostile signals. Its angular resolution of 0.01° and rapid speeds up to 100°/s ensure ultra-responsive adjustments essential for electronic warfare (EW), signals intelligence (SIGINT), and secure communications. The rugged IP65-rated housing and wide -45°C to +65°C operational range make it ideal for airborne, vehicle-mounted, and shipboard deployments. With a direct-drive or gear-drive transmission that eliminates backlash and customizable waveguide or confluence ring integration, the system maintains uninterrupted signal flow during rotation. The pan tilt zoom head mechanism supports Cross and Z-scan patterns for rapid signal acquisition, critical for tactical EW antenna positioning in contested environments. A 48VDC±10% power input ensures compatibility with military vehicles, while the zero-position preset function allows instant recalibration mid-mission.
nn
Key Specifications of the SOTM Turntable
n
| Parameter | Value |
|---|---|
| Model | ZD-703-SFDMOP-XX |
| Speed Range | 0–100°/s |
| Scanning Methods | Cross, Z, and others |
| Angular Resolution | 0.01° |
| Zero Position Preset | Supported |
| Input Power Source | 48VDC±10% |
| Operating Temperature | -45°C to +65°C |
| Storage Temperature | -55°C to +70°C |
| Transmission Mode | Direct drive or gear drive |
| Protection Level | IP65 |
nn
Tactical EW Antenna Positioning in Multi-Domain Operations
n
This SOTM Turntable excels in electronic warfare by jamming hostile communications through precise directional antenna steering. For SATCOM-on-the-Move applications, it stabilizes satellite links for mobile command centers using advanced SATCOM rotator tracking. In drone countermeasures, it aligns the pan tilt zoom head sensors to disrupt UAV control frequencies with pinpoint accuracy. Additionally, it simulates dynamic scenarios for radar and antenna validation. Its modular design allows seamless integration with EW suites, SIGINT pods, and 5G/6G test systems, while the sub-20kg weight (configuration-dependent) enables rapid deployment in the field. The tactical EW antenna positioning system supports tailored communication protocols such as MIL-STD-1553 and Ethernet, with load interfaces handling up to 30kg capacity. Optional upgrades include inertial stabilization for turbulent environments and AI-driven predictive tracking for LEO satellites.
nn
Built for Harsh Environments
n
As a NATO-interoperable SATCOM rotator, the SOTM Turntable complies with MIL-STD-810G for shock and vibration resistance and MIL-STD-461F for electromagnetic compatibility. Field-proven in both desert and Arctic conditions, this pan tilt zoom head delivers unmatched reliability for defense and aerospace missions. The system combines high dynamics with exceptional stability, ensuring accurate tactical EW antenna positioning even in the most contested environments. Whether deployed on moving vehicles, airborne platforms, or naval vessels, the SOTM Turntable maintains robust performance, making it a critical asset for modern military operations requiring real-time satellite tracking and signal acquisition.
