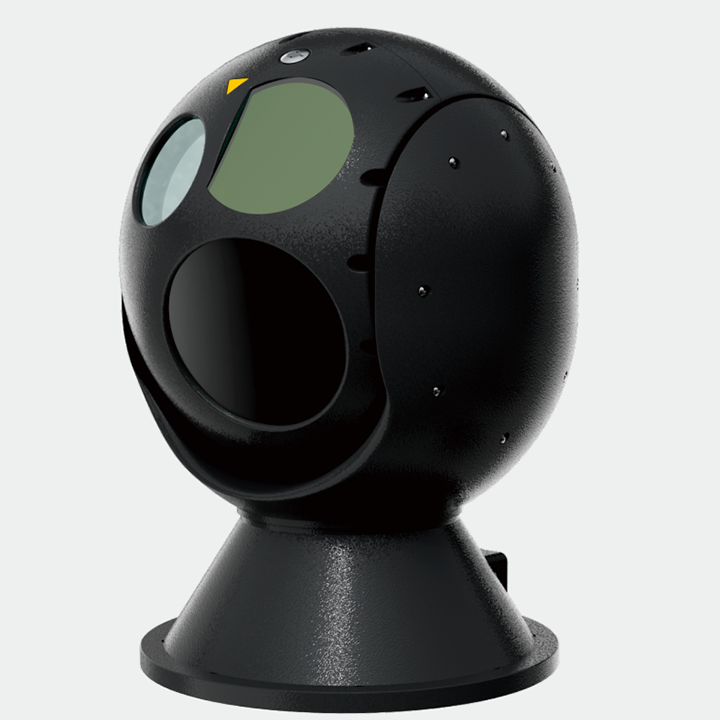

China ME280 – 20KG-Class Vehicle-Mounted Photoelectric Search and Tracking Ball

China ME280 is a 20kg-class vehicle-mounted photoelectric search and tracking ball designed with modular structure, advanced AI recognition, and high adaptability for complex mission environments. It integrates infrared thermal imaging, visible light camera, laser rangefinder, and three-axis gyro stabilization to deliver highly stable, long-range observation and tracking.

It is suitable for border defense, vehicle-mounted surveillance, maritime monitoring, and multiple security or military applications.

Categories: ,
Description

Key Features

  • Nationally produced, with independent control over core components.
  • Each component has independent functionswith easy installation, fewer connections, and simple replacement/upgrade.
  • Equipped with AI intelligent recognition algorithm, capable of identifying multiple types of targets and enabling unmanned operation.
  • Three-axis gyro inertial stabilization platformensures highly stable and clear images during motion.
  • Anti-corrosion treatmentfor high-salt and high-humidity environments.
  • Supports external target guidance systemssuch as radar and AIS for linkage operations.
  • Supports external radar guidance, target tracking, adaptive zoom, auto focus, target recognition reporting, and auto on/off settings for unmanned operation.

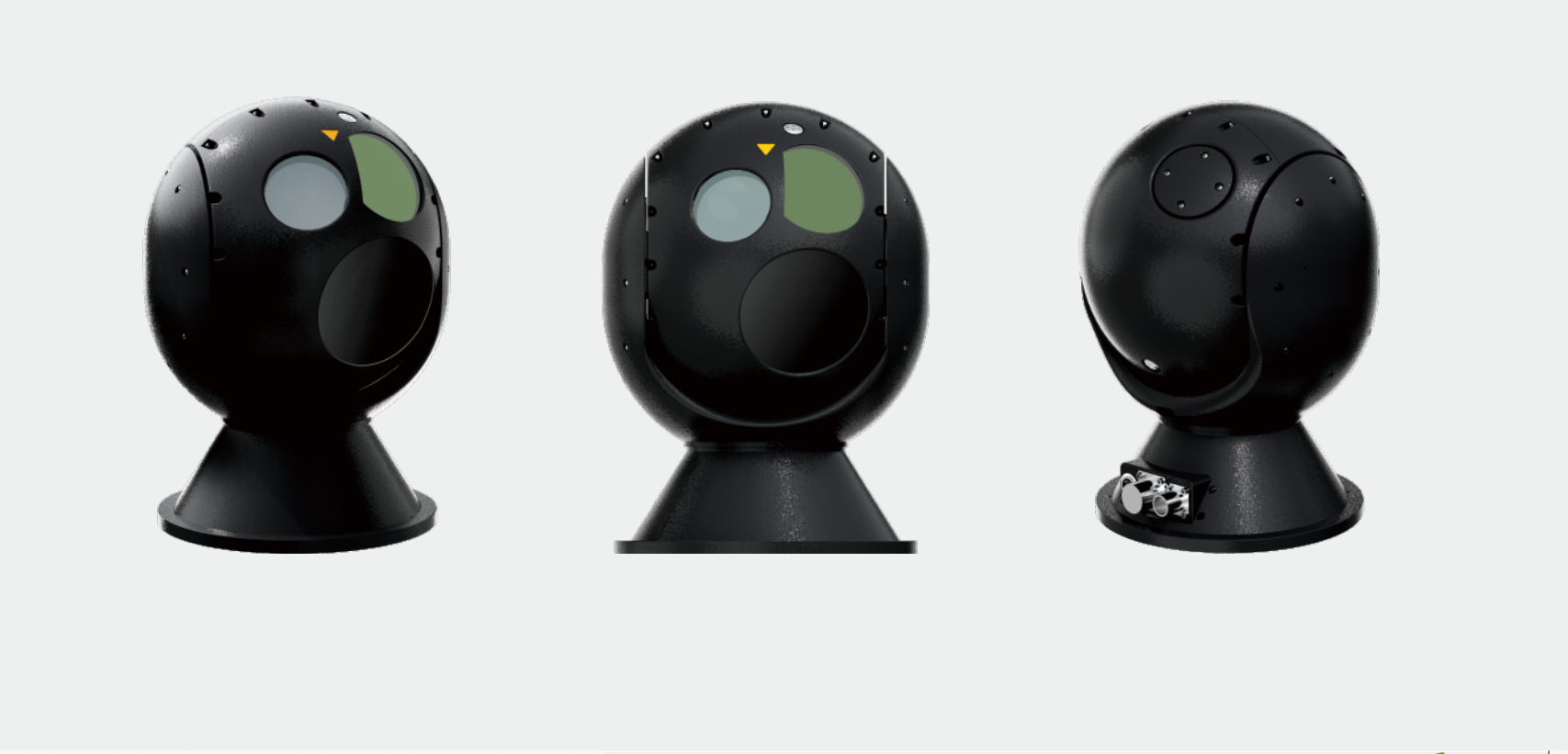

China ME280 – 20KG-Class Vehicle-Mounted Photoelectric Search and Tracking Ball



Technical Parameters

Infrared Thermal Camera

  • Detector type:Long-wave uncooled
  • Effective target surface:1280 × 1024
  • Horizontal FOV:86° ~ 17.4°

Visible Light Camera

  • Image resolution:1920 × 1080
  • Horizontal FOV:26° ~ 57.8°

Laser Rangefinder

  • Wavelength:5μm
  • Frequency:1Hz / 5Hz / 10Hz
  • Ranging distance:200m ~ 15,000m
  • Accuracy:±3m

Servo Performance

  • Rotation range:Azimuth × 360°; Pitch -10° ~ +90°
  • Max angular velocity:≥ 100°/s
  • Stability accuracy:≤ 0.3mrad (1σ)
  • Angle measurement accuracy:≤ 1mrad
  • Tracking accuracy:≤ 0.3mrad (1σ)
  • Memory tracking:5s

Environmental Adaptability

  • Operating temperature:-40℃ ~ +60℃
  • Impact vibration:Meets Annex C.3 vibration standard of GJB150.16A (Combination Wheeled Vehicles)
  • Protection grade:IP66

Electrical Interface

  • Power supply:AC220V, steady state ≤150W, peak ≤300W
  • Communication:Gigabit network / RS422
  • Video:Gigabit network

Dimension & Weight

  • Weight:≤ 20kg
  • Dimensions:Φ (280 ±2) mm × (370 ±2) mm

Effective Range

  • Visible light recognition:Personnel 4.5km / Vehicle 15km
  • Visible light detection:Personnel 8km / Vehicle 18km
  • IR recognition:Personnel 1.8km / Vehicle 3km
  • IR detection:Personnel 3.5km / Vehicle 6km

China ME280 – 20KG-Class Vehicle-Mounted Photoelectric Search and Tracking Ball



FAQ

Q1: What stabilization technology is used in China ME280?
A1: China ME280 uses a three-axis gyro inertial stabilization platform, ensuring smooth, stable imaging even under vehicle vibration or harsh motion environments.

Q2: How does China ME280 perform in maritime or high-humidity conditions?
A2: The system adopts multiple anti-corrosion processes, making it suitable for long-term use in high-salt and high-humidity coastal or naval environments.

Q3: What is the maximum laser rangefinding distance of China ME280?
A3: The laser rangefinder supports a distance of up to 15 km with ±3m accuracy, suitable for both near and long-range surveillance.

Q4: Does China ME280 support unmanned operation?
A4: Yes. With its AI recognition algorithms and linkage with external radar/AIS, the system supports unmanned operation, target auto-tracking, and adaptive zoom/focus.

Q5: What is the communication interface for integration with vehicles?
A5: China ME280 supports Gigabit network and RS422 communication, ensuring seamless integration with vehicle-mounted command and control systems.
