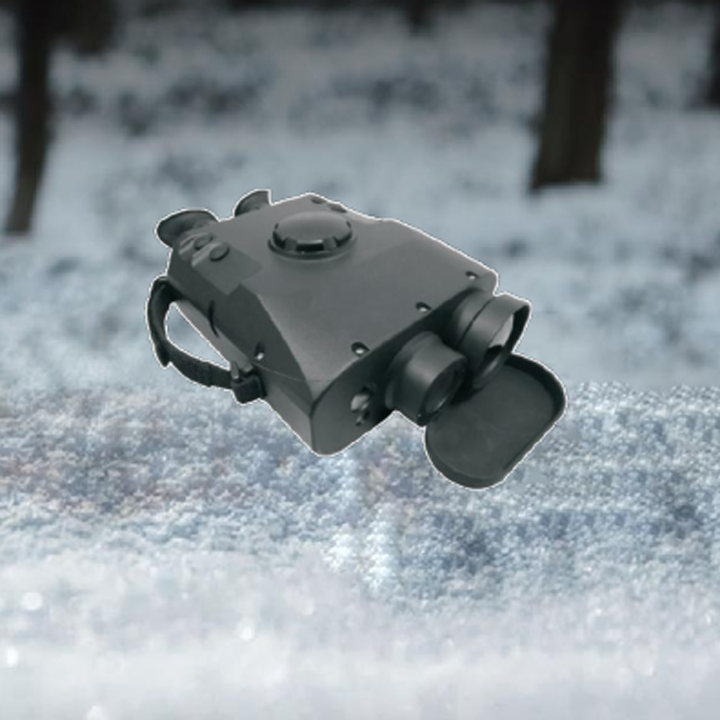

CMB01 Cooled Hand-held Thermal Observer

THE CMB01 Cooled Hand-held Thermal Imager is set of cooling wave infrared thermal imaging, visible observation, laser ranging, Beidou/GPS positioning and electronic compass sensor in integrated multi-functional products, infrared thermal imaging and visible module has continuous zoom, brightness adjustment, contrast adjustment and electronic amplification, can achieve all-weather target detection, recognition, observer can also be completed. Target ranging, positioning, audio and video recording data record and storage and other functions.

Categories: ,
Description

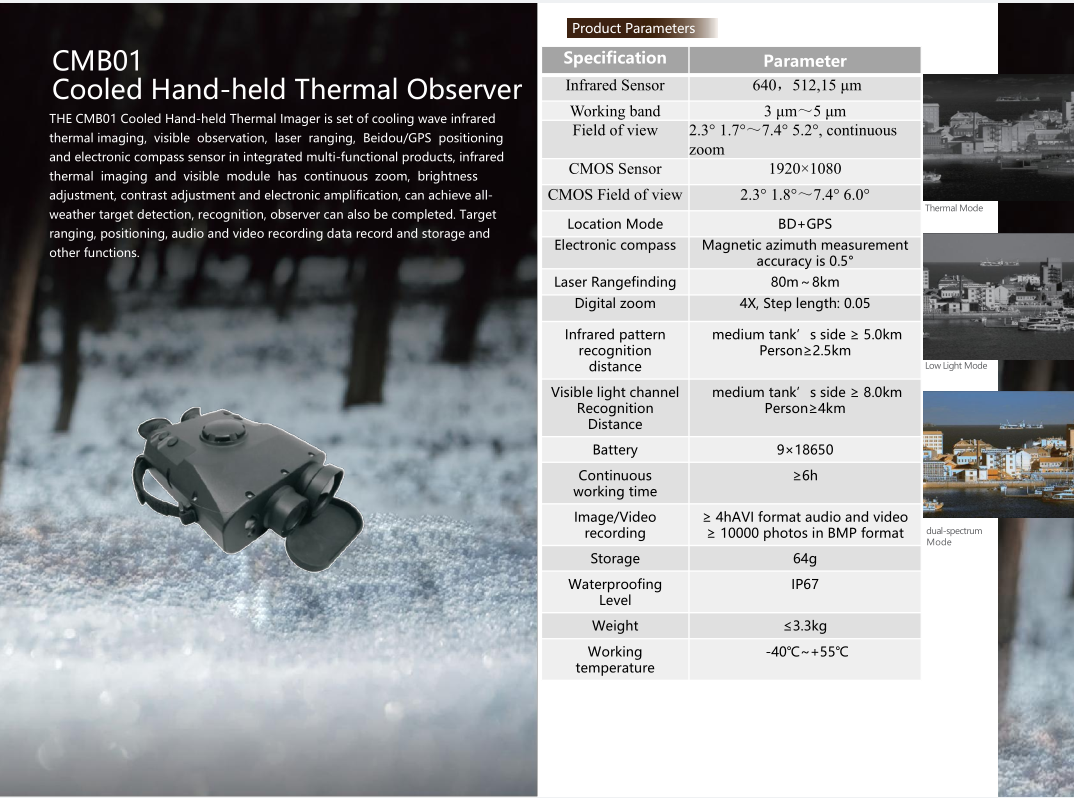

CMB01 Cooled Hand-held Thermal Observer Parameters

Specification Parameter
Infrared Sensor 640, 512,15 μm
Workingband 3 μm~5 μm
Field of view 2.3° 1.7°~7.4°5.2°,continuous zoom
CMOSSensor 1920×1080
CMOS Field of view 2.3°1.8°~7.4°6.0
Location Mode BD+GPS
Electroniccompass Magnetic azimuth measurement accuracy is 0.5°
Laser Rangefinding 80m~8km
Digital zoom 4X, Step length: 0.05
Infrared pattern recognition distance medium tank’ s side ≥ 5.0km
Person≥2.5km
Visible light channel recognition Distance medium tank’ s side ≥ 8.0km
Person≥4km
Battery 9×18650
Continuous working time ≥6h
Image/Video recording ≥ 4hAVI format audio and video
≥ 100o0 photos in BMP format
Storage 64g
Waterproofing Level IP67
Weight ≤3.3kg
Working temperature -40C~+55C

CMB01 Cooled Hand-held Thermal Observer
