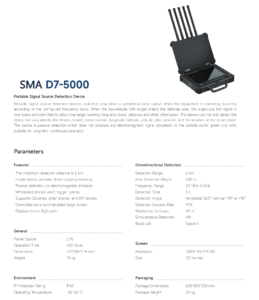

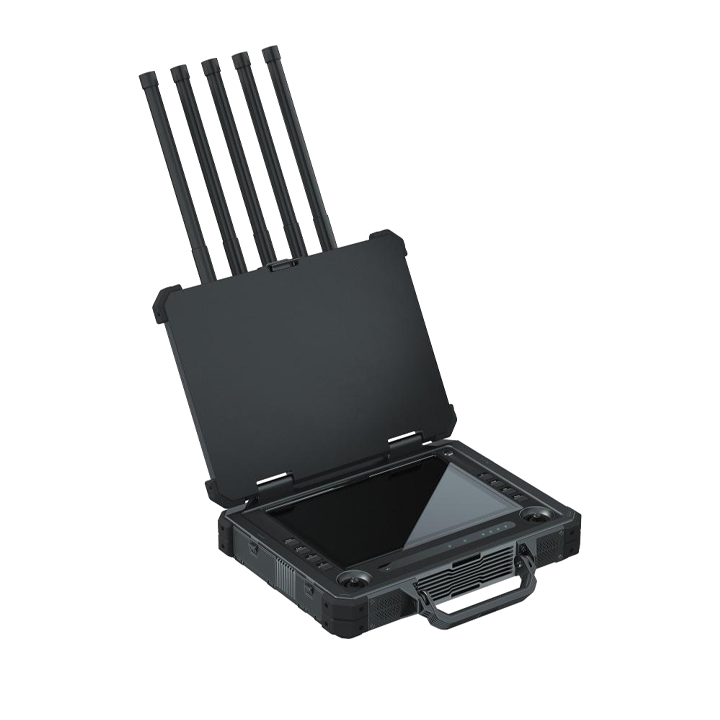

China Moneypro Drone Signal Detection And Simulation Devices SMA D7-5000

The ZL20 features modular, lightweight, and standardized design, enabling both mobile platform deployment and permanent fixed installations. Capable of detecting various small drones like DJI Phantom 4 and FPV through autonomous search or radar guidance modes, it delivers rapid, accurate detection with zero collateral damage, serving as an effective solution to prevent unauthorized flights and accidents involving "low-altitude, slow-moving, small-sized" targets. The equipment boasts easy disassembly, portability, reliability, strong environmental adaptability, and multi-network capability, making it widely applicable in core departments, airports, oil depots, grain warehouses, nuclear power plants, dams, refineries, and large-scale event venues for low-altitude security defense needs.

The T30 is a lightweight, portable short-range defense continuous-wave radar system. Utilizing DBF digital beamforming and simultaneous multi-beam technology, it can detect target motion speeds from 1 to 300m/s, with pitch angles ranging from-5 to 60 degrees. The radar achieves angular accuracy of 0.3 degrees and distance resolution of 5 meters, featuring data refresh rates of 1/2/3 seconds. It supports stable tracking of over 500 target groups simultaneously. Its scanning range covers areas with altitudes ≥4500m and radii ≥30km. The portable rotating platform consumes ≤450W, while the radar unit weighs less than 30kg. For the smallest DJI mini series UAVs, it provides detection ranges ≥6.5km, and for DJI mavic3 Pro models, ≥10km. With a maximum transmission power of ≤40W, it ensures exceptional operator safety and urban environmental compatibility. On battlefields, its minimal transmission power significantly reduces interception probability, enhancing operational survivability. Among low-power anti-unmanned/loitering radar systems, its technical performance stands unmatched.

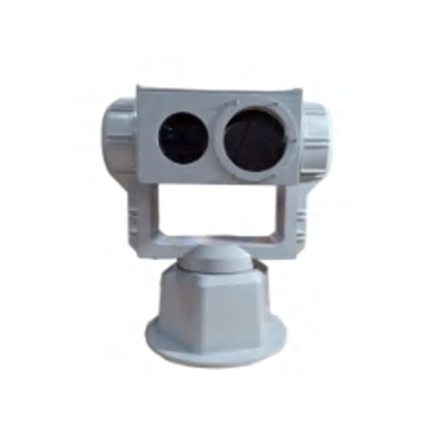

China Moneypro MPC464A1 is a dual-spectrum PTZ camera system designed for vehicle- and ship-mounted applications. It integrates visible light and infrared thermal imaging, with advanced AI recognition, auto-tracking, and optional laser ranging. The system adopts a three-axis gyro-stabilized platform, offering exceptional anti-vibration performance and long-term reliability in harsh environments such as high-salt and high-humidity conditions. It supports external cueing (radar, AIS) and provides all-weather, 24/7 search, monitoring, and tracking capabilities.
