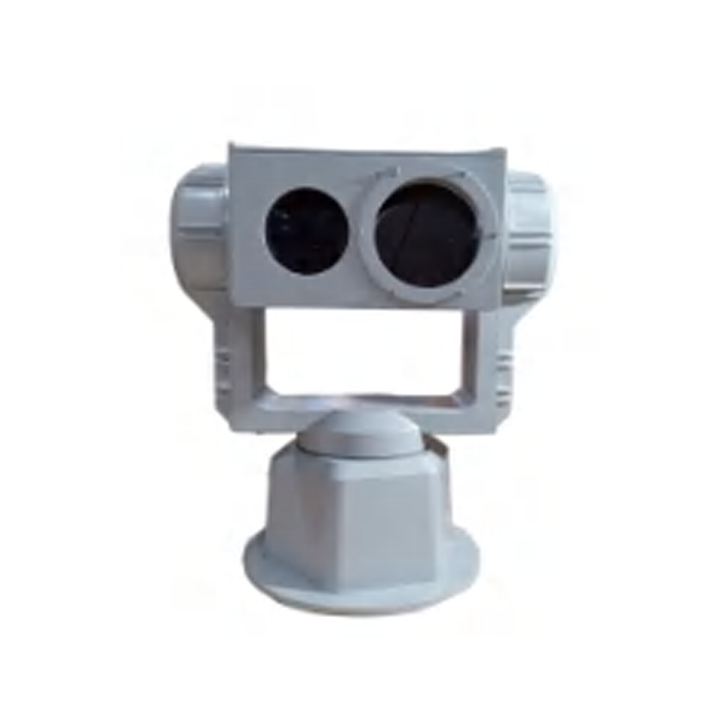

Cutting-Edge Features
✅ Dual-Sensor Detection – 5km visible light & 2km thermal imaging range
✅ AI Target Recognition – Classifies 80+ object types (drones, vehicles, humans)
✅ Precision Tracking – 0.05° gimbal control, 20m/s target speed tracking
✅ Multi-System Integration – Works with radar, RF detection, and TDOA
✅ All-Weather Ready – Optical defogging, IP66 rating (-20°C to 60°C)

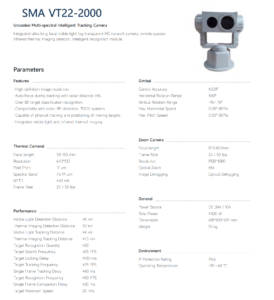

Technical Specifications
Camera System
| Parameter | Specification |
|---|---|
| Visible Light Range | 5km detection / 4km tracking |
| Thermal Imaging Range | 2km detection / 1.5km tracking |
| Resolution | 1920×1080 (Visible) / 640×512 (Thermal) |
| Optical Zoom | 65x (Visible) / 30-150mm (Thermal) |
Performance
| Target Recognition | >20 simultaneous targets |
|---|---|
| Tracking Speed | 25 FPS with ≤100ms delay |
| Max Target Speed | 20 m/s (72 km/h) |
Physical
| Dimensions | 618×500×675mm | Weight: 75kg | Power: 300W (24V DC) |
How It Works
- Step 1: Visible light/thermal sensors detect targets up to 5km away
- Step 2: AI classifies targets (drones/vehicles) in ≤20ms
- Step 3: Gimbal (360° rotation) locks onto moving objects at 25 FPS
- Step 4: Integrates with radar/RF systems for triangulation
Deployment Scenarios
- Military Bases: Perimeter surveillance against intruder drones
- Airports: Runway incursion detection (FAA-compliant)
- Critical Infrastructure: Oil refineries, power plants
- Border Security: Night/day smuggling interdiction
Competitive Edge
✔ Higher Zoom (65x) than most thermal trackers
✔ Faster Processing (50 FPS recognition) for swarm threats
✔ Lower Latency (20ms delay) vs industry average (50ms+)
