Compact Heavy-Lift Engineering
520mm Precision Wheelbase | Space-Saving Folding Arms | 7kg Fleet-Ready Kit
- Multi-Unit Efficiency: 66×61×16cm case holds 5 drones for team deployment
- 1-Klick Deployment: Arms unfold + GPS lock in 60 seconds
- High-Altitude Resilience: Magnesium-Titanium alloy for 4000m operations
“Transport heavy sensors, first-aid payloads, or mapping gear to remote zones”
Payload-Flight Optimization Matrix
| Payload | Flight Time | Critical Application |
|---|---|---|
| 0kg | 40 min | Border patrol/pipe inspection |
| 3kg | 13 min | Geophysical sensor deployment |
| 5kg Max | 7 min | Earthquake rescue gear delivery |
| Thin-Air Prowess: Zero stability loss at 4000m (tested in Himalayan conditions) |
Unprecedented 40km Range System
1. Long-Distance Endurance
- 40km OcuSync Pro: Penetrates forests/urban canyons
- 19m/s Cruise Speed: Cover 800 acres/hour
- Adaptive Battery Management: 20% longer life in headwinds
2. Swarm Intelligence Hub
- Centralized Control: One remote manages 8 drones
- Payload Sharing Network: Distribute 5kg across units
- Formation Waypoints: Automated rescue grids/disaster mapping
Fleet Deployment Architecture
| Feature | Field Advantage |
|---|---|
| Folding Arms | 75% space reduction vs competitors |
| 13-Inch Props | Enhanced lift in low-pressure zones |
| Multi-Drone Charger | Charge 5 units simultaneously |
| Rapid Redeployment: Ground-to-air cycle under 4 minutes |
High-Stakes Applications
Disaster Response
- 5kg medical kits delivery to flood zones
- Radiation sensors for nuclear site breaches
Mining & Surveying
- 3D ore mapping at 4000m elevation
- Gas detection payloads for mine safety
Group Cartography
- 8-drone swarm photogrammetry @ 1.5cm accuracy
- Military terrain recon with night vision

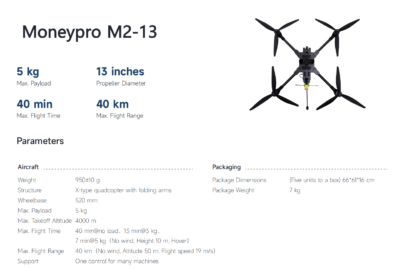

Technical Specifications
| Parameter | Specification |
|---|---|
| Max Takeoff Weight | 5950g (airframe + 5kg payload) |
| Wind Resistance | Level 7 (20m/s storms) |
| Temp Range | -30°C to +65°C (Arctic-desert ready) |
| Comms Security | Military-grade AES-512 encryption |
Competitive Benchmark
| Capability | Moneypro M2-13 | Freefly Alta X |
|---|---|---|
| Payload Capacity | 5kg | 3.8kg |
| Max Range | 40km | 8km |
| Swarm Control | 8 drones | None |
| Package Density | 5 units/7kg | 1 unit/15kg |
