Triple-Domain Mission Systems
- Energy Sector:
▶ Corona discharge detectors for live power lines
▶ 20cm GSD mapping of transmission corridors - Border Security:
▶ 30x EO/IR gimbaled payloads
▶ Automated loiter patterns along 150km frontiers - Disaster Response:
▶ Real-time fire propagation modeling
▶ Lidar terrain mapping for evacuation routes
Altitude Dominance Engineering
- 4,800m Ceiling Tech: Turbocharged batteries maintain power at Everest basecamp altitudes
- Hypoxia Prevention: Forced-air cooling at high-density operations
- Mountain Optimization: AI adjusts lift surfaces for low-pressure environments
Industrial Sensor Integration
| Payload Type | M250 Advantage |
|---|---|
| Topographic Lidar | 210-min continuous scan (10km swaths) |
| Multispectral Arrays | Whole-forest health analytics per flight |
| Gas Detection Sensors | Methane/CO₂ mapping for energy audits |
| Thermal Fire Cameras | 5km hotspot identification range |
Deployment Frame Ecosystem
- Rapid Launch: <5 minutes from case to flight (tool-free assembly)
- Mobile Command: Tablet GCS with 150km encrypted datalink
- Weather Hardening: Operations in -20°C to 55°C extremes
Packing List for Different Versions:
| Version | CUAV V5+ RTF | Cube Orange RTF | CUAV X7+ RTF |
|---|---|---|---|
| Flight Controller | CUAV V5+ | Cube Orange | CUAV X7+ |
| GPS | NEO3 GNSS | Here 3 GNSS | NEO3 Pro GNSS |
| VTOL Airframe | √ | √ | √ |
| VTOL Motor | 4pcs | 4pcs | 4pcs |
| VTOL ESC | 4pcs | 4pcs | 4pcs |
| Airplane Motor | 1pc | 1pc | 1pc |
| Airplane ESC | 1pc | 1pc | 1pc |
| VTOL Propeller | 2Pairs | 2Pairs | 2Pairs |
| Airplane Propeller | 1pc | 1pc | 1pc |
| Servo | 4pcs | 4pcs | 4pcs |
| UBEC | 1pc | 1pc | 1pc |
| Night Light | 1pc | 1pc | 1pc |
| RC&Ground Station | 1x FT24 14Channels RC | 1 x DK32S 16Channels RC | 1 x DK32S 16Channels RC |
| Video Transmitter | / | / | / |
| Battery | / | / | / |
| Battery Charger | / | / | / |
| Flight Case | √ | √ | √ |
| Assembling, tuning and flight test service | √ | √ | √ |
Specification

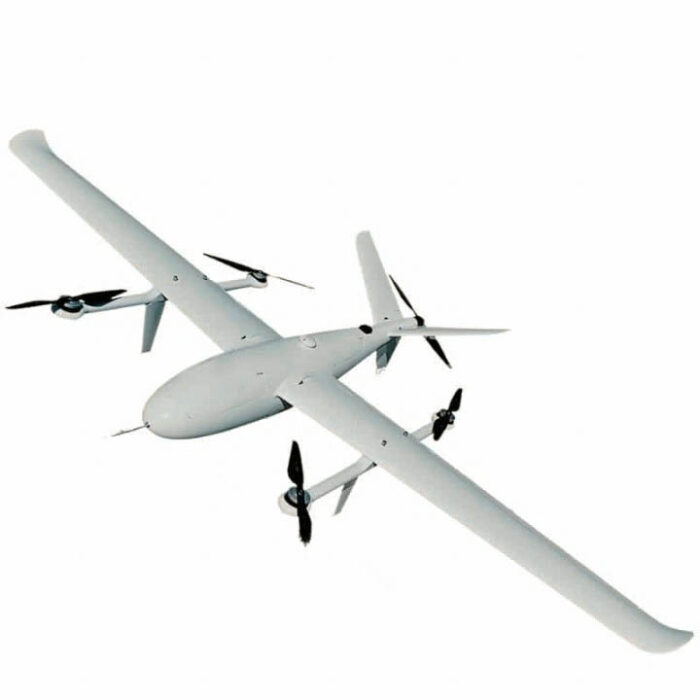

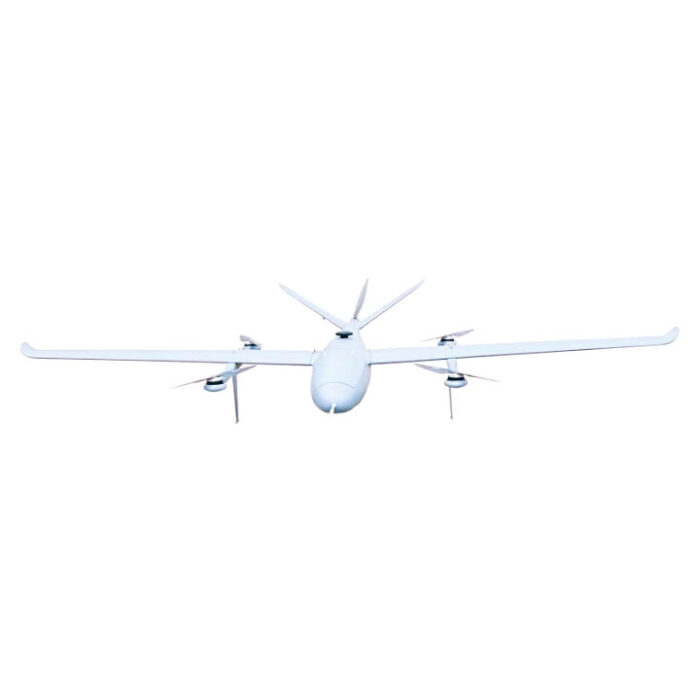

| Model No. | China Moneypro M250 |
|---|---|
| Type | VTOL Fixed Wing |

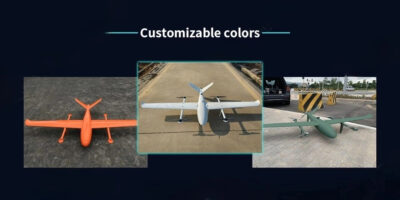

| Color | White as default (Support customization) |
| Wingspan | 2500mm |
| Length | 1260mm |
| Belly to Ground | 160mm |
| Battery Cabin | 26*15*9cm |
| Material | Carbon fiber + fiberglass |
| Airframe Weight | 3.2kg |
| MTOW | 13.5kg |
| Max Payload | 3kg |
| Suggested Load | 1.2kg (Q30TIR lite) |
| Flight Time | 4hrs without payload, 3.5hrs with 1.2kg payload |
| Max Cruising Speed | 100km/h (27m/s@12.5kg) |
| Stall Speed | 50km/h (15.5m/s) |
| Max Flight Altitude | 4800m |
| Max Wind Resistance | 14m/s (fixed wing), 8m/s (VTOL) |
| Battery (Recommended) | 2 * 6S 27000mAH HED Li-ion |
| Working Temperature | -20℃~60℃ |
| IP Grade | IP45 |
| Packing Chargeable Size | 151*58*44cm (Tail Undetachable Version) |
| 128*57*50cm (Tail Detachable Version) |
Recommended options:
Battery: 2 x 6S 27000mAh HED Li-ion Battery
Data and image link: 15km, 30km, 50km, 100km
Battery charger: PC1080, AC/DC dual, UP1200
Ground station: VTX20, VTX30, VTX-YH50
