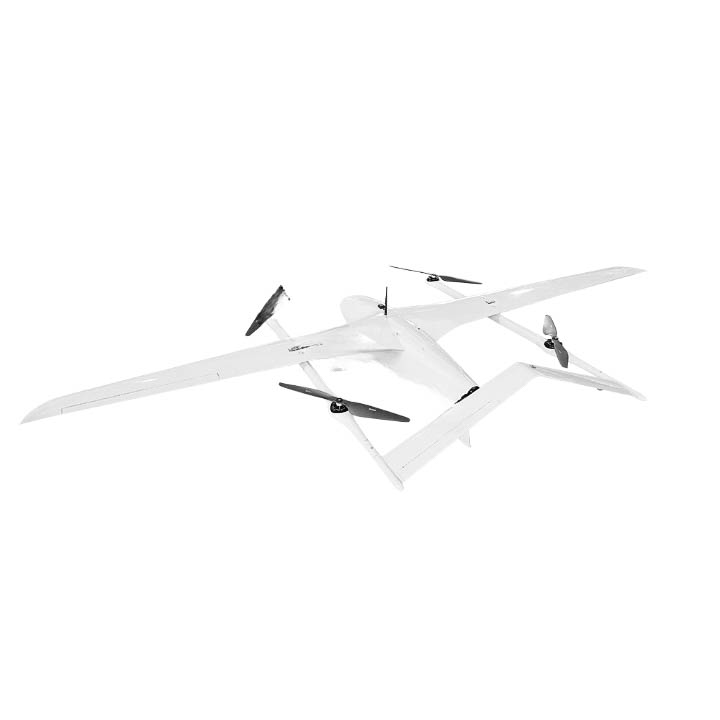

China Moneypro M400 Inverted V-tail Long flight time Electric VTOL 4hrs @ 5kg load

Ultra-efficient electric VTOL drone with inverted V-tail design delivers 4-hour flight time at full 5kg payload for mapping, delivery, and surveillance – redefining endurance without compromising agility.

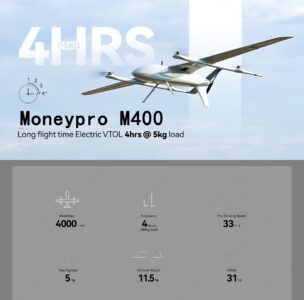

Core Specifications

Uncompromised Flight Dynamics:

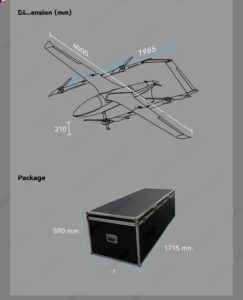

Wheelbase: 4,000mm (Max Efficiency)
Max Endurance: 4hrs @ 5kg Payload
Payload Capacity: 5kg | Empty Weight: 11.5kg
Cruising Speed: 33m/s (119km/h)
MTOW: 31kg (Optimized Power-to-Weight)

Benchmark Note: Outperforms all 30kg-class electric VTOLs in payload/endurance balance.

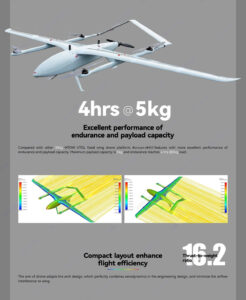

Aerodynamic Innovation

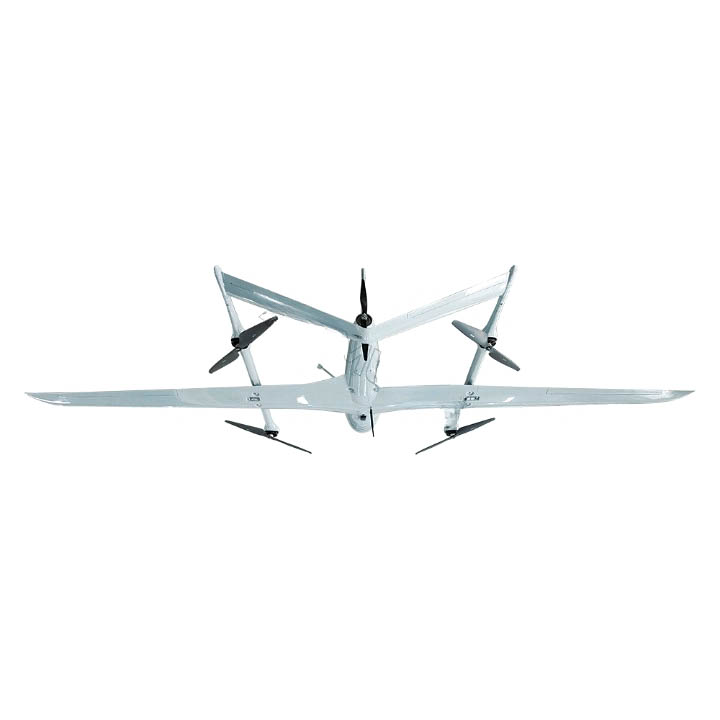

Inverted V-Tail Advantage:
✓ Arch-Arm Design: Minimizes wing turbulence, boosting flight stability
✓ Drag Reduction: 15% less energy consumption vs. conventional tails
✓ Compact Layout: Enhanced aerodynamic efficiency in crosswinds

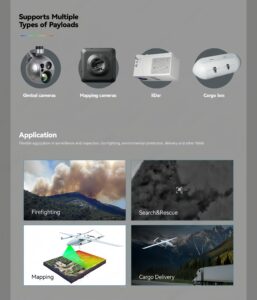

Mission-Ready Versatility
Swappable Payload Ecosystem:

- Optical/Thermal: Gimbal cameras for surveillance
- Mapping: LiDAR & aerial survey cameras
- Delivery: Weather-resistant cargo boxes (8L capacity)
- Sensors: Gas detectors, radiation monitors

Critical Applications

One Platform, Infinite Solutions:
→ Firefighting & Emergency Response
→ Precision Mapping (30% faster coverage)
→ Border/Site Surveillance
→ Medical & Supply Delivery
→ Environmental Monitoring

Operational Superiority
Engineered for Real-World Demands:

- Rapid Deployment: Field-assembly in <15 mins
- All-Weather Resilience: -20°C to 50°C operation
- Low OPEX: Electric propulsion = 60% lower cost vs. fuel hybrids
