China Moneypro MHT160 Heavy-lift Hexacopter Drone with 1600mm Wheelbase and 120min Flight Time

The MHT160 heavy-lift hexacopter drone stands out as a robust solution for demanding aerial missions, featuring a 1600mm wheelbase that delivers exceptional stability and load-bearing capacity. Engineered with a six-rotor configuration, it excels in heavy-lift scenarios—supporting diverse payloads for applications like industrial hoisting, aerial photography with professional gear, emergency rescue, and precision agriculture. What sets it apart is its impressive 120-minute flight time, a game-changer for long-duration operations that eliminate frequent battery swaps or refueling. Built with high-strength, lightweight materials, it balances durability with maneuverability, adapting seamlessly to complex environments from urban construction sites to remote rural areas. Equipped with advanced flight control systems for precise navigation and hover stability, the MHT160 offers reliable performance to meet the rigorous needs of professional heavy-lift drone operations.

Categories: ,
Description

Product Detail

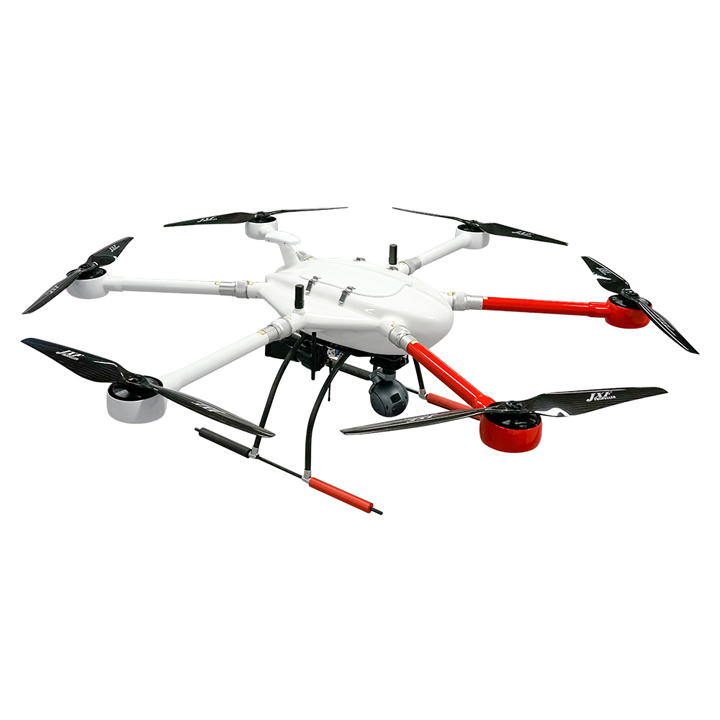

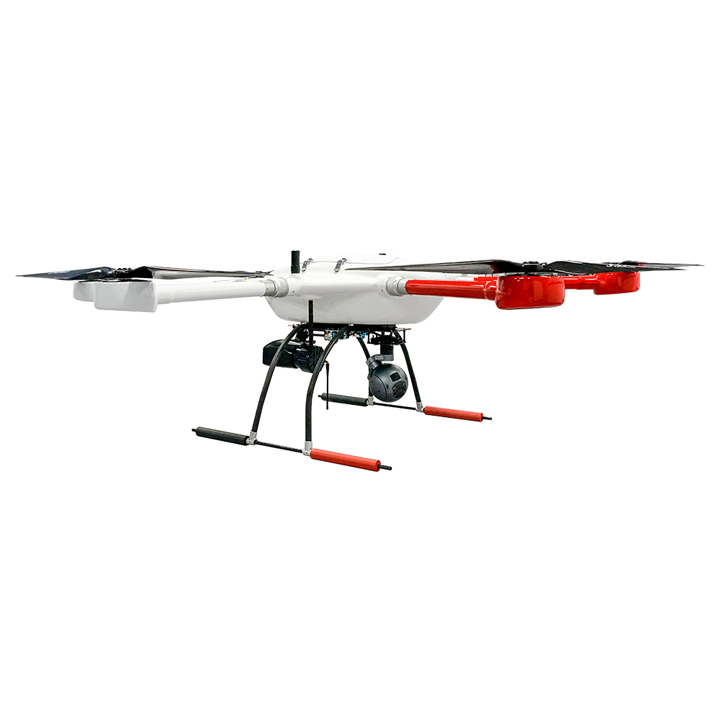

The Viewpro MHT160 is a heavy-lift hexacopter drone designed for extended endurance, standing as a powerhouse among multi-rotor systems despite its compact 1600mm wheelbase. Boasting an impressive payload capacity of up to 10kg, it delivers exceptional long-endurance performance: 90 minutes with a 1kg payload, 120 minutes with no payload, and even 60 minutes when carrying 5kg. This capability enables users to double work efficiency while prioritizing human safety.

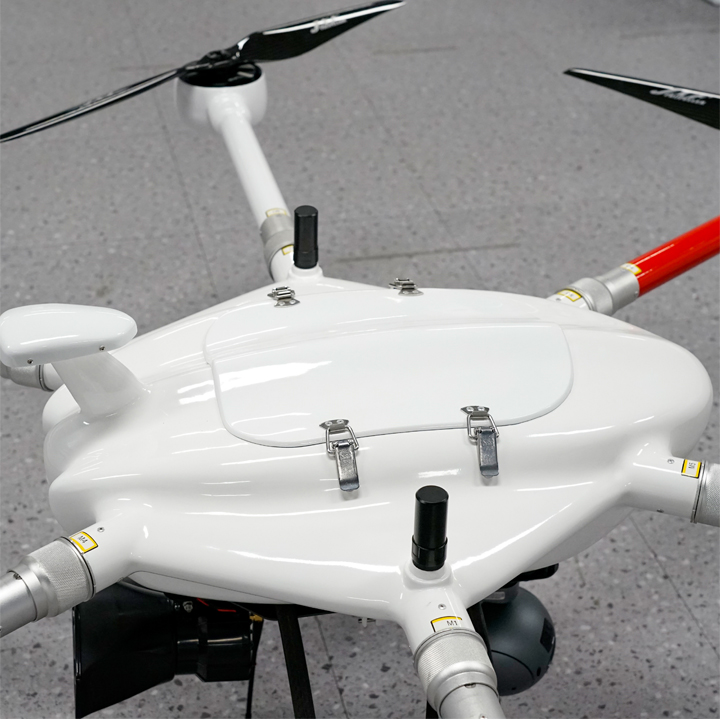

Constructed from carbon fiber, the drone’s main body features an integrated, sleek design that balances aesthetic appeal with robust reliability. Its spacious equipment and battery compartment can house 4 x 6S 30000mAh semi-solid HED lithium-ion batteries—providing the energy for extended flights—while still accommodating additional devices as needed, such as data links, video transmitter air units, AI-equipped PCs, or repeaters. The innovative upward-bent arm design ensures ultra-stable flight even with heavy payloads in extreme conditions, complemented by a wind resistance rating of up to 12m/s. Detachable arms simplify transportation and maintenance, allowing for setup in just 5 minutes.
The MHT160 is outfitted with a high-efficiency propulsion system, including T-motor motors, JXF propellers, and T-motor ESCs, which guarantee its heavy-lift capabilities and safe operation. A key advantage of its hexacopter configuration is enhanced safety: each motor delivers 9kg of lifting power, ensuring continued flight even if one motor fails.
Compatible with a range of payloads—such as Viewpro gimbal cameras, mapping cameras, and LiDARs—the MHT160 excels across diverse applications, including public safety surveillance, first response, search and rescue, power line and pipeline inspection, mapping, and delivery. It serves critical roles in industrial and commercial sectors like defense & security, forest firefighting, energy, surveying, and transportation.
China Moneypro MHT160 Heavy-lift Hexacopter Drone with 1600mm Wheelbase and 120min Flight Time
China Moneypro MHT160 Heavy-lift Hexacopter Drone with 1600mm Wheelbase and 120min Flight Time
China Moneypro MHT160 Heavy-lift Hexacopter Drone with 1600mm Wheelbase and 120min Flight Time
China Moneypro MHT160 Heavy-lift Hexacopter Drone with 1600mm Wheelbase and 120min Flight Time
China Moneypro MHT160 Heavy-lift Hexacopter Drone with 1600mm Wheelbase and 120min Flight Time
China Moneypro MHT160 Heavy-lift Hexacopter Drone with 1600mm Wheelbase and 120min Flight Time
China Moneypro MHT160 Heavy-lift Hexacopter Drone with 1600mm Wheelbase and 120min Flight Time
China Moneypro MHT160 Heavy-lift Hexacopter Drone with 1600mm Wheelbase and 120min Flight Time
China Moneypro MHT160 Heavy-lift Hexacopter Drone with 1600mm Wheelbase and 120min Flight Time
China Moneypro MHT160 Heavy-lift Hexacopter Drone with 1600mm Wheelbase and 120min Flight Time China Moneypro MHT160 Heavy-lift Hexacopter Drone with 1600mm Wheelbase and 120min Flight Time China Moneypro MHT160 Heavy-lift Hexacopter Drone with 1600mm Wheelbase and 120min Flight Time

Packing List for Different Versions:

Version CUAV V5+ RTF Cube Orange RTF CUAV X7 RTF
Flight Controller CUAV V5+ Cube Orange CUAV X7
GPS NEO V2 GNSS Here 3 GNSS NEO V2 Pro GNSS
Drone Frame √ √ √
VTOL Motor 4pcs 4pcs 4pcs
VTOL ESC 4pcs 4pcs 4pcs
VTOL Propeller 2Pairs 2Pairs 2Pairs
RC&Ground Station 1x FT24 14Channels RC 1x M15 Mini HD handheld ground station 1x M15 Mini HD handheld ground station
Video Transmitter / / /
Battery / / /
Battery Charger / / /
Carrying Case √ √ √
Assembling, tuning and flight test service √ √ √

Specifications

Model No. MHT160
Type Hexacopter
Color White and red as default (Support customization)
Expanded Dimension 1962×1962×620mm
Folded Dimension 600×600×620mm
Wheelbase 1600mm
Belly to Ground 500 mm
Material Carbon fiber
Airframe Weight 11.5 kgs including propulsion system
MTOW 25kg
Max Payload 10kg
Suggested Load 1.2kg (Q30TIR Lite)
Flight Time 130min (without payload ), 60min (with 5kg payload)
Max Pitching Angle 35°(GPS mode), 45°(AIT mode)
Max Angular Velocity Pitching axis: 300°/s
Yaw axis: 120°/s
Max Flight Speed 20m/s
Max Ascending Speed Stabilize 11m/s, Loiter 7m/s
Max Descending Speed 3m/s
Max Flight Altitude 5000m
Max Wind Resistance 12m/s
Battery (Recommended) 4 * 6S 30000mAH HED Li-ion
Working Temperature -20℃~45℃
IP Grade IP44
Package Size 460*390*998*mm (for arms)
711*702*743mm (for body)
