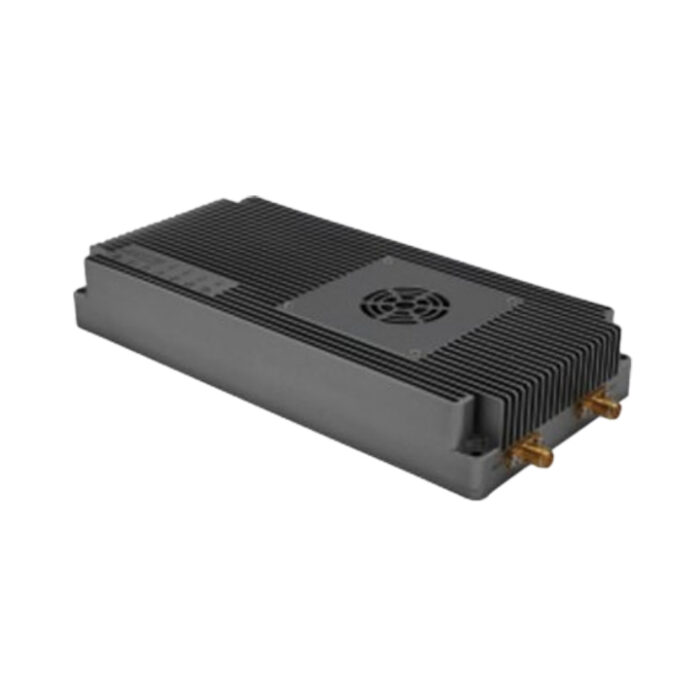

China moneypro MOP 10/20W

The China moneypro MOP 10/20W series represents the ultimate in long-range, high-power wireless connectivity, engineered for the most demanding professional applications.
With extraordinary transmit powers of 10W and 20W, these modules establish ultra-reliable communication links over distances exceeding 80km line-of-sight, ensuring unmatched performance even in challenging RF environments.
Featuring dual-band capability (1.4GHz and 5.8GHz), AES-256 encryption, and multiple industrial interfaces, the 10/20W series delivers robust, secure connectivity for mission-critical applications such as long-range UAV operations, industrial telemetry, and secure SCADA networks that require maximum range and reliability.
Category:
Description

Transmission Distance

  • 150KM/200KM

Product Feature

  • Background noise detection
  • Adaptive channel selection(ACS)
  • Long distance and large bandwidth transmission
  • AES256 encryption

Product Parameter

System parameter Technical index
Equipment type P40/P43
Working frequency 1350 – 1470MHz (customizable)
Radio frequency channel 2T2R
Output power 40dBm (10W) / 43dBm (20W)
Channel bandwidth 10MHz/20 MHz
Modulation mode QPSK, 16QAM
Maximum rate 15.7Mbps@10MHz (P2P); 26.4Mbps@20MHz (P2MP)
Communication encryption AES256
Transmission delay ≤10ms
Radio frequency interface SMA*2
Power interface XT30PW – M
Device interface Ethernet*2; TTL/RS232*2; RS422*1; SBUS*2/TTL*1
Power consumption Air unit≤66W; Ground unit≤15W (P40); Air unit≤90W; Ground unit≤15W (P43)
Dimension(L*W*H) 180mm*81mm*28mm
Weight 415g
Working voltage DC 22 – 30V; Typical: 28V@3A
Working temperature -40 – +65°C
