China moneypro MOP (X27)

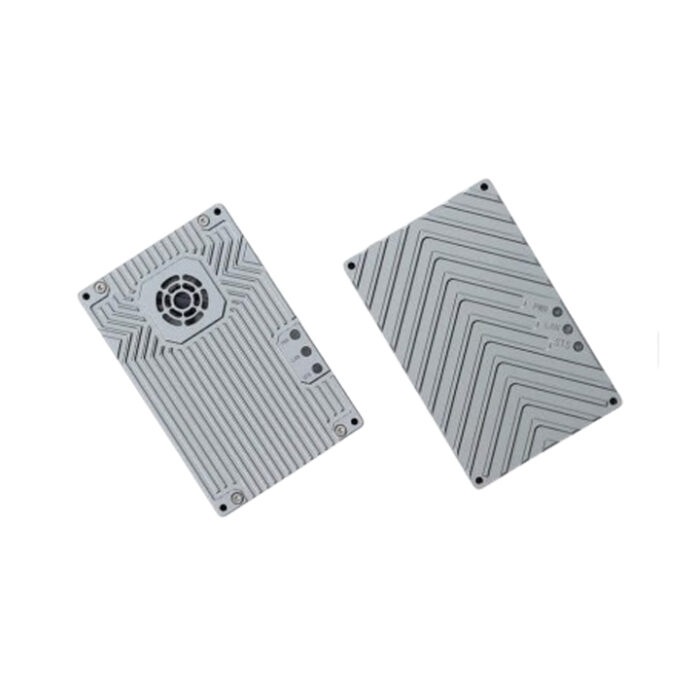

The China moneypro MOP (X27) is a compact, high-efficiency wireless communication module engineered for seamless, low-latency connectivity in unmanned systems (UAVs, UGVs) and industrial remote control scenarios. Operating on the 1.4GHz frequency band, it delivers stable signal transmission with anti-interference capabilities, ensuring reliable data and control signal transfer even in complex outdoor or industrial environments.
With a lightweight design (110g) and compact dimensions (93mm60mm13mm), it integrates easily into space-constrained devices, while its versatile interfaces (Ethernet1, RS2322/TTL2/SBUS2) support compatibility with various unmanned platforms. Boasting a wide operating temperature range (-40°C~+65°C) and low power consumption (≤10W), it maintains consistent performance in harsh conditions, making it a dependable choice for aerial inspection, industrial automation, and public safety operations.
Category:
Description

Transmission Distance

  • 20KM

Product Feature

  • Support integrated design
  • Support integrated networking

Product Parameter

System parameter

 Technical index
Equipment type X27
Working frequency 1350 – 1470MHz
Radio frequency channel 2T2R
Output power 27dBm (0.5W)
Channel bandwidth 10MHz/20MHz
Modulation mode QPSK、16QAM
Maximum rate 16.8Mbps@10MHz (P2P); 26.4Mbps@20MHz (P2MP, Optional)
Communication encryption AES256
Transmission delay ≤10ms
Radio frequency interface MMCX*2
Device interface Ethernet*1; TTL/RS232*2
Power consumption ≤10W
Dimension(L*W*H)

Weight

 93mm*60mm*13mm; 110g; X27-Regularstyle

93mm*60mm*19mm; 148g; X27-With a fan
Charging voltage DC9-26V, Typical: +12V@1A
Working temperature

-40~+65°C
