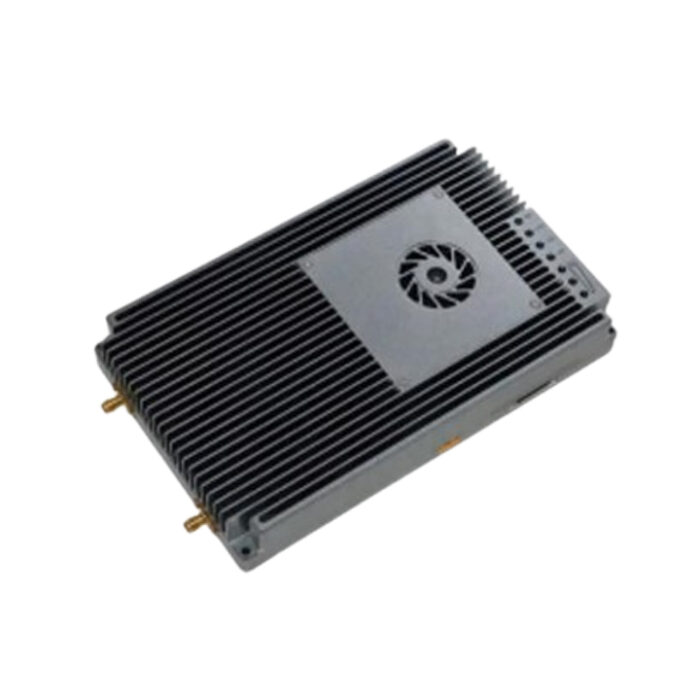

China moneypro MOP 40W

China moneypro MOP 40W is a high – performance wireless communication device. With a working frequency of 1350 – 1470MHz (customizable), 2T2R radio frequency channel, and 40dBm (10W) output power, it enables fast data transmission with a maximum rate up to 15.7Mbps@10MHz (P2P) and ensures secure communication via AES256 encryption.

Category:
Description

Transmission Distance

  • 300KM

Product Feature

  • Background noise detection
  • Adaptive channel selection(ACS)
  • Long distance and large bandwidth transmission Automatic repeater function

Product Parameter

System parameter Technical index
Equipment type P46
Working frequency 1350 – 1470MHz
Radio frequency channel 1T2R
Output power 46dBm (40W)
Channel bandwidth 10MHz
Modulation mode QPSK, 16QAM
Maximum rate 13Mbps@16QAM3/4
Communication encryption AES256
Transmission delay ≤10ms
Radio frequency interface SMA*2
Power interface XT30PW – M
Device interface Ethernet*2; TTL/RS232*2; RS422*1; SBUS*2/TTL*1
Power consumption Air unit≤200W; Ground unit≤25W
Dimension(L*W*H) 189mm*110mm*30mm
Weight 642g
Working voltage DC 22 – 30V; Typical: 28V@8A
Working temperature -20 – + 55°C
