China moneypro MOP 2W(MINI)

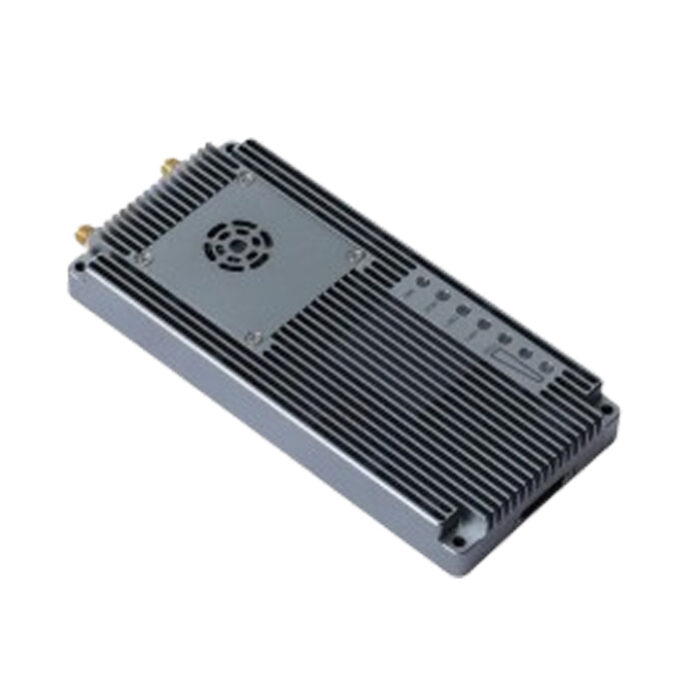

China moneypro MOP 2W

China moneypro MOP 2W is a high-performance, long-range wireless module designed for professional IoT and M2M applications. With its powerful 2W transmit power and exceptional receiver sensitivity, it delivers reliable communication up to 2km line-of-sight, ensuring robust connectivity even in challenging environments. The module features AES-128 encryption for secure data transmission, low power consumption for battery-operated devices, and flexible integration through UART interface with AT command support. Its wide operating temperature range (-40°C to +85°C) and SMA antenna connector make it suitable for various industrial applications, including remote monitoring, smart agriculture, security systems, and wireless sensor networks.

Category:
Description

Transmission Distance

  • 30/60KM

Product Feature

  • Real-time background noise detection
  • Support automatic frequency selection
  • Simultaneous use of multiple devices Automatic

Product Parameter

System parameter Technical index
Equipment type P33
Working frequency 1.4GHz, 1.7GHz, 2.1-2.4GHz; (customizable)
Radio frequency channel 2T2R
Output power 33dBm (2W)
Channel bandwidth 10MHz/20MHz
Networking node Support 64 nodes
Modulation mode QPSK, 16QAM
Maximum rate 16.8Mbps @ 10MHz (P2P); 26.4Mbps @ 20MHz (P2MP)
Communication encryption AES256
Transmission delay ≤10ms
Radio frequency interface SMA*2
Device interface Ethernet*2, TTL/RS232*2, RS422*1, SBUS*2/TTL*1
Power consumption Air unit≤25W; Ground unit≤10W
Dimension(L*W*H) 148mm*65mm*17mm
Weight 208g
Working voltage DC 9 – 26V; Typical: 12V@3A
Working temperature -40 – +85°C
