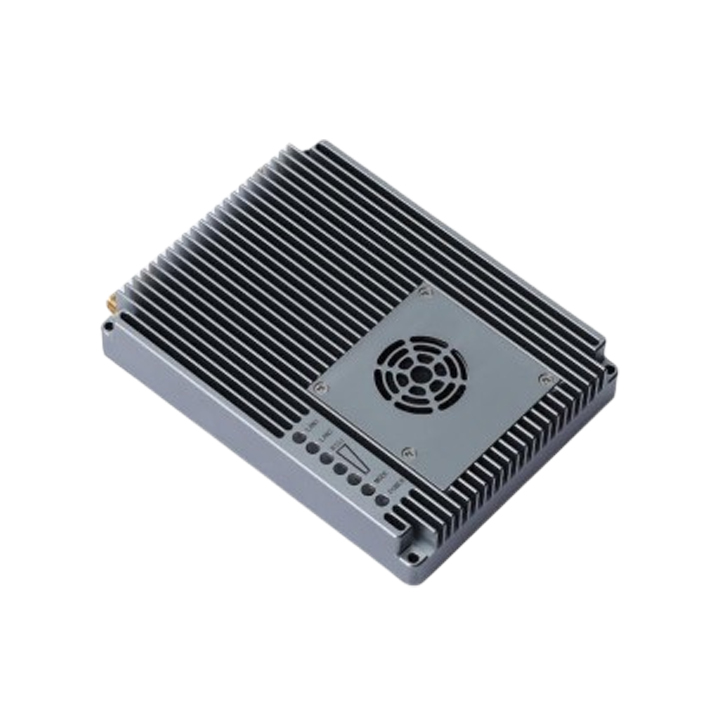

MYD-MESH Series: CM33

A versatile and high-reliability wireless mesh node under the MYD-MESH Series, the CM33 is engineered to deliver stable, high-bandwidth connectivity for mission-critical scenarios. It integrates advanced adaptive mesh technology, enabling self-organizing and self-healing networks that automatically optimize signal paths—ensuring uninterrupted communication even when nodes are added, removed, or disrupted. Designed for both indoor and outdoor deployments (such as industrial campuses, smart cities, and emergency response sites), the CM33 supports low-latency data transfer, high-definition real-time video streaming, and multi-device concurrent access. Its compact, durable housing offers resistance to dust, water, and extreme temperatures, while its plug-and-play setup and compatibility with existing MYD-MESH systems simplify integration. Whether powering daily industrial communications or emergency on-site networks, the CM33 stands as a dependable solution for seamless, scalable wireless connectivity.

Category: UAV Data link/Video transmission
Share:
  • Description
Description

Product Feature

  • Support Mesh networking
  • Support 100Mbps transmission
  • Support carrier aggregation

Product Parameter

System parameter Technical index
Equipment type CM30 – IG4 – 4N2H
Working frequency 1420 – 1530
Radio frequency channel 2T2R (MIMO)
Output power 2W*2
Transmission distance 50KM+ (LOS)
Channel bandwidth 3/5/10/20MHz
Networking capability 4N2H
Modulation mode QPSK; 16QAM; 64QAM
Maximum rate 100Mbps@20MHz
Communication encryption ZUC; SNOW3G; AES128
Transmission delay Single hop unidirectional ≤15ms
Radio frequency interface SMA*2
Power interface XT30PW – M
Device interface Ethernet*2, RS232/TTL*1, RS232/TTL*1/CAN/RS485
Power consumption ≤15W
Dimension(L*W*H) 119mm*89mm*21.5mm
Weight 280g
Charging voltage DC9 – 15V; Typical: +12V@3A
Working temperature -20~+65°C
