Product Features
Default outputs include:
- Position information
- Navigation angles (heading, roll, pitch)
- 3-axis velocity
- 3-axis angular velocity
- 3-axis linear acceleration
- Time information
- System temperature
Applications
- Vehicle navigation and guidance
- UAV and unmanned surface vehicle (USV) navigation
- Aerospace and terrestrial surveying
- Stabilized platform attitude reference
- Guidance and control systems
- Defense and industrial positioning tasks
Performance Specifications
| Parameter | Specification |
| Integrated Navigation Accuracy (Single Point) | |
| Alignment Time | ≤ 5 min |
| Heading | ≤ 0.025° (1σ) |
| Attitude | ≤ 0.015° (1σ) |
| Horizontal Position | ≤ 1.5 m (RMS) |
| Altitude | ≤ 3 m (RMS) |
| Velocity | ≤ 0.05 m/s (RMS) |
| Integrated Navigation Accuracy (RTK) | |
| Alignment Time | ≤ 5 min |
| Heading | ≤ 0.015° (1σ) |
| Attitude | ≤ 0.01° (1σ) |
| Horizontal Position | 1 cm + 1 ppm (1σ) |
| Altitude | 2 cm + 1 ppm (1σ) |
| Velocity | ≤ 0.01 m/s (1σ) |
| Attitude Hold | ≤ 0.2° (1 h) |
| Heading Hold | ≤ 0.05°/h |
| GNSS Denied Navigation | |
| Horizontal Position Error | ≤ 500 m (CEP, 10 min), ≤ 1200 m (CEP, 15 min) |
| Gyroscope | |
| Measurement Range | –400°/s ~ +400°/s |
| Bias Stability (1σ, 10s) | ≤ 0.1°/h |
| Bias Repeatability (1σ) | ≤ 0.1°/h |
| Accelerometer | |
| Measurement Range | –10 g ~ +10 g |
| Bias Stability (1σ, 1s) | ≤ 0.3 mg |
| Bias Repeatability (1σ) | ≤ 0.3 mg |
| System | |
| Data Update Rate | ≤ 200 Hz |
| Interfaces | RS422 / RS232 |
| Power Supply | 18 V ~ 36 V |
| Power Consumption | < 24 W |
| Weight | < 2.6 kg |

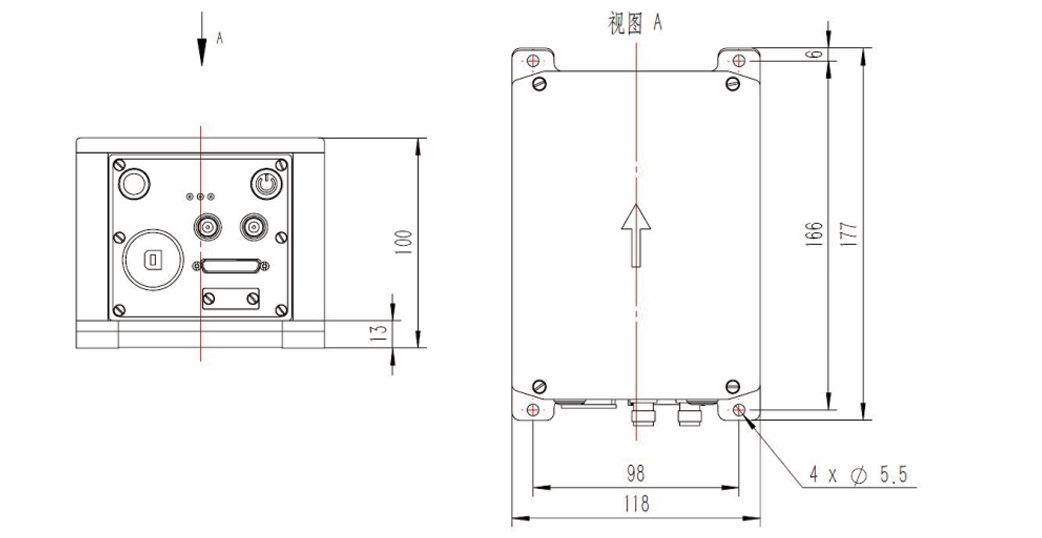

| Dimensions | 177 mm × 118 mm × 100 mm |
| Color | Black |
| Operating Temperature | –40 °C ~ +60 °C |
| Storage Temperature | –55 °C ~ +85 °C |
Key Benefits
- Centimeter-level RTK positioning accuracywith integrated GNSS + FOG data fusion
- High-precision attitude measurement (≤ 0.01°) for aerospace and surveying tasks
- Strong GNSS-denied performance, ensuring navigation continuity in challenging environments
- Multi-interface support (RS422/RS232) and wide input voltage (18–36 V) for flexible integration
- Rugged design with stable operation in extreme temperatures (–40 °C to +60 °C)
Q1: What makes China Moneypro MP-GI023A different from other integrated navigation systems?
A1: China Moneypro MP-GI023A fiber optic integrated navigation system stands out with its centimeter-level RTK positioning accuracy and multi-sensor fusion technology. Unlike lightweight MEMS-based solutions, it leverages fiber optic gyroscope (FOG) technology for ultra-stable navigation, even in GNSS-denied environments.
Q2: How accurate is China Moneypro MP-GI023A with RTK enabled?
A2: With RTK corrections, China Moneypro MP-GI023A GNSS/INS system achieves:
- Heading accuracy ≤ 0.015° (1σ)
- Attitude accuracy ≤ 0.01° (1σ)
- Horizontal position accuracy 1 cm + 1 ppm
- Altitude accuracy 2 cm + 1 ppm
- Velocity accuracy ≤ 0.01 m/s
This level of accuracy makes it ideal for aerospace mapping, precision surveying, and defense-grade navigation.
Q3: Can China Moneypro MP-GI023A maintain reliable performance when GNSS signals are lost?
A3: Yes. In GNSS-denied conditions, China Moneypro MP-GI023A maintains robust performance:
- Horizontal position error ≤ 500 m (10 min)or ≤ 1200 m (15 min)
- Attitude hold ≤ 2° (1 h)
- Heading drift ≤ 05°/h
This ensures reliable navigation continuity for UAVs, vehicles, and maritime systemsduring GNSS outages.
Q4: What industries benefit the most from China Moneypro MP-GI023A?
A4: China Moneypro MP-GI023A is widely applied in:
- Aerospace and ground surveying(high-precision mapping, geodesy)
- Unmanned aerial vehicles (UAVs)for mission-critical navigation
- Vehicle and ship navigation systemsfor defense and industrial use
- Stabilized platformsrequiring continuous attitude reference
- Guidance and control systemswhere precision is mission-critical
Q5: What are the integration and system advantages of China Moneypro MP-GI023A?
A5: China Moneypro MP-GI023A navigation unit supports RS422/RS232 interfaces, a wide voltage input (18–36 V), and provides update rates up to 200 Hz. With its rugged housing, < 2.6 kg weight, and < 24 W power consumption, it integrates seamlessly into aerospace, defense, and industrial platforms requiring long-duration, high-reliability operation.
